Festo DC-70-25 ISO Cylinder
Gebraucht
Auf Lager1 EinheitVersandbereit
ISO Cylinder
The Festo DC-70-25 ISO Cylinder is a compact, double-acting pneumatic actuator with a 70 mm bore, 25 mm stroke, and G 1/4 connection, designed for precise industrial motion.1/4122570ActingActuatorAirAutomationbarboreCircularCompressedconnectionCylinderDC-70-25DoubleEndFestoframeGIndustrialISOmalemmPneumaticPressureRODStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

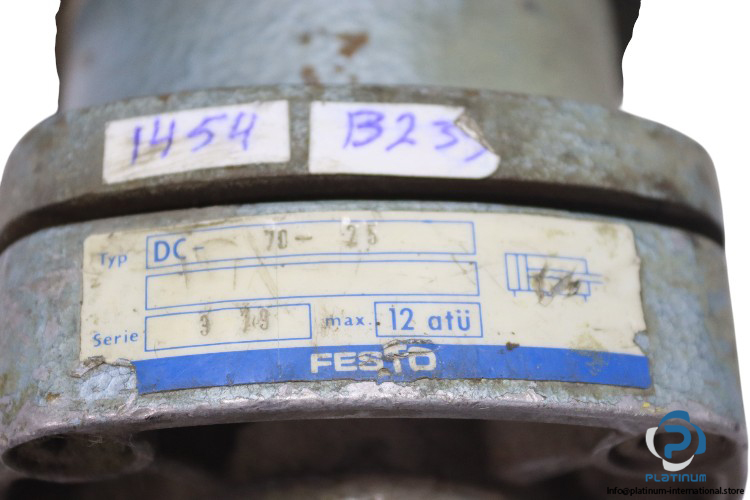

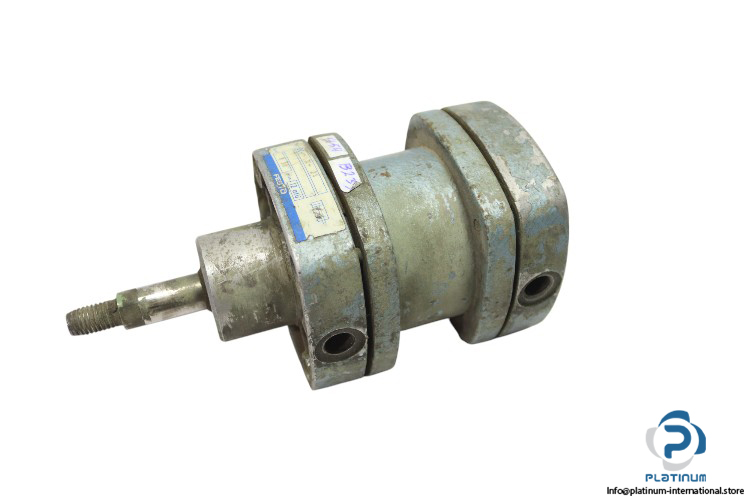

Festo DC-70-25 ISO Cylinder
The Festo DC7025 ISO Cylinder is a reliable pneumatic actuator designed for precision and performance in compressed air applications. With a compact circular shape and high-pressure capacity, it is ideal for industrial environments requiring consistent and controlled motion.
Manufacturer: FESTO
Type: ISO Cylinder
Model: DC-70-25
| Media | Compressed Air |
| Bore Diameter | 70 mm |
| Stroke | 25 mm |
| Bore x Stroke | 70 x 25 mm |
| Rod Diameter | 16 mm |
| Frame Dimensions | 92 x 145 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Circular |
| Rod Direction | One Side |
