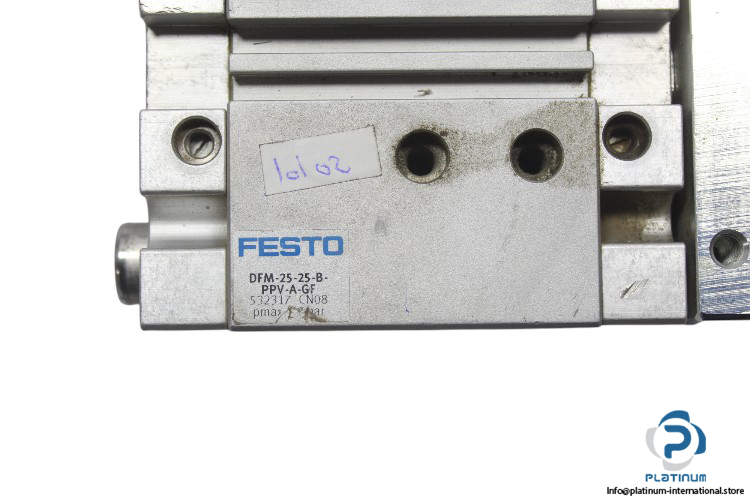

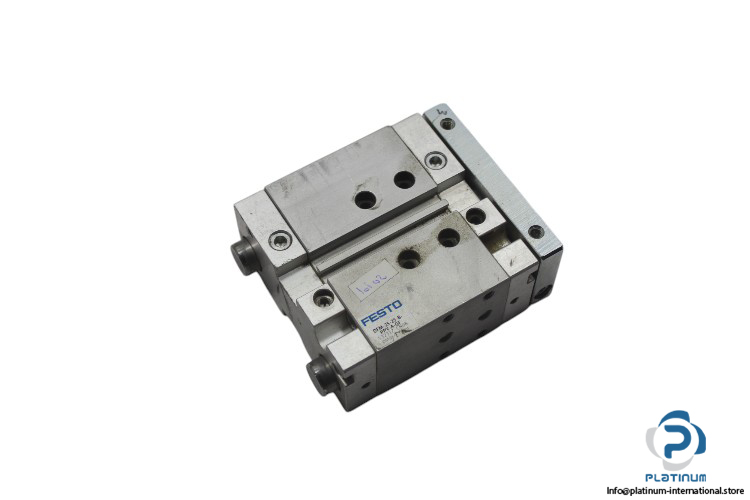

Festo DFM-25-25-B-PPV-A-GF Guided Actuator
Gebraucht
Auf Lager1 EinheitVersandbereit
Guided Actuator
FESTO DFM-25-25-B-PPV-A-GF is a precision-engineered guided actuator featuring a 25 mm stroke length, sliding guide, and double-acting operation. Designed for industrial applications requiring stability, accuracy, and high durability, it operates at pressures up to 10 bar and temperatures up to 120°C.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
FESTO DFM-25-25-B-PPV-A-GF Guided Actuator
The FESTO DFM-25-25-B-PPV-A-GF Guided Actuator is a precision-engineered pneumatic actuator designed for applications requiring high accuracy and durability. Featuring a sliding guide for stable movement, this double-acting actuator provides consistent performance in demanding industrial environments. It is built with heat-resistant seals for operation up to 120°C and includes elastic cushioning rings for smooth motion control.
- Manufacturer: FESTO
- Type: Guided Actuator
- Model: DFM-25-25-B-PPV-A-GF
- Part No.: 532317
Technical Specifications
- Stroke Length: 25 mm
- Piston Diameter: 25 mm
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Guide: Sliding guide
- Structural Design: Guide
- Position Sensing: For proximity sensing
- Variant: Heat-resistant seals max. 120°C
- Pneumatic Connection: G1/8
- Housing Material: Wrought aluminum alloy
- Ambient Temperature: -20 … 120 °C
