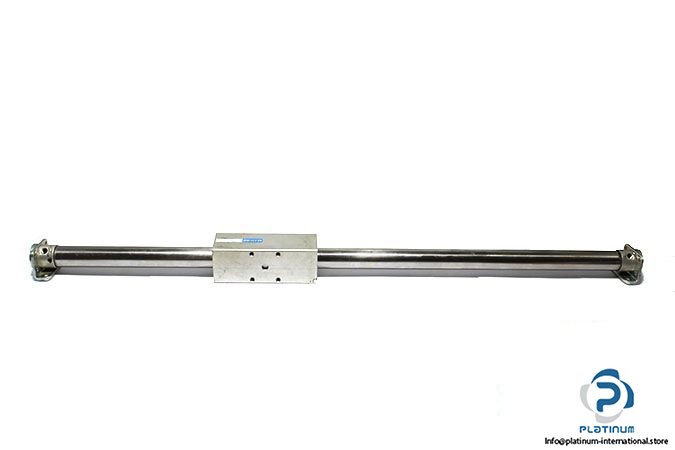

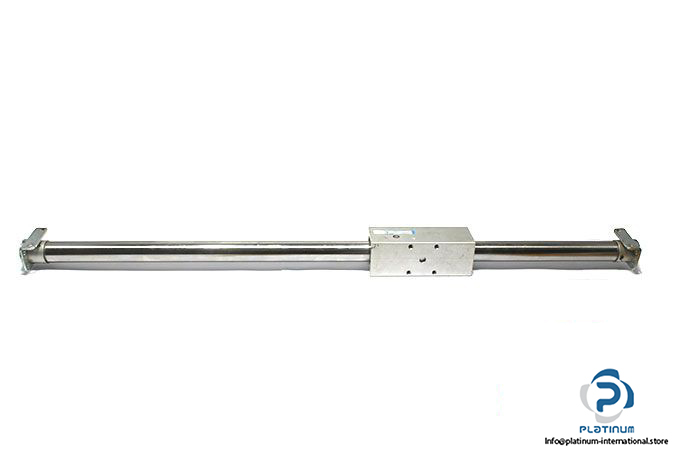

Festo DGO-40-900-PPV-A-B Linear Actuator

Manufacturer: Festo

Type: Linear Actuator

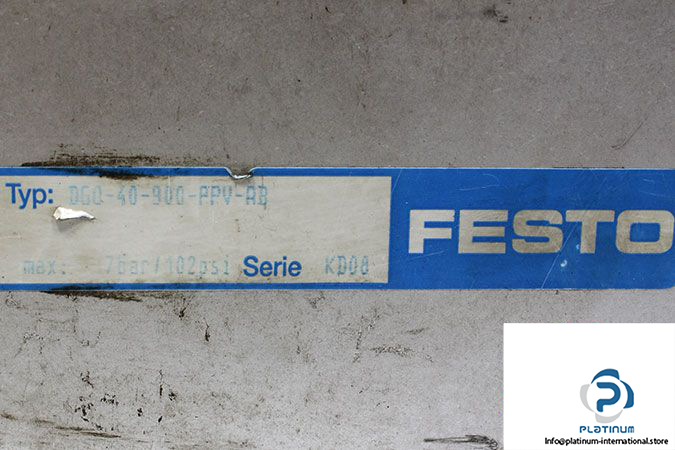

Model: DGO-40-900-PPV-A-B

Part No: 15226

Piston Diameter: 40 mm

Cushioning: Adjustable at Both Ends, Pneumatic Cushioning

Stroke: 900 mm

Cushioning Length: 23 mm

Operating Pressure: 1.3…7 bar

Theoretical Force At 6 Bar, Retracting: 754 N

Theoretical Force At 6 Bar, Advancing: 754 N

Ambient Temperature: -20…60 °C

Pneumatic Connection: G¼”

Mode of Operation: Double-Acting

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Materials: Aluminum

Weight: 5 kg
