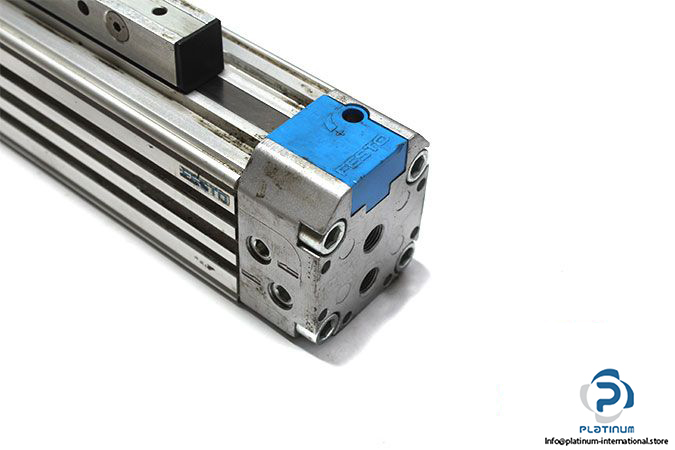

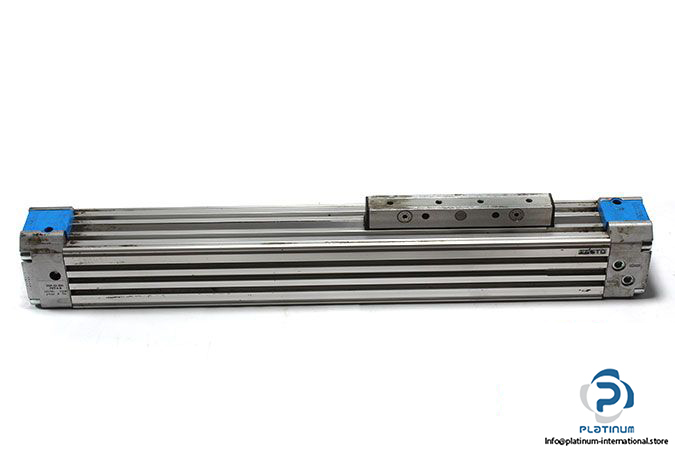

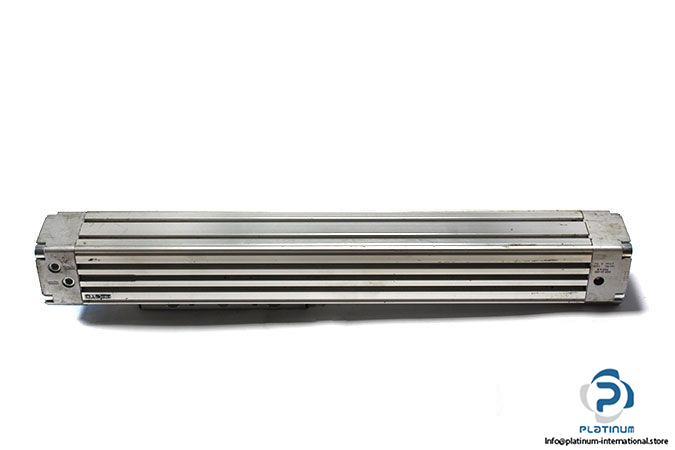

Festo DGP-32-200-PPV-A-B Linear Actuator

Manufacturer: FESTO

Type: Linear Actuator

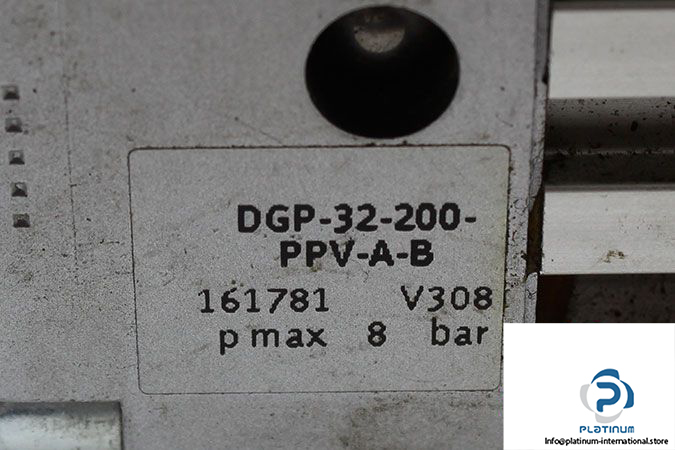

Model: DGP-32-200-PPV-A-B

Part No: 161781

Alternative Model: DGC-K-32-200

Alternative Part No: 1312502

Materials

• Cover: Die-Cast Aluminum
• Seals: NBR TPE-U(PU)

Piston Diameter: 32 mm

Cushioning: Adjustable at Both Ends

Stroke: 200 mm

Cushioning Length: 20 mm

Operating Pressure: 2…8 bar

Theoretical Force At 6 Bar, Retracting: 483 N

Theoretical Force At 6 Bar, Advancing: 483 N

Ambient Temperature: -10…60 °C

Pneumatic Connection: G1/8

Constructional Design: Pneumatic Linear Drive with Slide

Mode of Operation: Double-Acting

Guide: Recirculating Ball Bearing Guide

Position Sensing: For Proximity Sensor

Magnet: with Magnet

Type of Mounting: with Accessories

Weight: 2.38 kg
