Festo DGP-32-380-PPV-A-B Linear Drive
Neu
Auf Lager1 EinheitVersandbereit
Linear Drive
Pneumatic FESTO linear drive with 32 mm piston diameter, 380 mm stroke, recirculating ball bearing guide, and adjustable cushioning for precise industrial motion control.32ActingActuatorAutomationBallbearingCylinderDGP-32-380DoubleDriveFestoGuideIndustrialLinearmmMotionPneumaticSystem
Gebraucht
Auf Lager
Dieses Produkt ist auch als gebraucht erhältlich
Gebrauchte Version anzeigen →
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

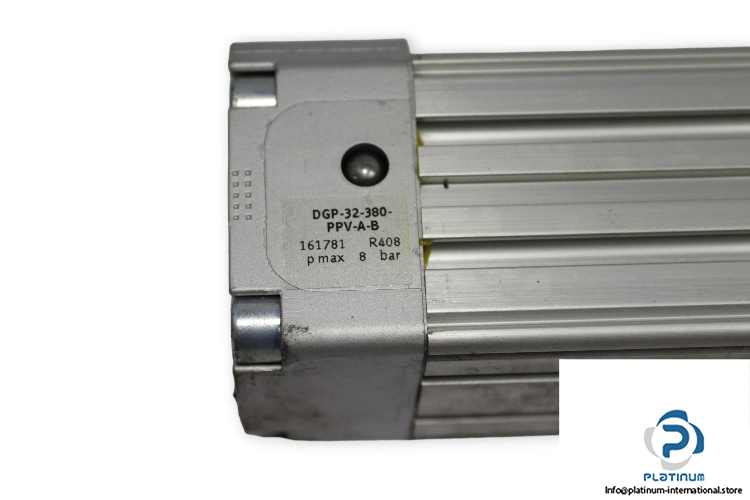

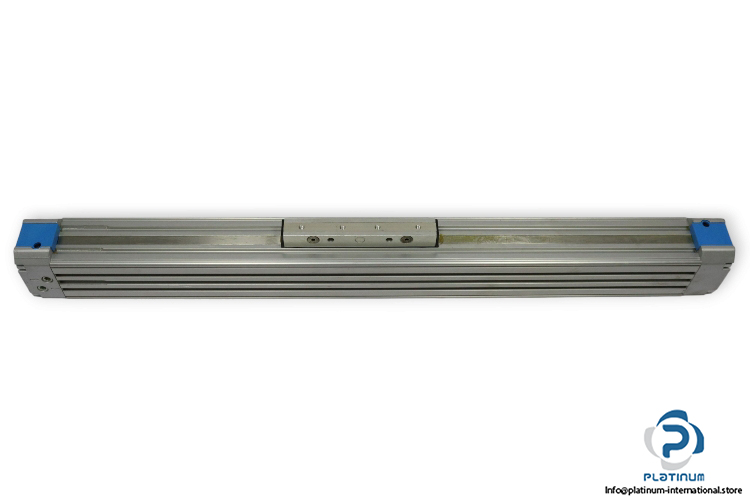

FESTO DGP-32-380-PPV-A-B Linear Drive
The FESTO DGP-32-380-PPV-A-B is a pneumatic linear drive designed for precise linear motion and reliable performance in industrial automation applications. It features a robust construction with recirculating ball bearing guidance and adjustable cushioning for smooth operation.
Manufacturer: FESTO
Type: Linear Drive
Model: DGP-32-380-PPV-A-B
Part No.: 161781
| Material - Cover | Aluminum |
| Material - Seals | NBR TPE-U (PU) |
| Piston Diameter | 32 mm |
| Cushioning | Adjustable At Both Ends |
| Stroke | 380 mm |
| Operating Pressure | 2 / 8 bar |
| Ambient Temperature | -10 / 60 °C |
| Pneumatic Connection | G1/8 |
| Constructional Design | Pneumatic Linear Drive With Slide |
| Mode Of Operation | Double-Acting |
| Guide | Recirculating Ball Bearing Guide |
| Position Sensing | For Proximity Sensor |
