Festo DGPL-32-400-PPV-A-KF-B Linear Actuator
Gebraucht
Auf Lager3 EinheitenVersandbereit
Linear Actuator
The Festo DGPL-32-400-PPVA-KFB linear actuator offers adjustable cushioning, a 400 mm stroke, and 483 N force for dynamic motion control in industrial systems. It features an anodized aluminum housing and recirculating ball bearing guide for precision performance.400ActuatorAdjustableBallbearingControlCushioningdouble-actingFestoIndustrialLinearmmMotionPneumaticRecirculatingStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

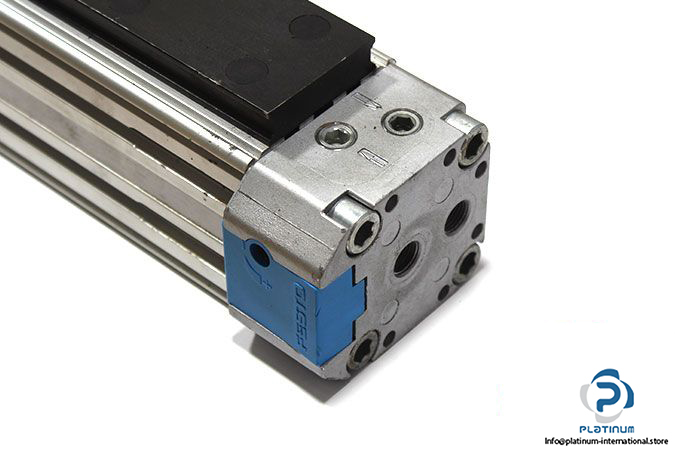

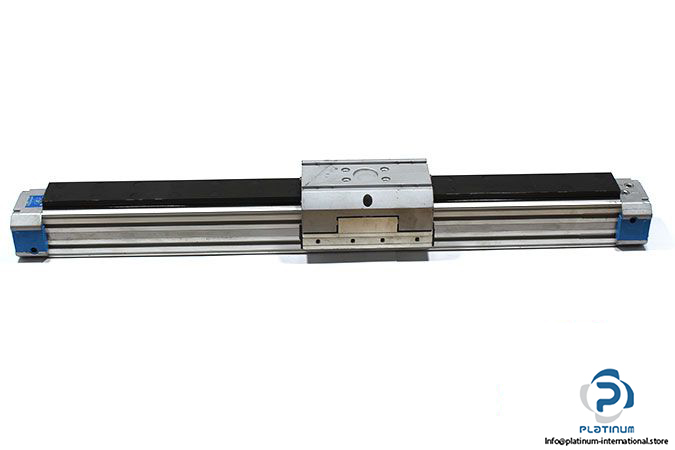

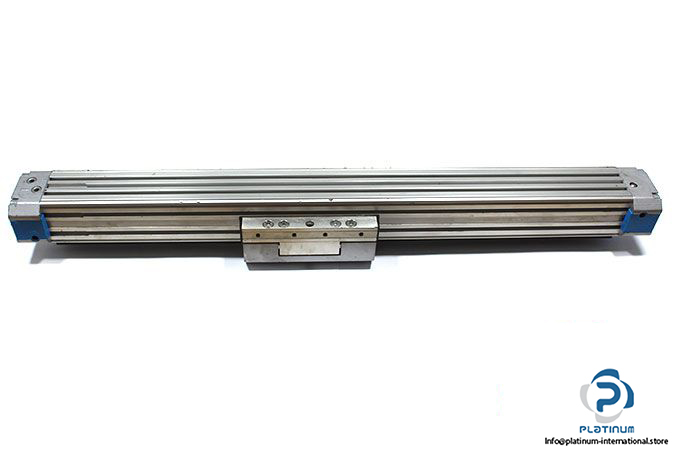

Festo DGPL-32-400-PPVA-KFB Linear Actuator
The Festo DGPL-32-400-PPVA-KFB linear actuator is designed for high precision and durability in industrial applications. With an anodized aluminum housing, adjustable cushioning, and a robust recirculating ball bearing guide, this double-acting actuator is ideal for dynamic and reliable motion control.
Manufacturer: FESTO
Type: Linear Actuator

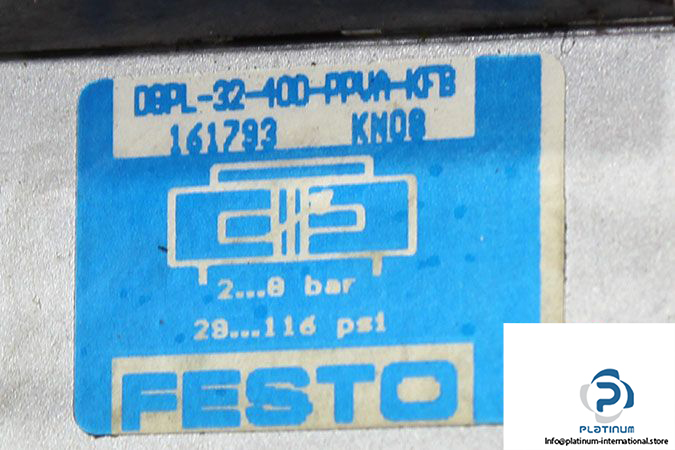

Model: DGPL-32-400-PPVA-KFB
Part No.: 161793
Technical Data:
- Housing Material: Aluminum Anodized
- Piston Diameter: 32 mm
- Cushioning: Adjustable at Both Ends
- Stroke: 400 mm
- Cushioning Length: 20 mm
- Operating Pressure: 2 / 8 bar
- Theoretical Force at 6 Bar (Retracting): 483 N
- Theoretical Force at 6 Bar (Advancing): 483 N
- Ambient Temperature: -10 / 60 °C
- Pneumatic Connection: G1/8
- Mode of Operation: Double-Acting
- Guide: Recirculating Ball Bearing Guide
- Position Sensing: For Proximity Sensor
