Festo DGPL-40-600-PPV-A-B-KF-SH Linear Actuator

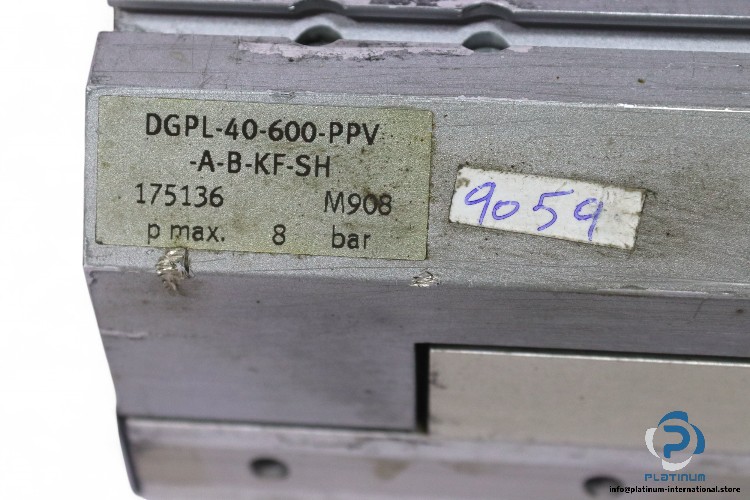

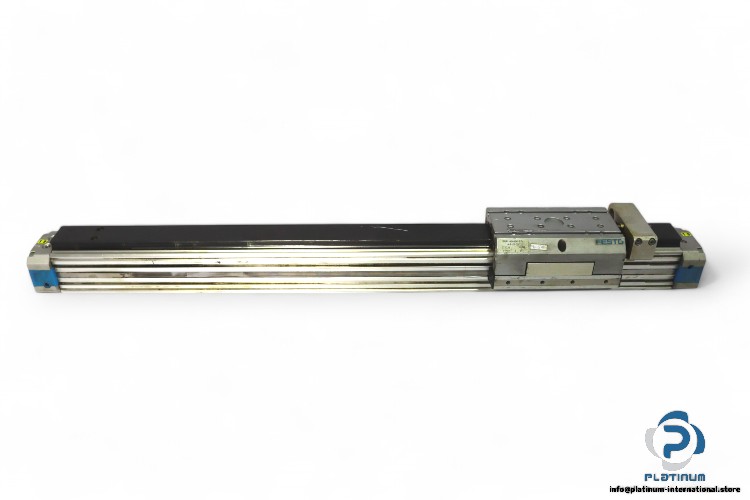

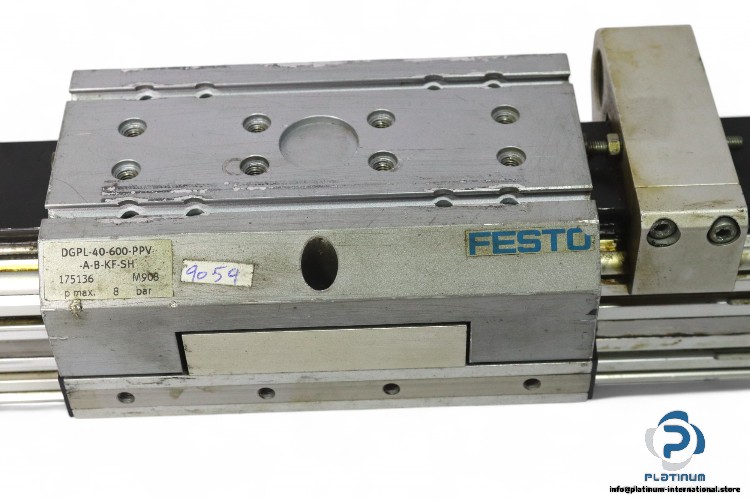

Linear Actuator (Model: DGPL-40-600-PPV-A-B-KF-SH)

Manufacturer: FESTO

Type: Linear Actuator

Model: DGPL-40-600-PPV-A-B-KF-SH

Part No.: 175136

Stroke Length: 600 mm

Piston Diameter: 40 mm

Operating Medium: Compressed air

Cushioning: Pneumatic cushioning, adjustable at both ends

Guide: Sliding guide

Position Sensing: For proximity sensor

Mode of Operation: Double-acting

Housing Material: Aluminum

Max. Operating Pressure: 8 bar

Ambient Temperature: -10°C / +60°C

Pneumatic Connection: G1/4
