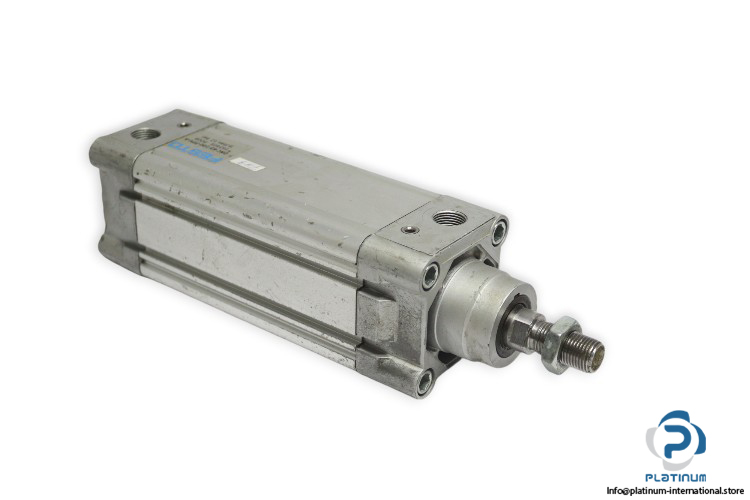

Manufacturer: Festo
Type: ISO Cylinder

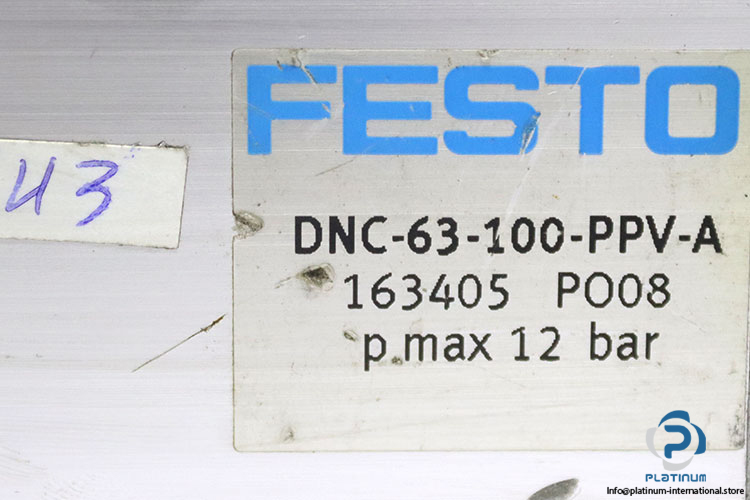

Model: DNC63100PPVA
Part. No: 163405
Media: Compressed Air
Stroke (mm): 100
Bore diameter (mm): 63
BorexStroke (mm): 63×100
Rod diameter (mm): 20
Fram Dimensions (mm): 75×260
Maximum pressure (bar): 12
Pneumatic connection: G3/8
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
| Preis | Auf Anfrage |
| Lager | Auf Anfrage verfügbar |
| Kategorie | ISO Cylinder |
| Zustand | Gebraucht |
| SKU | 1046224 |
Manufacturer: Festo
Type: ISO Cylinder
Model: DNC63100PPVA
Part. No: 163405
| Weight | 2,5 kg |
| Condition | Used |
| Type of Product | ISO Cylinder |
| Stroke Size [mm] | 100 |
| Connection | G3/8 |
| Bore x Stroke | 63x100 |
| Media | Compressed Air |
| Mode of Operation | Double |
| Piston Rod End | Male |
| Rod Diameter [mm] | 20 |
| Shelf No. | 241028 |
| Bore Diameter [mm] | 63 |
| Part No. | 163405 |
