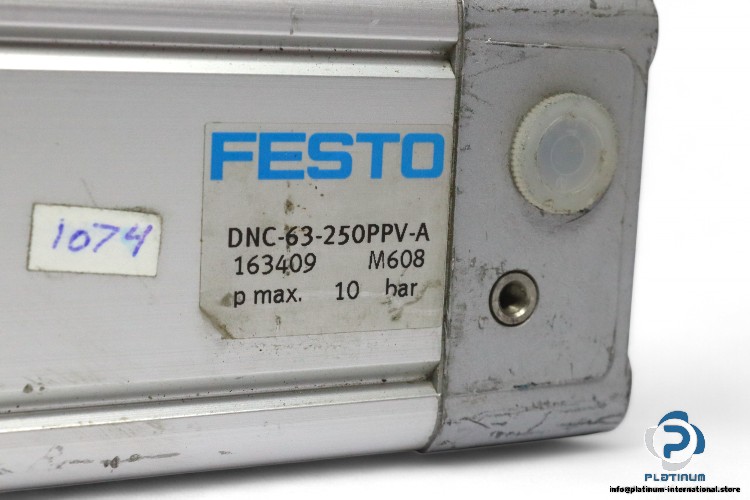

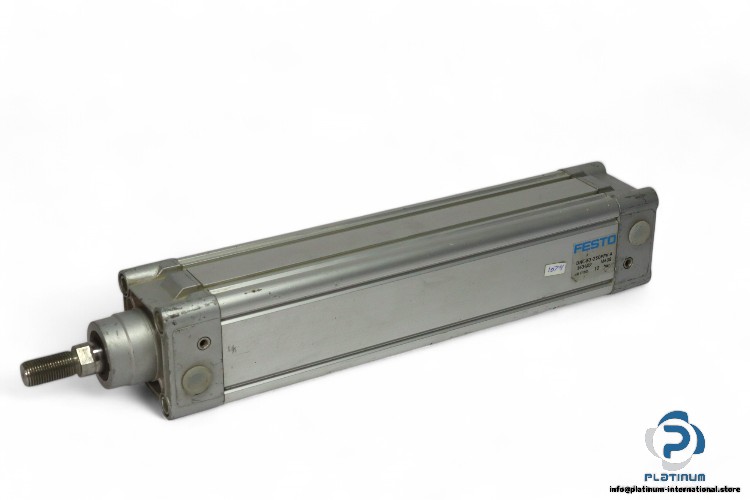

Festo DNC-63-250PPV-A ISO Cylinder

FESTO DNC-63-250PPV-A ISO CYLINDER

The FESTO DNC-63-250PPV-A ISO Cylinder is designed for reliable performance in industrial pneumatic applications. With a 63 mm bore diameter and 250 mm stroke, it offers high precision and efficiency. The square shape, male piston rod end, and pneumatic connection ensure seamless integration into systems requiring compressed air.

Manufacturer: FESTO

Type: ISO CYLINDER

Model: DNC-63-250PPV-A

Part No.: 163409

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 63 mm
• Stroke: 250 mm
• Bore X Stroke: 63×250 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 75X400 mm
• Pneumatic Connection: G3/8
• Max Pressure: 12 bar
• Mode of Operation: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
