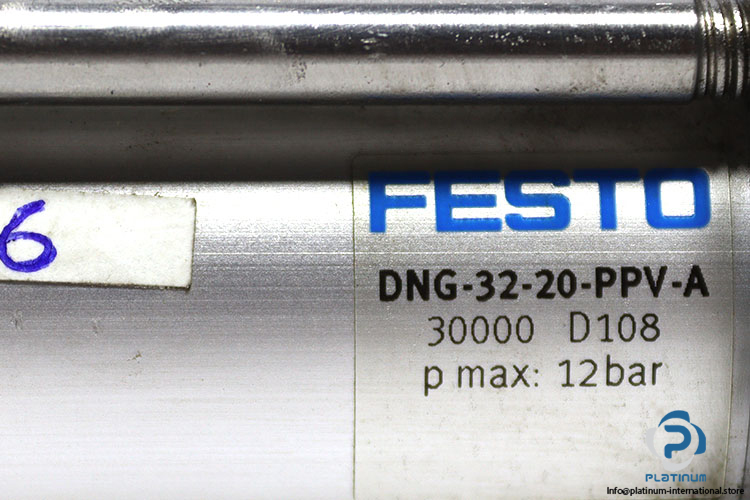

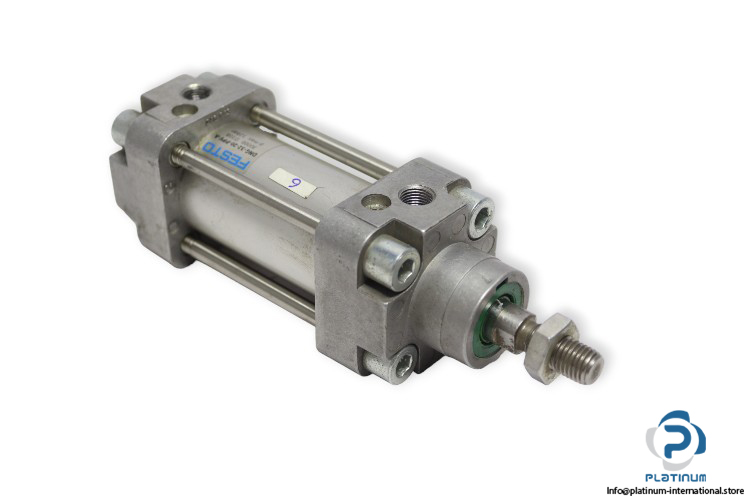

Name: FESTO DNG-32-20-PPV-A ISO CYLINDER
SKU: 1045506
Availability: LimitedAvailability

Manufacturer: Festo
Type: ISO Cylinder
Model: DNG3220PPVA

Media: Compressed Air
Stroke (mm): 20
Bore diameter (mm): 32
BorexStroke (mm): 32×20
Rod diameter (mm): 12
Fram Dimensions(mm) : 48×135
Operating pressure (bar): 0.6-12
Mode of operation: Double
Pneumatic connection: 1/8
Piston rod end: Male
Shape: Square
Rod Direction: One Side

Spezifikation	Wert
Weight	0,63 kg
Condition	Used
Bore Diameter [mm]	32
Type of Product	ISO Cylinder
Stroke Size [mm]	20
Bore x Stroke	32x20

Preis	Auf Anfrage
Lager	1 Auf Lager
Kategorie	ISO Cylinder
Zustand	Gebraucht
SKU	1045506

Weight	0,63 kg
Condition	Used
Bore Diameter [mm]	32
Type of Product	ISO Cylinder
Stroke Size [mm]	20
Bore x Stroke	32x20

Festo DNG-32-20-PPV-A ISO Cylinder
