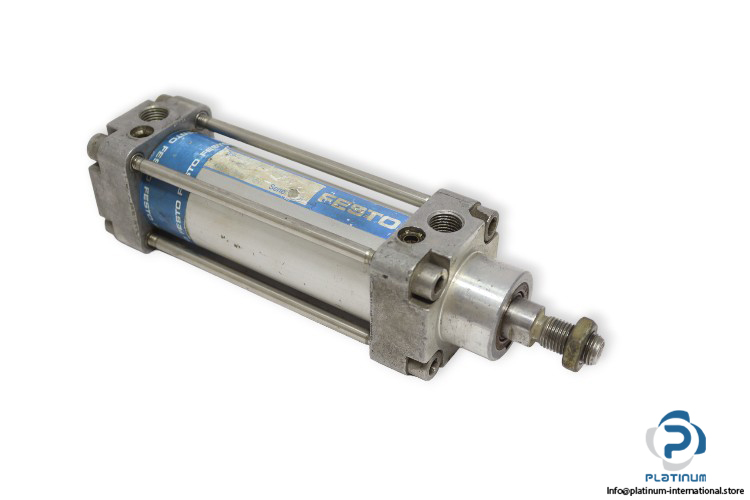

Festo DNN-40-60-PPV-A ISO Cylinder

Manufacturer: Festo
Type: ISO Cylinder
Model: DNN4060PPVA
Part. No: 10294


Media: Compressed Air
Stroke (mm): 60
Bore diameter (mm): 40
BorexStroke (mm): 40×60
Rod diameter (mm): 16
Fram Dimensions (mm): 192×54
Maximum pressure (bar): 12
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
