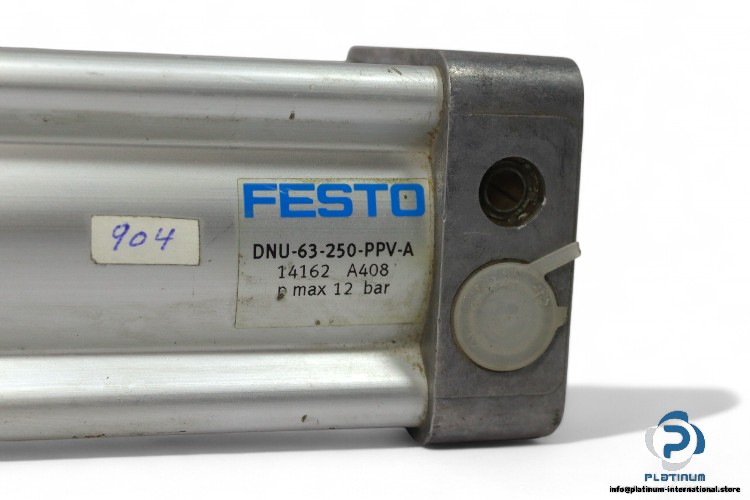

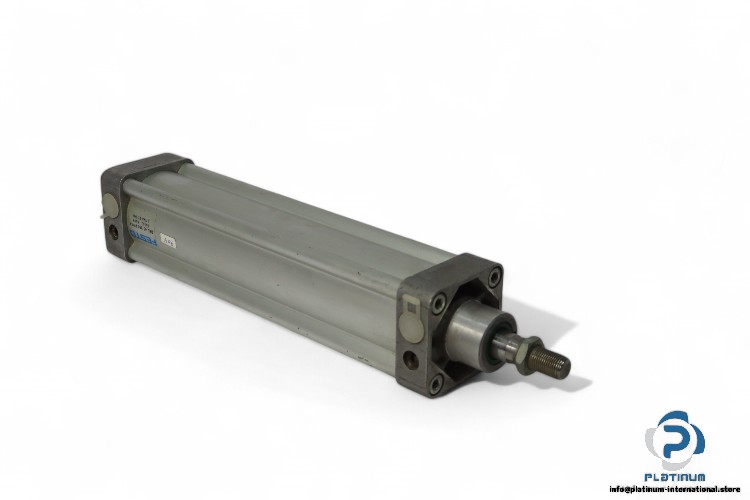

Name: FESTO DNU-63-250-PPV-A ISO CYLINDER
SKU: 1051066
Availability: LimitedAvailability

Manufacturer: FESTO
Type: ISO Cylinder
Model: DNU-63-250-PPV-A
Part No.: 14162

Media: Compressed Air
Bore Diameter: 63 mm
Stroke: 250 mm
Bore X Stroke: 63×250 mm
Rod Diameter: 20 mm
Fram Dimensions: 80X400 mm
Pneumatic Connection: G3/8
Max Pressure: 12 bar
Mode of Operation: Double
Piston Rod End: Male
Shape: Square
Rod Direction: One Sid

Spezifikation	Wert
Weight	3,22 kg
Condition	Used
Type of Product	ISO Cylinder
Connection	G3/8
Bore Size [mm]	63
Stroke Size [mm]	250
Shelf No.	241230
Part No.	14162

Preis	Auf Anfrage
Lager	1 Auf Lager
Kategorie	ISO Cylinder
Zustand	Gebraucht
SKU	1051066

Weight	3,22 kg
Condition	Used
Type of Product	ISO Cylinder
Connection	G3/8
Bore Size [mm]	63
Stroke Size [mm]	250
Shelf No.	241230
Part No.	14162

Festo DNU-63-250-PPV-A ISO Cylinder
