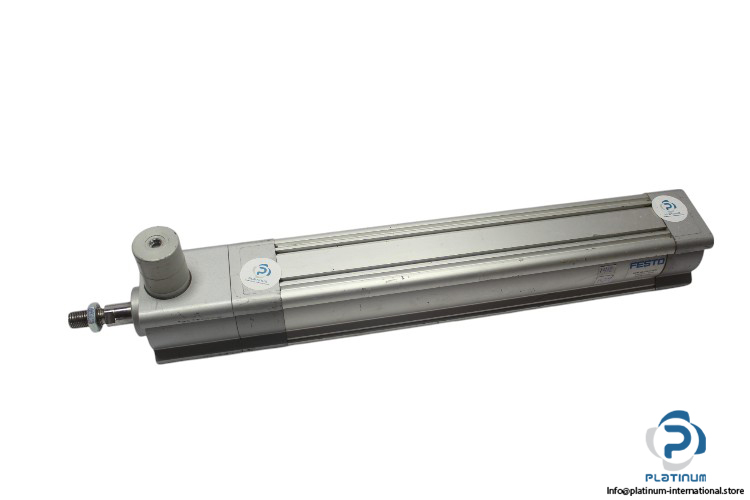

Festo DSBC-63-320-C-PPSA ISO Cylinder
Gebraucht
Auf Lager2 EinheitenVersandbereit
ISO Cylinder with Brake
FESTO DSBC-63-320-C-PPSA is a high-performance double-acting ISO cylinder with a 320 mm stroke and 63 mm piston diameter. It features adjustable pneumatic cushioning, a durable aluminum barrel, and operates at a maximum pressure of 10 bar. Equipped with a FESTO KP-20-2000 clamping cartridge for secure holding applications.32063ActuatorBrakecartridgeClampingCushioningCylindCylinderdouble-actingFestoHigh-TemperatureIndustrialISOKP-20-2000mmPistonPneumaticStrokeWith
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
ISO Cylinder with Brake
FESTO DSBC-63-320-C-PPSA ISO Cylinder with Brake is a high-performance pneumatic actuator designed for precision motion control in industrial applications. Featuring a double-acting mode of operation, multiple cushioning options, and a durable aluminum alloy construction, this cylinder ensures smooth and efficient operation with enhanced reliability.
- Manufacturer: FESTO
- Type: ISO Cylinder with Brake

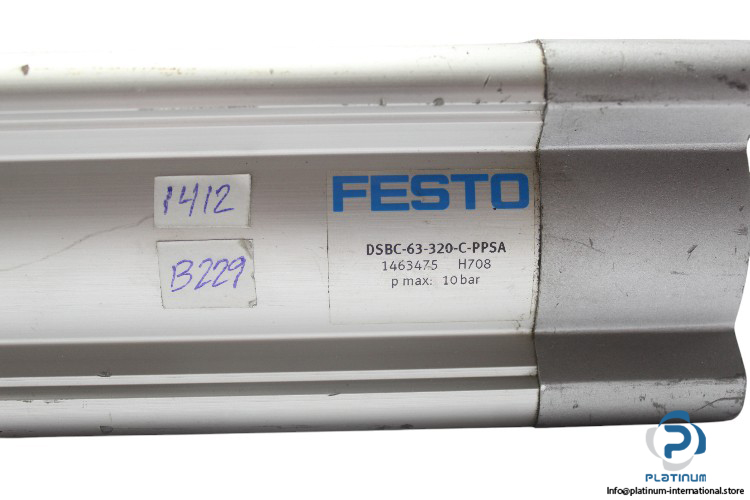

- Model: DSBC-63-320-C-PPSA
- Part No.: 1463475
Technical Specifications
- Stroke Length: 320 mm
- Piston Diameter: 63 mm
- Fluid: Air
- Cushioning:
- Elastic cushioning rings/pads at both ends
- Self-adjusting pneumatic end-position cushioning
- Pneumatic cushioning, adjustable at both ends
- Position Sensing: For proximity sensor
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double Acting
- Material of Cylinder Barrel: Wrought aluminum alloy, smooth-anodized
- Pneumatic Connection: G3/8
- Ambient Temperature: -40 °C … 150 °C
Attached Components

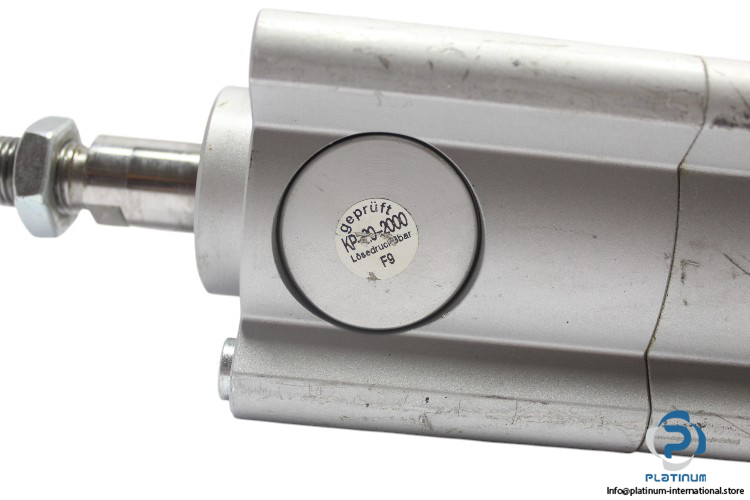

- Clamping Cartridge: FESTO KP-20-2000
- Round Material to be Clamped: 20 mm
- Operating Medium: Compressed air
- Static Holding Force: 2000 N
- Material Housing: Aluminium, Anodized
