Festo DSW-32-40 PPV-A Round Cylinder

Name: FESTO DSW-32-40 PPV-A ROUND CYLINDER
SKU: 1081901
Availability: LimitedAvailability

festo-DSW-32-40-PPV-A-round-cylinder-(used)

festo-DSW-32-40-PPV-A-round-cylinder-(used)-1

Gebraucht

Auf Lager1 EinheitVersandbereit

Round Cylinder

Festo DSW-32-40PPV-A pneumatic round cylinder with 40 mm stroke, 32 mm piston diameter, and double-acting action. Built for reliable operation in industrial automation.

SKU

1081901

Kategorie

Pneumatic Actuators

Zustand

Gebraucht

32 40 Acting Actuator Air Automation Compressed Cylinder Double DSW-32-40PPV-A Festo G1/8 Industrial mm Piston Pneumatic Round Stroke

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

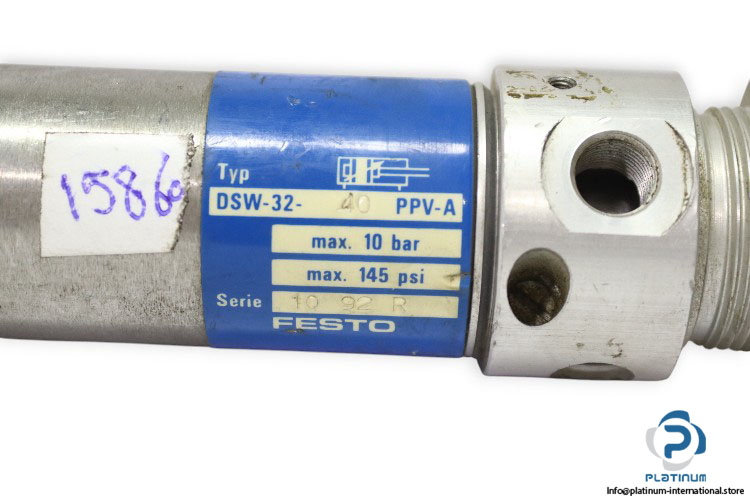

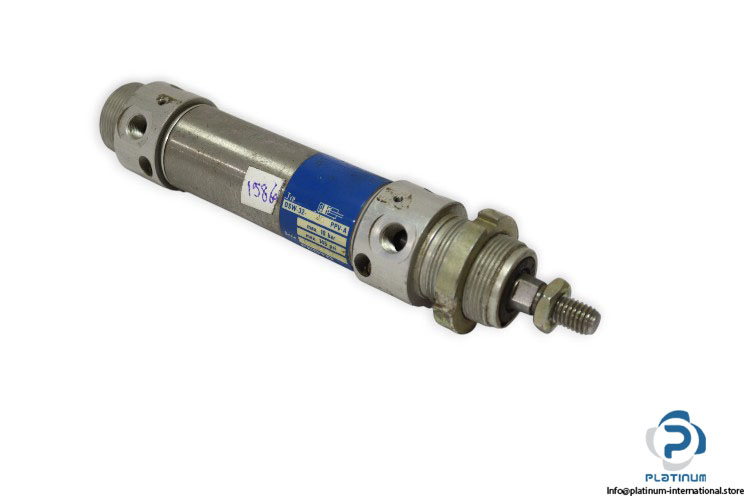

Festo Round Cylinder DSW-32-40PPV-A

The Festo DSW-32-40PPV-A Round Cylinder is a compact and reliable pneumatic actuator designed for precision motion in industrial automation systems. With a double-acting piston and circular housing, it delivers smooth and efficient performance under demanding conditions.

Manufacturer: Festo

Type: Round Cylinder

Model: DSW-32-40PPV-A

Series: 10 92 R

Stroke Length	40 mm
Piston Diameter	32 mm
Rod Diameter	12 mm
Pneumatic Connection	G1/8
Operating Medium	Compressed Air
Max. Operating Pressure	10 bar
Shape	Circular
Piston Action	Double-acting
Variants	Single-ended piston rod
Temperature Range	-20 to 80°C
