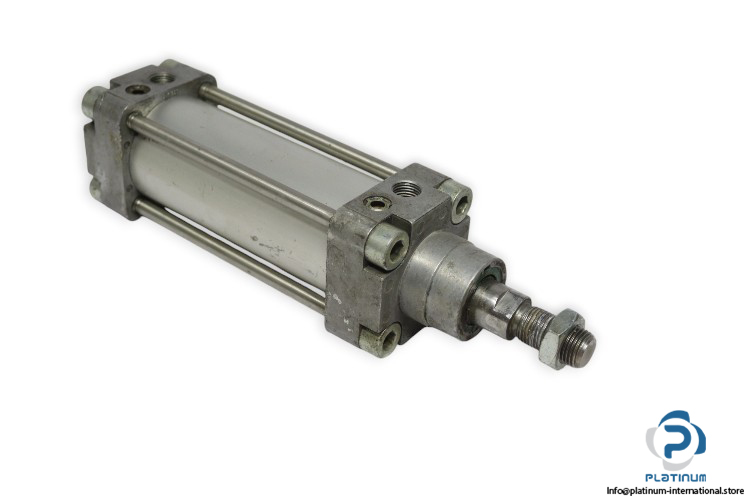

Manufacturer: Festo
Type: ISO Cylinder

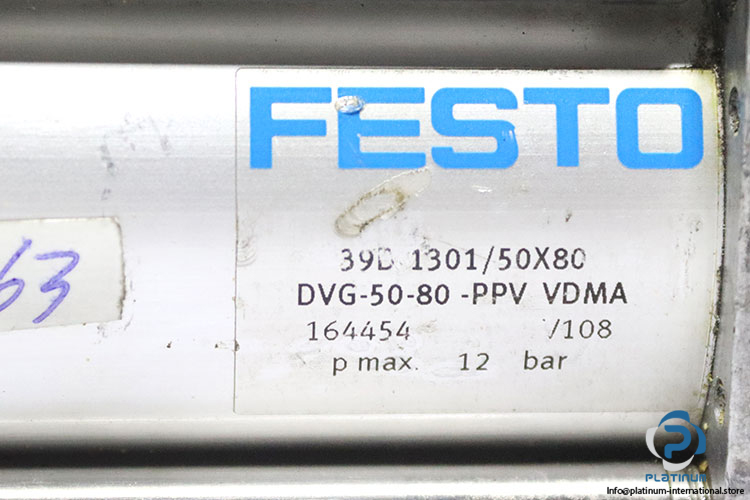

Model: DVG5080PPV
Part. No: 164454
Media: Compressed Air
Stroke (mm): 80
Bore diameter (mm): 50
BorexStroke (mm): 50×80
Rod diameter (mm): 20
Fram Dimensions (mm): 65×220
Maximum pressure (bar): 12
Pneumatic connection: G1/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
| Preis | Auf Anfrage |
| Lager | 1 Auf Lager |
| Kategorie | ISO Cylinder |
| Zustand | Gebraucht |
| SKU | 1046245 |
Manufacturer: Festo
Type: ISO Cylinder
Model: DVG5080PPV
Part. No: 164454
| Weight | 1,8 kg |
| Condition | Used |
| Bore Diameter [mm] | 50 |
| Type of Product | ISO Cylinder |
| Connection | G1/4 |
| Stroke Size [mm] | 80 |
| Bore x Stroke | 50x80 |
| Media | Compressed Air |
| Mode of Operation | Double |
| Piston Rod End | Male |
| Rod Diameter [mm] | 20 |
| Shelf No. | 241028 |
| Part No. | 164454 |
