Festo FEN-32-0100-KF Guide Unit
Gebraucht
Auf Lager1 EinheitVersandbereit
Guide Unit
The Festo FEN320100KF is a 32 mm diameter, 100 mm stroke guide unit with recirculating ball bearing guidance, ISO cylinder, and proximity sensor for precision automation applications.AutomationBallbearingComponentsCylinderDNU-32-100-PPV-AFEN320100KFFestoGuideIndustrialISOK102LinearProximityRecirculatingSensorSeriesSMTO-1-PS-S-LED-24CUnit
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

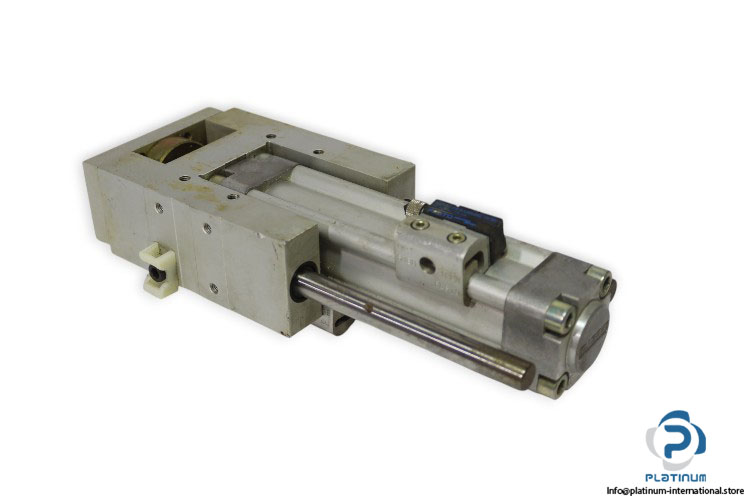

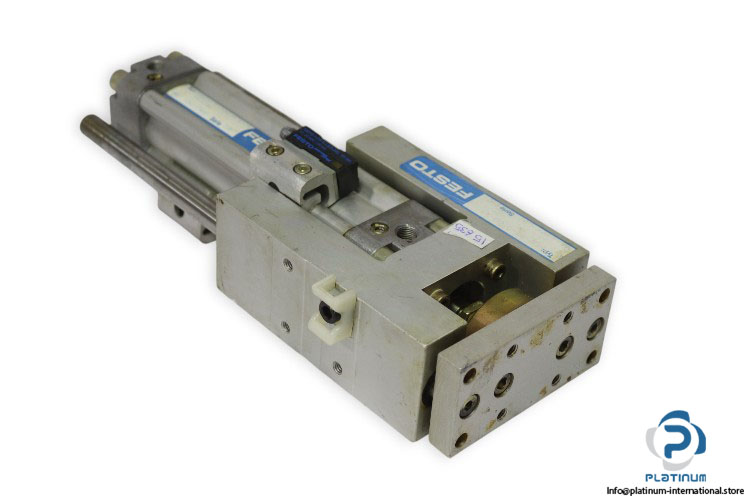

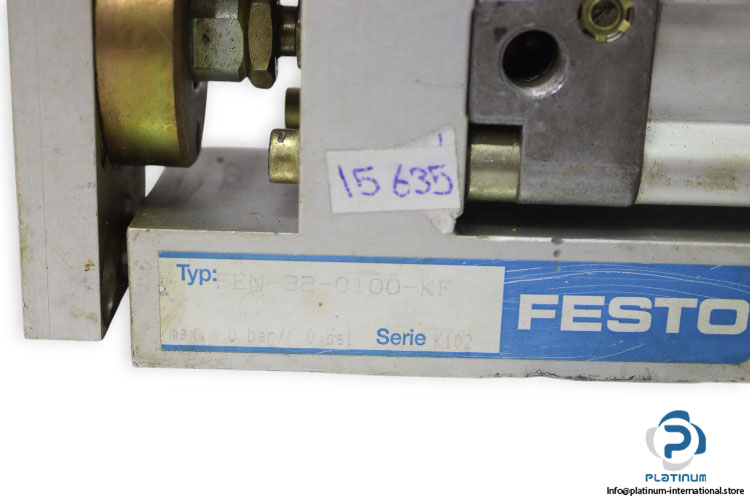

Festo Guide Unit FEN320100KF
The Festo FEN320100KF is a precision guide unit from the K102 series, designed for accurate linear guidance in industrial automation. Featuring a recirculating ball bearing guide, it offers exceptional stability, smooth movement, and flexible mounting in any position. Constructed with high-quality materials and fully RoHS-compliant, it ensures long-term durability in demanding environments.
Manufacturer: Festo
Type: Guide Unit
Model: FEN320100KF
Series: K102
| Diameter | 32 mm |
| Stroke | 100 mm |
| Mounting Position | Any |
| Guide Type | Recirculating ball bearing |
| Ambient Temperature | -20 °C to 80 °C |
| Port Size | G1/8 |
| Materials | Copper- and PTFE-free, RoHS-compliant; housing of anodized aluminum alloy; guide components made of quenched and tempered steel |

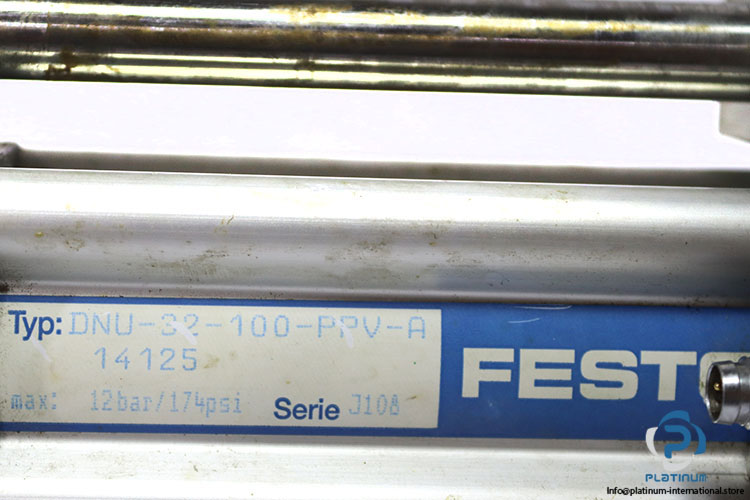

| Attachment | Festo 14125 ISO Cylinder |
| Part No. | 14125 |
| Ref. Code | J108 |
| Piston Diameter | 32 mm |
| Stroke | 100 mm |
| Max. Pressure | 12 bar |
| Connection | G1/8 |

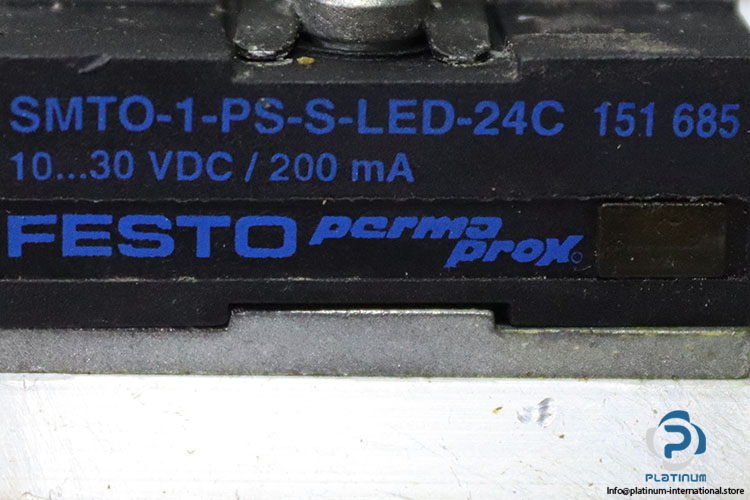

| Attachment | Festo 151685 Proximity Sensor |
| Part No. | 151 685 |
| Design | Block design |
| Switching Output | PNP |
| Switching Element Function | N/O contact |
| Max. Switching Capacity | 6 W (DC) |
| Operating Voltage Range | 10 to 30 V DC |
| Electrical Connection | M8x1 A |
| Max. Output Current | 200 mA |
