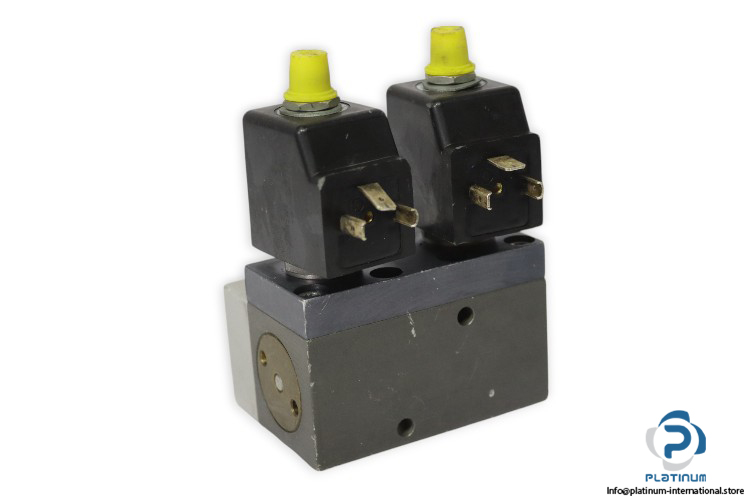

Festo JMC-4-1/4 220 VAC Double Solenoid Valve With Coil
Gebraucht
Auf Lager2 EinheitenVersandbereit
DOUBLE SOLENOID VALVE
The Festo JMC41/4 valve with MSW solenoid coil is a 4/2 electrically actuated valve built for efficient pneumatic control. Operating at 2“10 bar, it’s ideal for robust industrial air applications.220V4/2ACActuatedAirAluminumcoildie-castDoubleElectricallyFestoG1/4High-PressuIndustrialIP54JMC41/4MSWPneumaticsolenoidValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
FESTO JMC41/4 DOUBLE SOLENOID VALVE WITH COIL
The Festo JMC41/4 is a high-performance double solenoid valve with an integrated FESTO MSW solenoid coil, designed for reliable air control in industrial pneumatic systems. This compact, electrically actuated 4/2 valve operates efficiently in demanding environments with precision and durability. Manufacturer: Festo
Type: Double Solenoid Valve With Coil

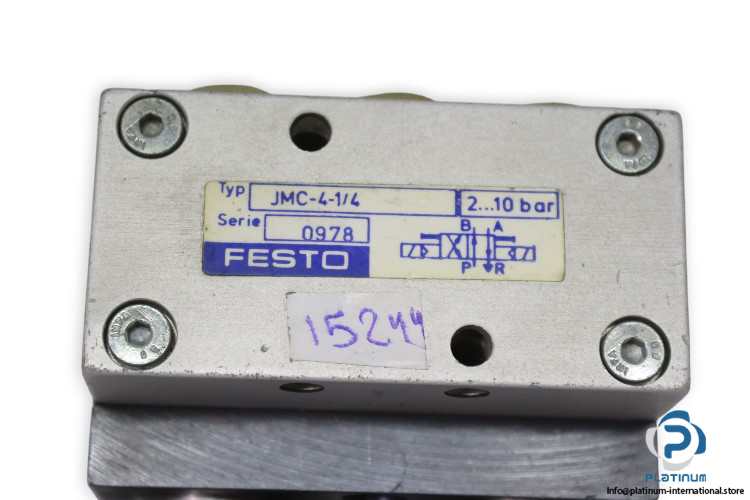

Model: JMC41/4
Series: 0978
| Fluid | Air |
| Function | 4/2 |
| Type of Actuation | Electrically |
| Operating Pressure | 2 to 10 bar |
| Material | Die-cast Aluminum |
| Ambient Temperature | -5 to 50 °C |
| Pneumatic Connection | G1/4 |

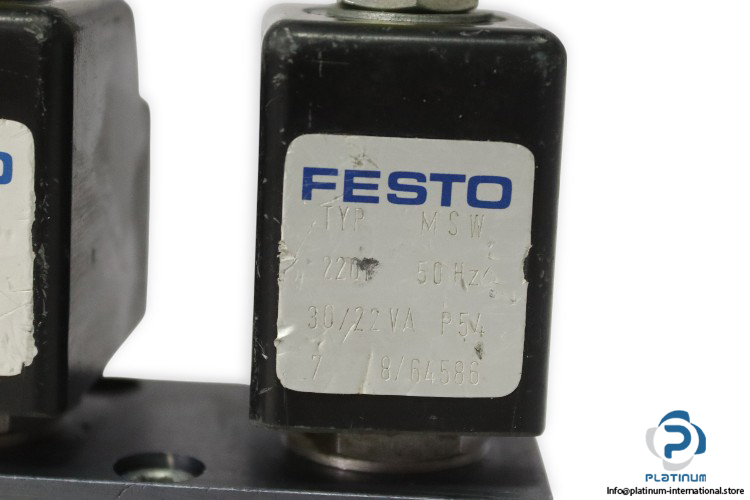

| Attachment Solenoid Coil | FESTO MSW SOLENOID COIL |
| Part No. | 7 8/64586 |
| Supply Voltage | 220 V AC, 50 Hz |
| Power Consumption | 30/22 VA |
| Protection Class | IP54 |
