Festo KMF-1-24DC-2.5-LED Plug Socket With Cable

Name: FESTO KMF-1-24DC-2.5-LED PLUG SOCKET WITH CABLE
SKU: 1095641
Availability: LimitedAvailability

festo-kmf-1-24dc-2.5-led-plug-socket-with-cable(new)

festo-kmf-1-24dc-2.5-led-plug-socket-with-cable(new)-1

festo-kmf-1-24dc-2.5-led-plug-socket-with-cable(new)-2

festo-kmf-1-24dc-2.5-led-plug-socket-with-cable(new)-3

festo-kmf-1-24dc-2.5-led-plug-socket-with-cable(new)-4

festo-kmf-1-24dc-2.5-led-plug-socket-with-cable(new)-5

Neu

Auf Lager3 EinheitenVersandbereit

Steckdose mit Kabel FESTO KMF-1-24DC-2.5-LED Steckdose mit 2,5 m Kabel, DC 24 V Betrieb, LED-Anzeige und IP67 Schutz für Magnetventilanwendungen.

SKU

1095641

Kategorie

Cable Connectors

Zustand

Neu

24v accessory Connector dc Electrical Festo Industrial IP67 KMF-1-24DC-2.5-LED LED Plug Pneumatic Socket solenoid Valve

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

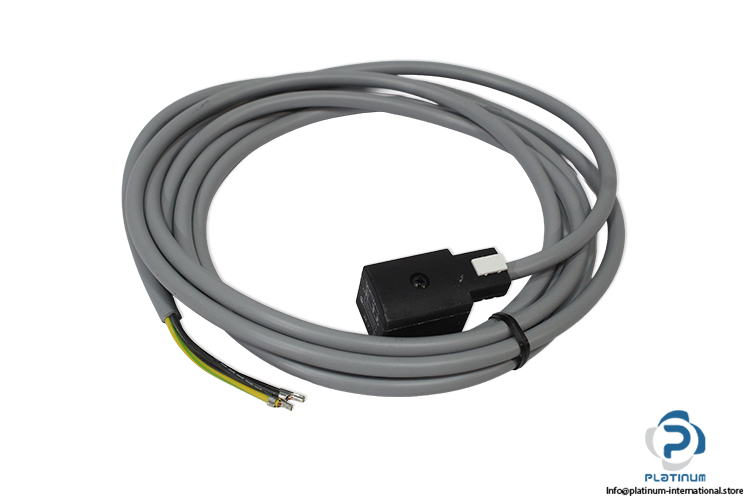

FESTO KMF-1-24DC-2.5-LED Plug Socket With Cable

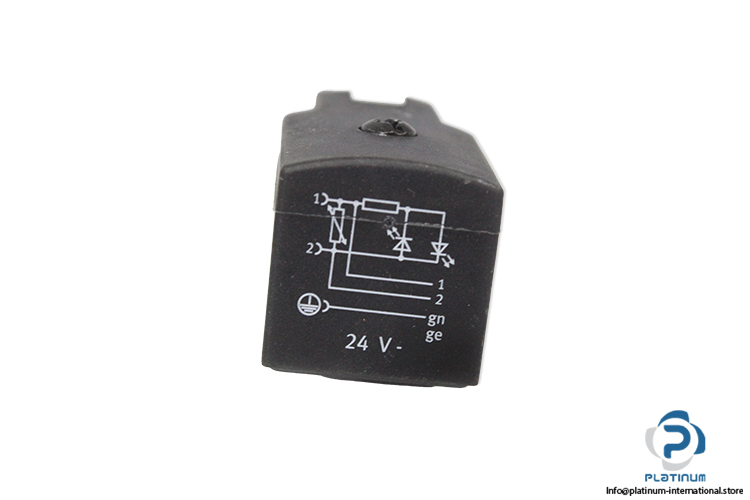

The FESTO KMF-1-24DC-2.5-LED is a plug socket with integrated cable and LED switching position indicator, designed for reliable electrical connection to solenoid valves. It ensures secure mounting, clear status indication, and high protection in demanding industrial environments.

Manufacturer: FESTO

Type: Plug Socket With Cable

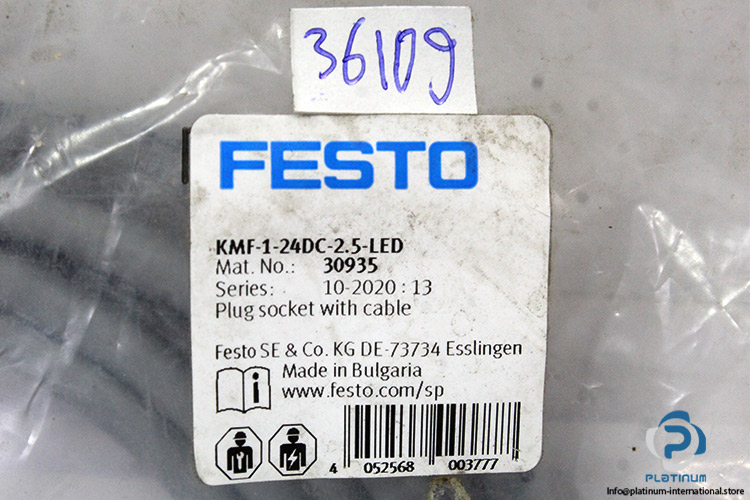

Model: KMF-1-24DC-2.5-LED

Part Number: 30935

Serial Number: 4 052568 003777

Switching Position Indicator	LED
Type Of Mounting	On Solenoid Valve Via M3 Central Screw
Mounting Position	Optional
Electrical Connection	Socket
Nominal Operating Voltage	DC 24 V
Protective Conductor Connection	Available
Cable Length	2.5 m
Cable Diameter	6 mm

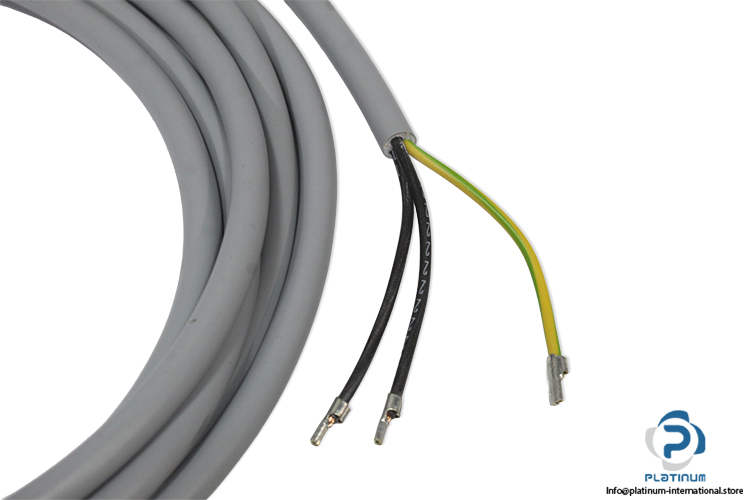

Cable Structure	3 x 0.75 mm²
Degree Of Protection	IP67 To IEC 60529
Ambient Temperature	-20 °C To 80 °C
Material Cable Sheath	PVC
Material Housing	PC, POM
Material Electrical Contact	Bronze
