Festo LFR-D-5M-MINI-A AIR Preparation Unit
Lufteinheit FESTO LFR-D-5M-MINI-A ist ein leistungsstarker Druckluftfilter-Regler, der für präzise pneumatische Anwendungen entwickelt wurde. Mit einem Maximaldruck von 12 bar, einer Durchflussrate von 2891,95 l/min und einer 5-Mikron-Filtration gewährleistet er optimale Luftqualität und Regelung. In Kombination mit dem FESTO LOE-D-MINI Air Line Lubricator verbessert er die Schmierstoffeffizienz und die Systemleistung.

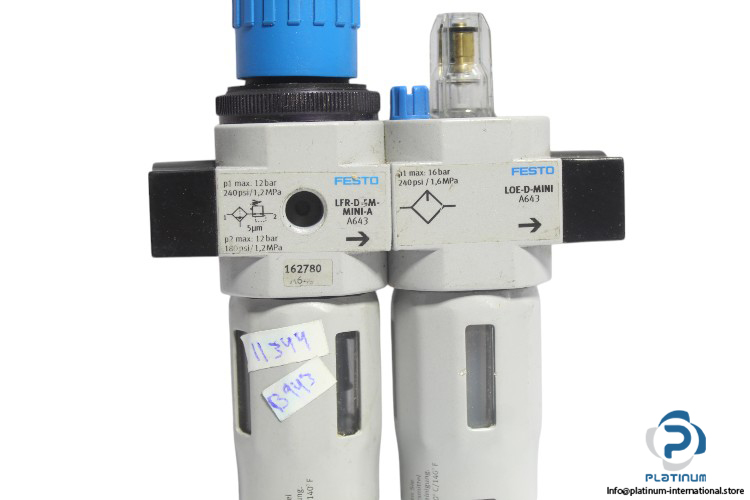

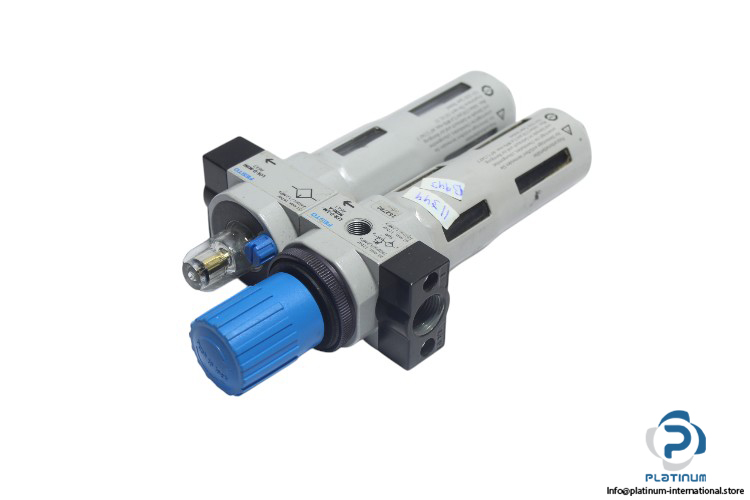

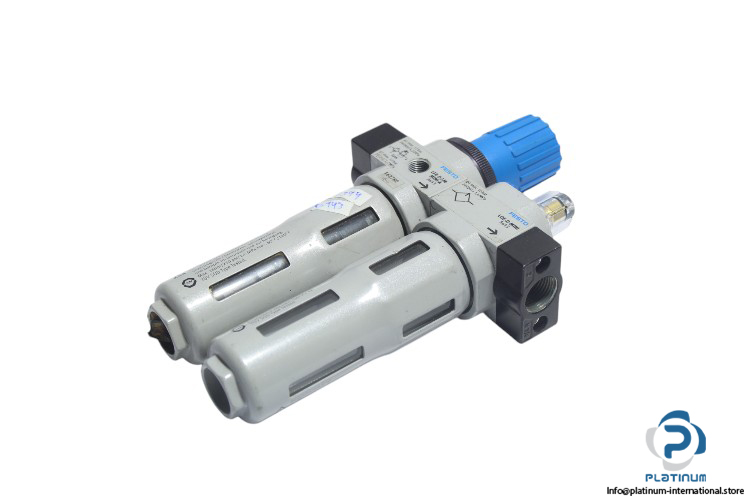

FESTO LFR-D-5M-MINI-A Air Preparation Unit with LOE-D-MINI Air Line Lubricator
The FESTO LFR-D-5M-MINI-A Air Preparation Unit is a high-performance filter regulator designed for compressed air and inert gas applications. Engineered to maintain optimal air quality and regulate pressure, it ensures efficient and reliable operation in pneumatic systems. This unit is paired with the FESTO LOE-D-MINI Air Line Lubricator, which enhances system performance by delivering precise lubrication.
Manufacturer: FESTO
Type: Air Preparation Unit
Model: LFR-D-5M-MINI-A
Part No.: 162780 / 546455
| Size | MINI |
| Fluid | Compressed Air / Inert Gas |
| Structural Design | Filter Regulator without Pressure Gauge |
| Operating Pressure Max. | 12 bar / 180 PSI / 1.2 MPa |
| Nominal Flow Rate | 2891.95 l/min |
| Filtration Level Grade | 5-micron m |
| Pneumatic Connection | G 3/8 & G 1/8 |
| Material | Die-Cast Zinc |
| Ambient Temperature | 5 ... 60 °C |
| Attachment | FESTO LOE-D-MINI Air Line Lubricator |
| Part No. | 192575 |
| Size | MINI |
| Fluid | Compressed Air / Inert Gas |
| Operating Pressure Max. | 16 bar |
| P1 Max. | 16 bar / 240 PSI / 1.6 MPa |
| Nominal Flow Rate | 3 l/min |
| Oil Capacity Max. | 45 cm³ |
| Material | Die-Cast Zinc |
| Ambient Temperature | -10 ... 60 °C |
