Festo MDH-5/3G-D-1-C-M43-191-CB Double Solenoid Valve
Gebraucht
Auf Lager2 EinheitenVersandbereit
DOUBLE SOLENOID VALVE
FESTO MDH-5/3G-D-1-C-M43-191-CB double solenoid valve with 24 V DC coil, aluminum body, and IP65 protection for pneumatic air systems.24vAirAluminumcoilControldcDoubleFestoGateIP65MDH-5/3G-D-1-C-M43-191-CBPistonPneumaticsolenoidSub-basedValve
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

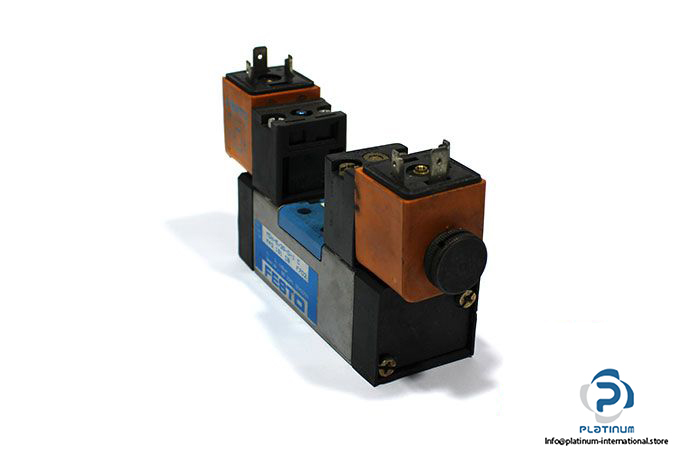

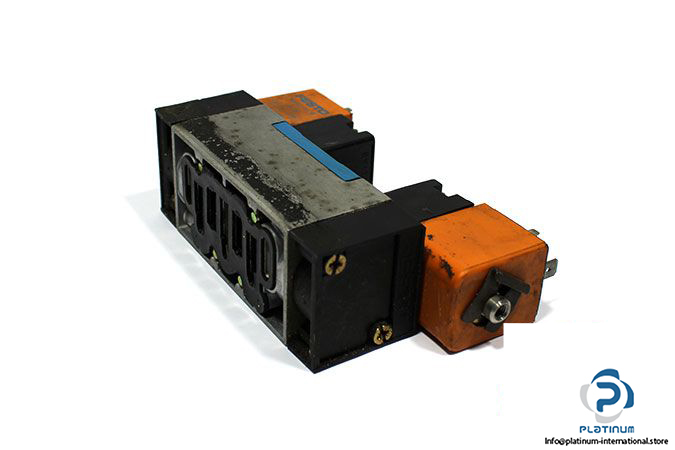

FESTO MDH-5/3G-D-1-C-M43-191-CB DOUBLE SOLENOID VALVE WITH COIL
The FESTO MDH-5/3G-D-1-C-M43-191-CB is a high-performance double solenoid valve engineered for reliable pneumatic control applications. It features a piston gate valve design, sub-based connection, and is constructed from durable aluminum for long-lasting operation in demanding environments. Included with this valve is the FESTO MDH-3/2-24DC solenoid coil for efficient 24 V DC actuation.
Manufacturer: FESTO
Type: Double Solenoid Valve

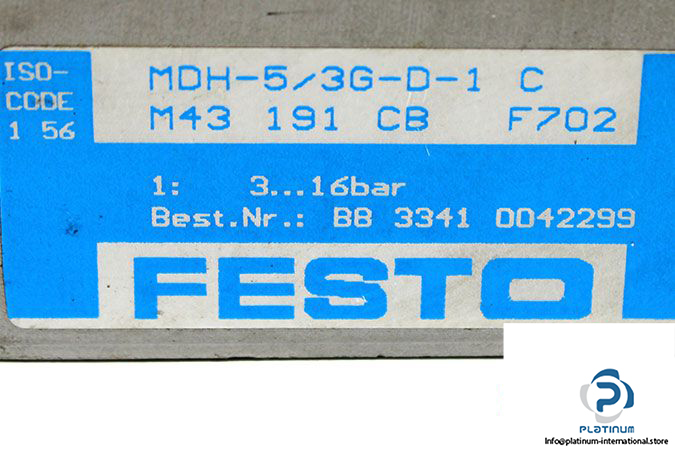

Model: MDH-5/3G-D-1-C-M43-191-CB
Part No.: BB3341 / 0042299
Coil Technical Information
| Fluid | Air |
| Design | Piston Gate Valve |
| Type of Actuation | Electrically |
| Operating Pressure | 3 / 16 bar |
| Pneumatic Connection | Sub-Based |
| Material | Aluminum |
| Protection Class | IP65 |
| Ambient Temperature | -5 / 50 °C |
| Attachment | FESTO 119600 SOLENOID COIL |
| Part No. | 119600 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
