Festo MLO-POT-1000-TLF Displacement Encoder
Neu
Auf Lager1 EinheitVersandbereit
VERSCHIEBUNGSENKODER FESTO MLO-POT-1000-TLF ist ein hochpräziser analoger Encoder mit einem Hub von 1000 mm, einer Auflösung von 0,01 mm und IP64-Schutz, ideal für absolute, kontaktbasierte Messungen in industriellen Automatisierungssystemen.
1000AbsoluteAnalogueAutomationComponentsContactDisplacementEncoderFestoIndustrialIP64LinearMeasurementMLO-POT-1000-TLFmmPositionSensorStroke
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

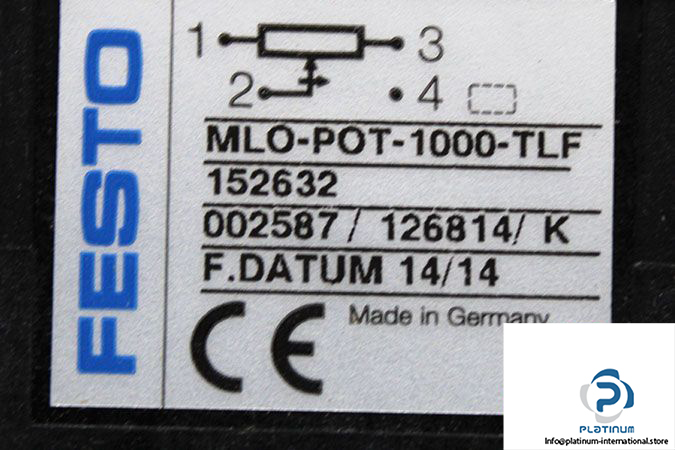

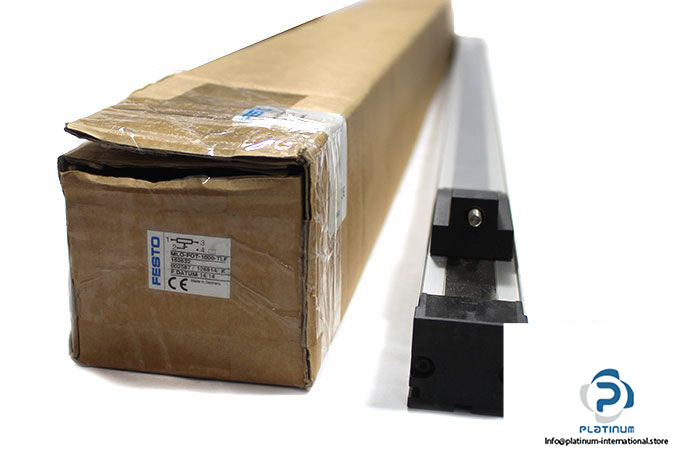

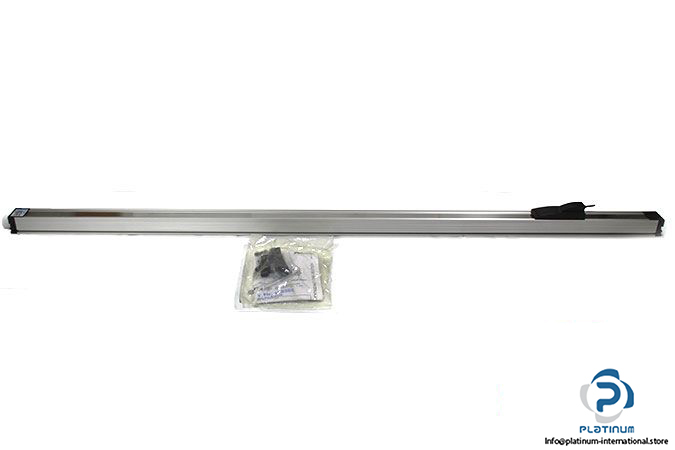

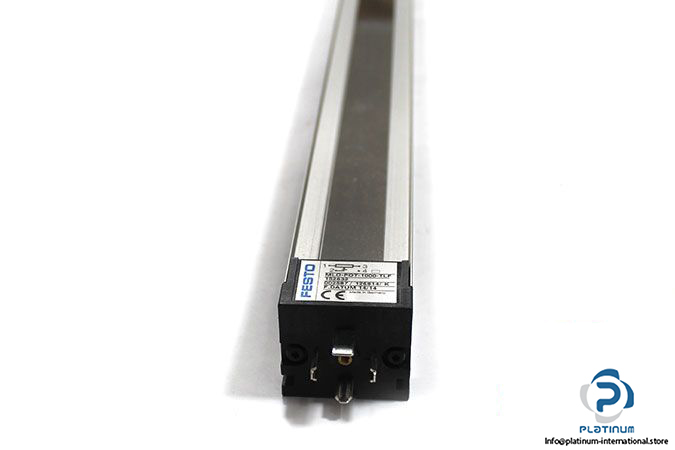

FESTO MLO-POT-1000-TLF DISPLACEMENT ENCODER
The FESTO MLO-POT-1000-TLF is a precision analogue displacement encoder designed for accurate, absolute measurement in industrial environments. It offers reliable contact-based measurement and robust construction, ideal for demanding automation and control systems.
Manufacturer: FESTO
Type: Displacement Encoder
Model: MLO-POT-1000-TLF
Part No.: 152632
Ref No.: 002587/126814/K
| Measuring Principle | Analogue displacement encoder, with contact and absolute measurement |
| Constructional Design | Open profile with cover strip and sliding cartridge |
| Resolution | 0.01 mm |
| Stroke Length | 1000 mm |
| Voltage Supply | 5 / 26 VDC |
| Connection Resistance | 10 kΩ |
| Independent Linearity | 0.04% |
| Interface Signal | Analogue signal |
| Connection Type | 4 pin plug, A DIN 43 650 |
| Ambient Temperature | -30 °C to 100 °C |
| Housing Material | Wrought aluminum alloy |
| Protection Class | IP 64 |
