Festo 150403 Inductive Proximity Sensor

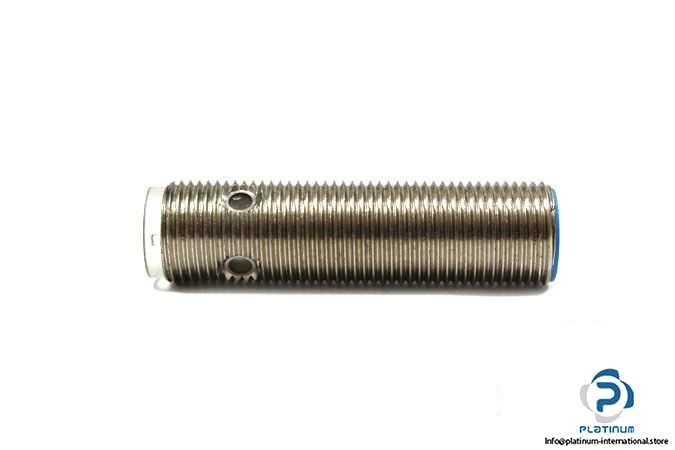

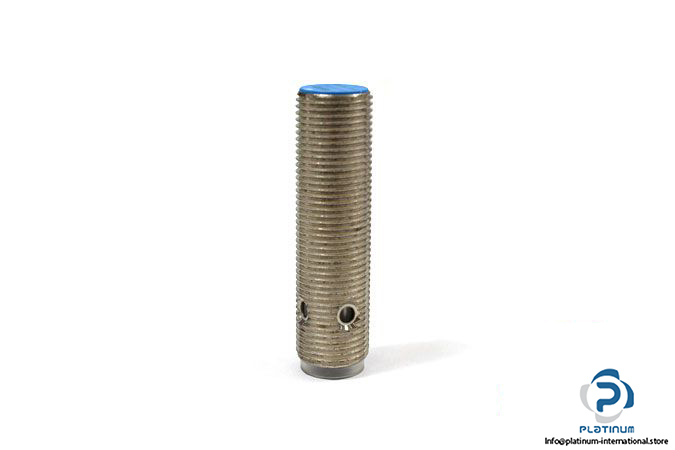

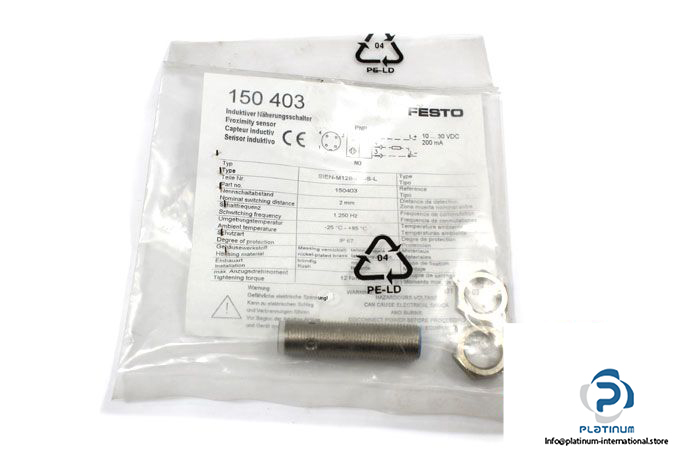

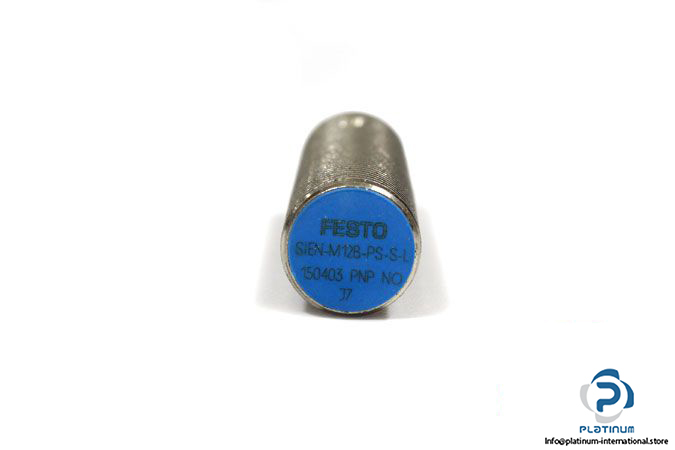

Festo SIEN-M12B-PS-S-L Inductive Proximity Sensor

The Festo SIEN-M12B-PS-S-L is an advanced inductive proximity sensor designed for high-precision applications. With a rated operating distance of 2 mm, it delivers fast switching performance with a high switching frequency of 3000 Hz. Featuring a robust IP65/IP67 enclosure rating, this sensor is suitable for demanding environments in industrial automation systems.

Manufacturer: FESTO

Type: Inductive Proximity Sensor

Model: SIEN-M12B-PS-S-L

Part No.: 150403

Technical Data:

• Rated Operating Distance: 2 mm
• Operating Voltage: 10 / 30 V DC
• Output Current: 200 mA
• Switching Frequency: 3000 Hz
• Electrical Design: PNP
• Switching Output: Normally open

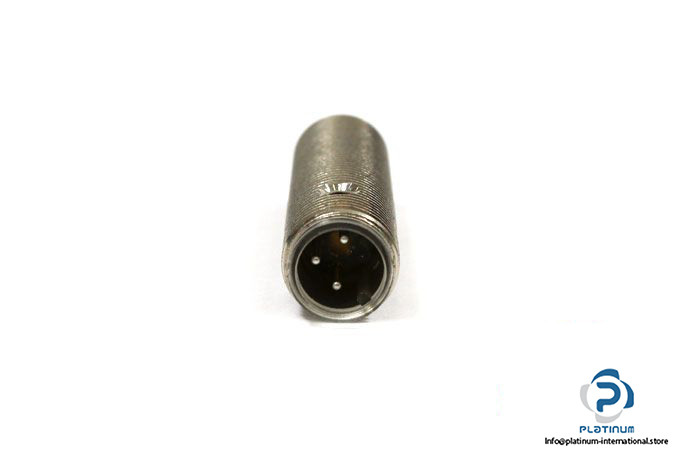

• Connector Type: M12 Connector, 3-pin
• Enclosure Rating: IP65, IP67
• Ambient Operating Temperature: -5 / 70°C
• Diameter, Housing Length: 12 mm, 45 mm
• Housing Material: Brass, PBTP, Nickel plated
• Mounting: Flush mountable

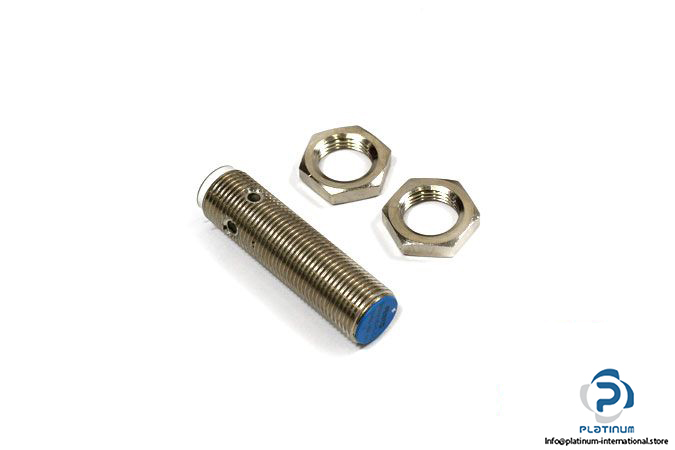

• Supplied Items: 2 lock nuts
