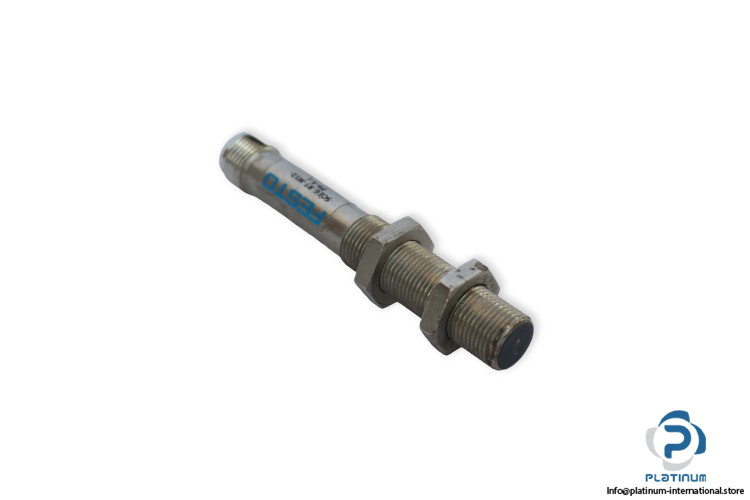

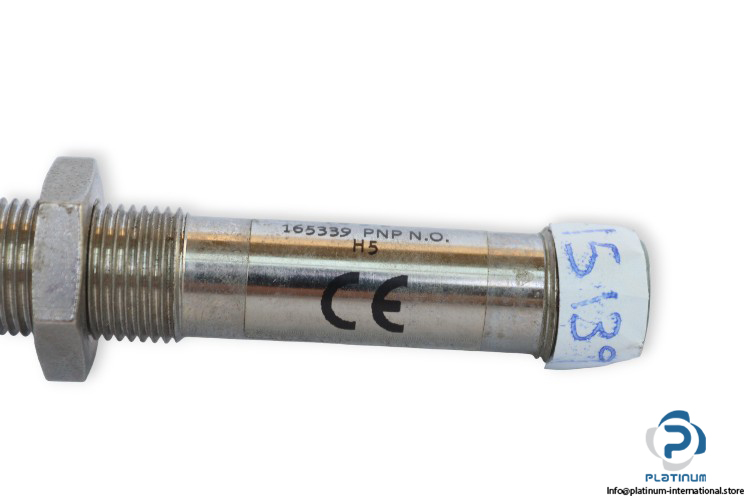

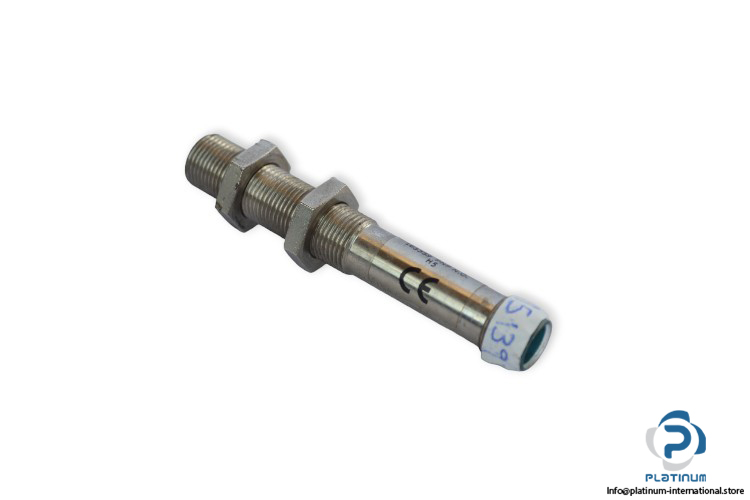

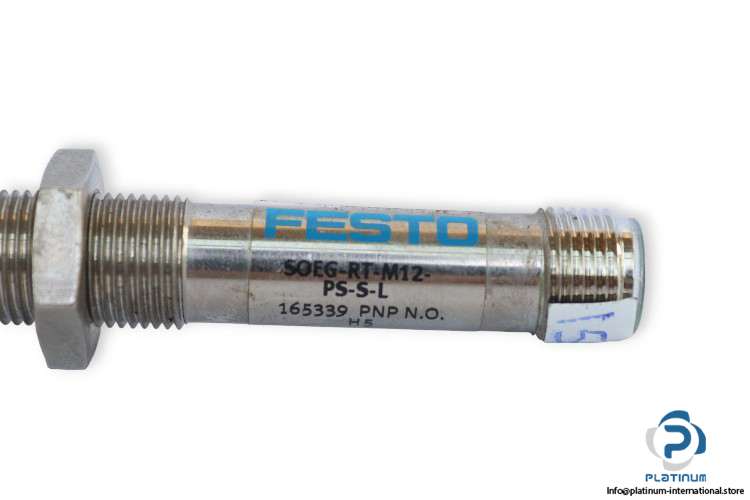

Festo SOEG-RT-M12-PS-S-L Diffuse Light Sensor

Manufacturer: FESTO
Type: Diffuse Light Sensor
Model: SOEGRTM12PSSL
Part No.: 165339

Sensing Range: 0 … 200 mm
Light Type: Infrared
Supply Voltage: 10 … 30 V DC
Output Current Max.: 200 mA
Switching Output: PNP Normally Open (NO)
Connection Type: Plug Connector M12x1, 3-Pin
Housing Material: Brass, Chromed-Plated
Protection Class: IP65
Operating Temperature: -5 … 55 °C
Sensor Length, Diameter: 81, 12 mm
