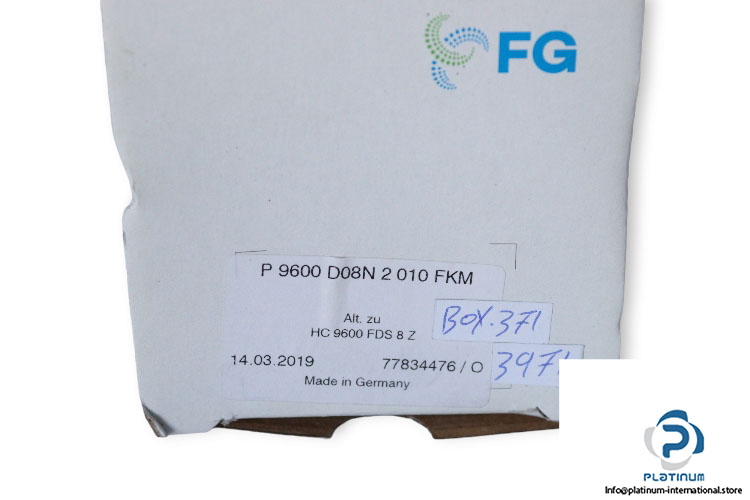

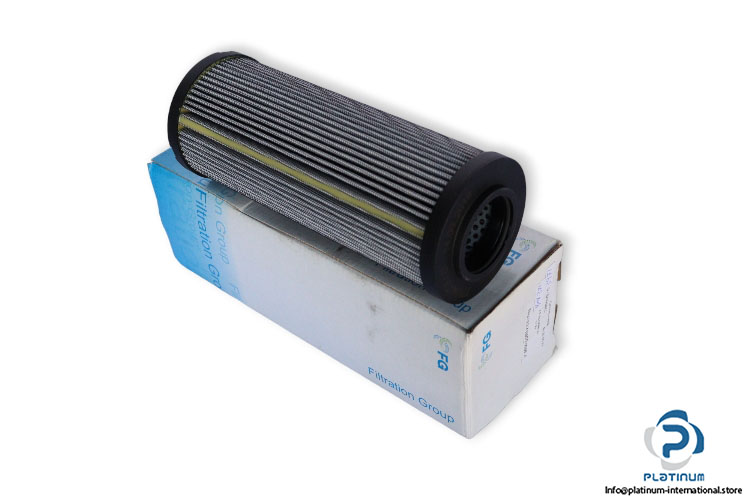

FG P 9600 D08N 2 010 FKM Filter Element

Manufacture: Filtration Group FG
Type: Filter Element
Model: P 9600 D08N 2 010 FKM
Alt. part No.: HC9 600 FDS 8 Z
Part No.: 77834476 / O

Height: 205.00 mm
Outer diameter: 80.00 mm
Inner diameter: 43,00 mm
Mounting diameter: 43,00 mm
Differential pressure resistance: 20,00 bar
Filter surface: 3.530 cm²
Filter material: Glass fibre
Filter rating: 10,00 µm
End cap material: Plastic end cap PA
