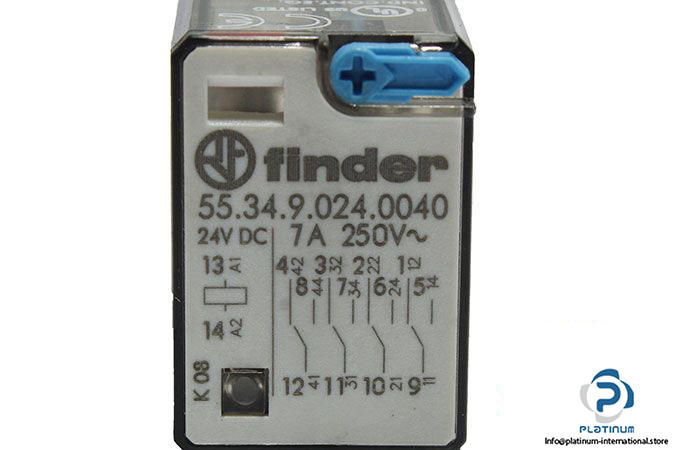

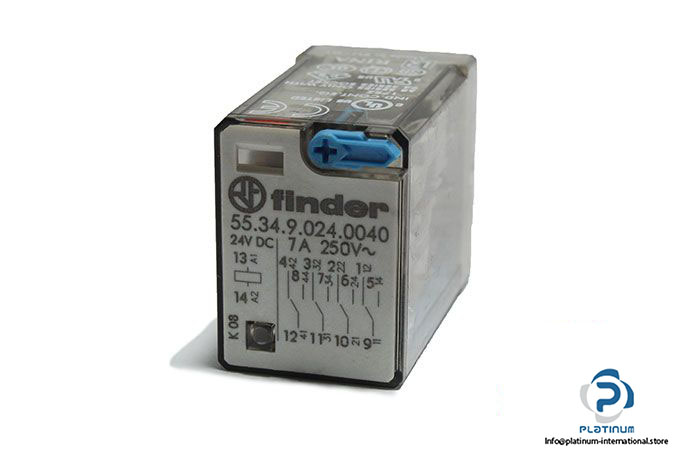

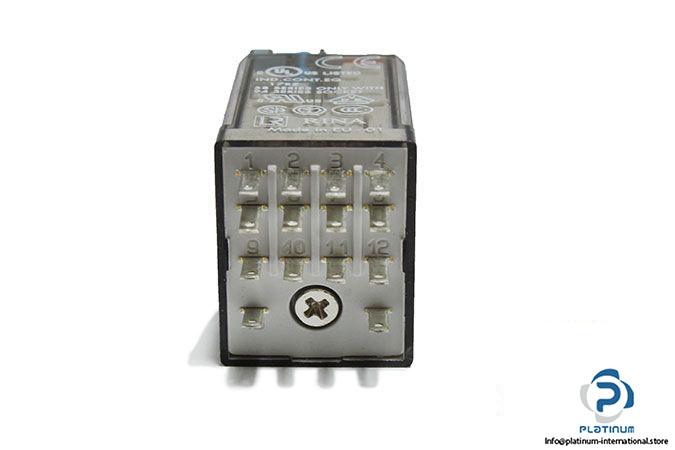

Finder 55.34.9.024.0040 Relay

Manufacturer: Finder

Type: Relay

Model: 55.34.9.024.0040



Contact Configuration: 4 CO (4PDT)

Rated Current/Maximum Peak Current: 7/15 A

Rated Voltage/ Maximum Switching Voltage: 250/250 VAC

Rated Load AC1: 1750 VA

Rated Load AC15 (230 VAC): 350 VA

Single Phase Motor Rating (230 VAC): 0.125 Kw

Coil Rated Power: 1.5/1 VA/W

Coil Voltage: 24 VDC

Ambient Temperature: –40 … +85°C

Standard Contact Material: AgNi

Dimensions: 20 X 34 X 27 mm

Weight: 0.035 Kg
