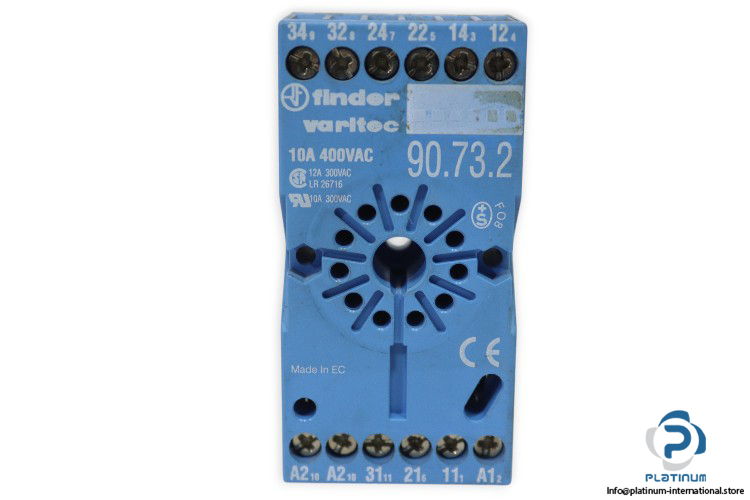

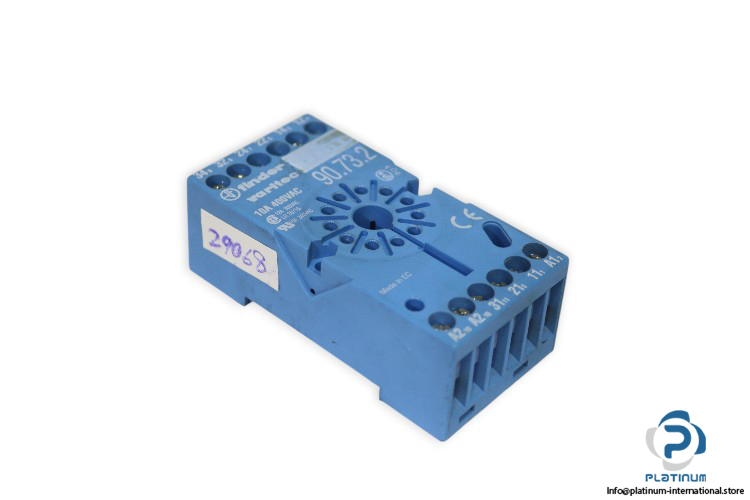

Finder 90.73.2 Relay Terminal Socket
Neu
Auf Lager2 EinheitenVersandbereit
Relay Terminal Socket
Finder 90.73.2 socket from the 90 series, designed for 400 V AC, 12 A, and 3 CO contacts with secure 8-pin connection and reliable mounting.12A400V89090.73.2accessoriesAutomationChangeConnectorContactFinderIndustrialOverpinRelaySeriesSocketterminal
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Finder 90.73.2 Relay Terminal Socket
The Finder 90732 is a high-quality relay terminal socket from the 90 series, engineered for reliable electrical connections in industrial applications. It supports robust operation with secure mounting and efficient contact design, making it suitable for a wide range of automation and control systems.
Manufacturer: Finder
Type: Relay Terminal Socket
Model: 90.73.2
Series: 90
| Rated Voltage | 400 V AC |
| Rated Current Max. | 12 A |
| Operating Frequency | 50 / 60 Hz |
| Contact | 3 Change-Over (CO) |
| Switching Voltage | 300 V AC |
| Switching Current Max. | 12 A |
| Electric Connection | Male Connector 8-Pin |
| Mounting | Socket |
| Temperature | -40 / 70 °C |
| Dimensions | 75 x 26 x 38 mm |
