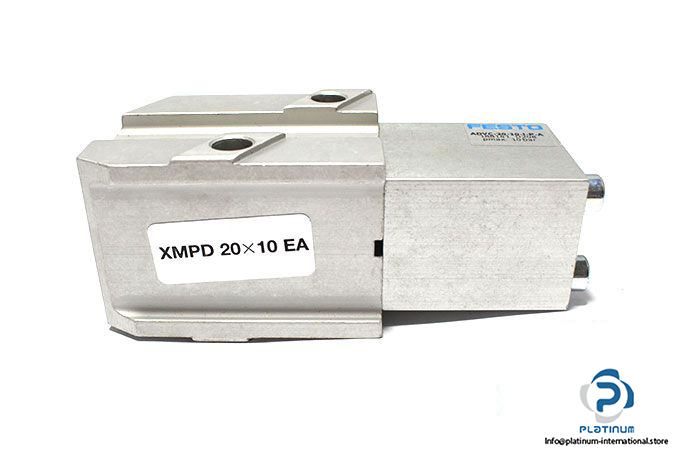

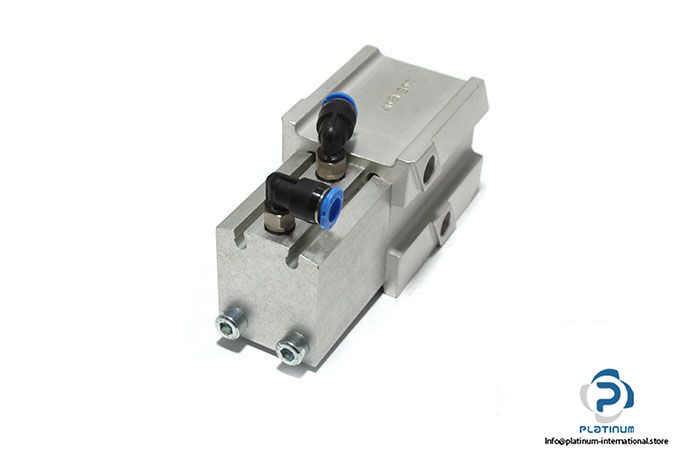

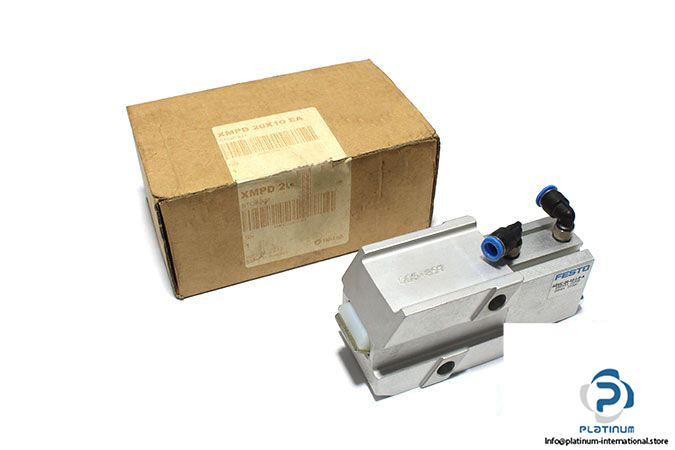

Flexlink Xmpd 20X10 EA Pallet Stop

Manufacturer: FLEXLINK

Type: Pallet Stop

Model: XMPD 20X10 EA

Material

,,Housing: anodized aluminium

,,Cover: stainless steel

Mode Of Actuated: Double-actuated

Locating accuracy: ±1 mm

Dimension ( Length X Width ): 117 X 44 mm

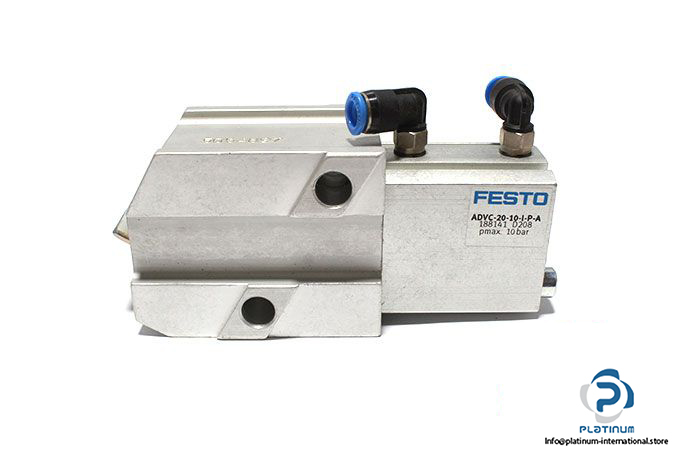

Attachment:  FESTO 188141 SHORT-STROKE CYLINDER

Manufacturer: FESTO

Type: Short-Stroke Cylinder

Model: ADVC-20-10-I-P-A

Part No.: 188141

Materials

,,Cylinder Tube: Aluminium wrought alloy Smooth anodised

,,Piston rod: High-alloy steel

Stroke Length: 10 mm

Piston Diameter: 20 mm

Piston rod thread: Female thread

Operating Pressure: 1 … 10 bar

Cushioning: Flexible cushioning rings/pads at both ends

Position Sensing: Via proximity sensor

Pneumatic Connection: 5 mm

Mode of operation: Double-acting

Temperature: -20 … 80 °C



Weight: 0.40 kg
