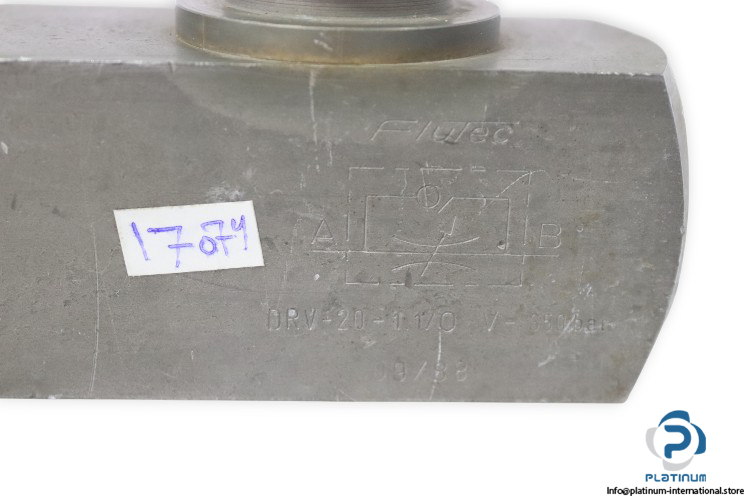

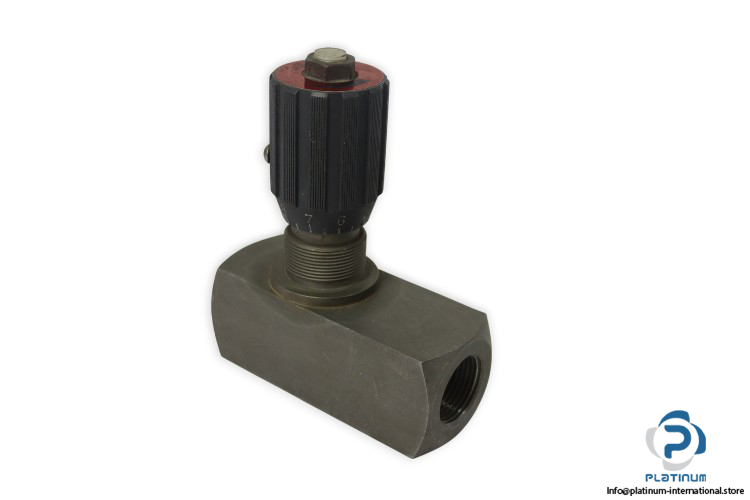

Flutec DRV-20-1.1/0 V-350 BAR Flow Control Valve

Flutec / Hydac DRV-20-1.1/0 V-350BAR Flow Control Valve

A high-quality hydraulic flow control and needle valve designed for precise throttling, stable performance, and reliable reverse flow check protection. Built for demanding hydraulic systems requiring dependable manual adjustment and consistent control under high pressure. Manufacturer: Flutec / Hydac
Type: Flow Control Valve / Needle valve with reverse flow check
Model: DRV-20-1.1/0 V-350BAR
Code: 09/88
Size: 20
Operating fluid: Hydraulic oil
Operating pressure: max. 350 bar
Configuration: Inline
Actuation Type: Manual
Function: Throttle check valve
Control type: Direct-acting
Flow Rate: max. 300 l/min
Media operating temperature range: min. -20 °C to max. +80 °C
Ambient temperature range: min. -20 °C to max. +80 °C
Materials: Valve body: steel
Piston: hardened and ground steel
Seals: FKM (standard)
Back-up rings: PTFE
Connection: G1

Recommendation:
This Flutec / Hydac valve is ideal for customers who require exceptionally stable flow control in high-pressure industrial systems. Its rugged steel construction, PTFE back-up rings, and FKM sealing ensure long service life even in harsh operating conditions. Recommended for hydraulic machinery, power units, test benches, press systems, and precise flow-metering applications. Choosing this model ensures improved system reliability, reduced maintenance downtime, and superior manual control accuracy.
