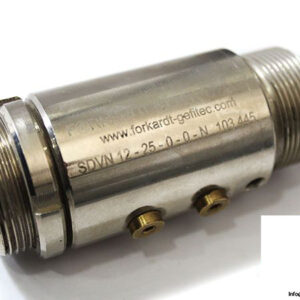

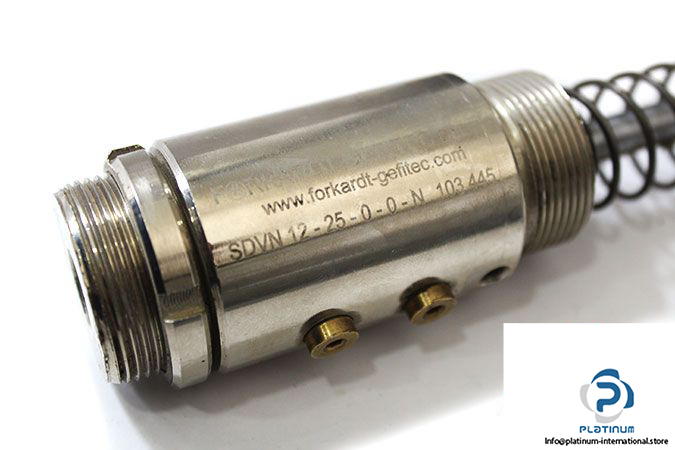

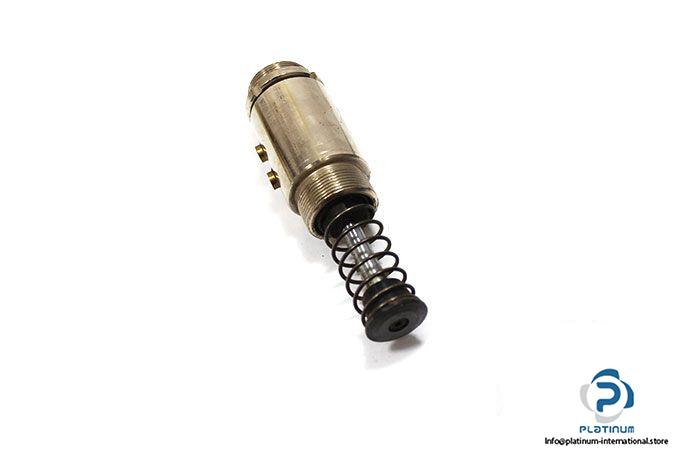

Forkardt Gefitec Sdvn 12-25-0-0-N Shock Absorber

Manufacturer: FORKARDT-GEFITEC

Type: SHOCK ABSORBER

Order No.: SDVN 12-25-0-0-N

Energy Consumption Ratings per stroke: 125 Nm/Hub

Energy Consumption Ratings Per Hour: 80 kNm/h

max. Braking Load: 625 kg

Return Force: 29 … 50 N

Permissible velocity: 0.2 – 5 m/s

Housing Material: Steel

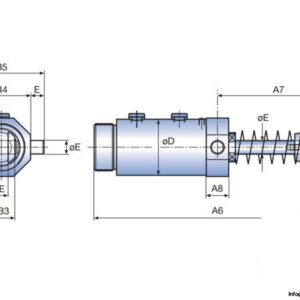

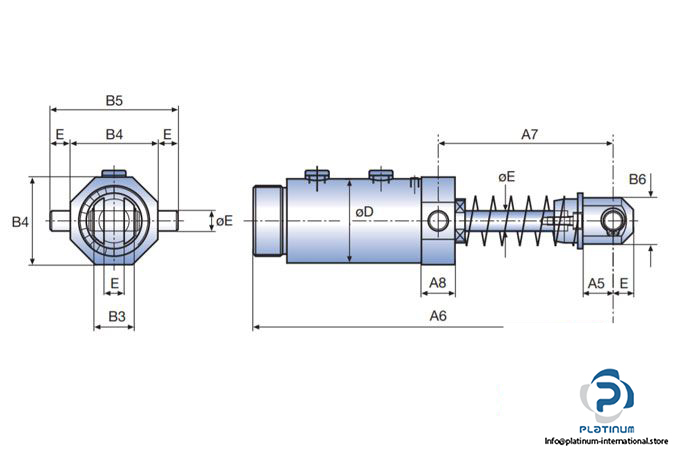

Shock Absorber Size:

   øD: 38 mm

   øE: 8 mm

Mounting style: Screw Mounting

Function style: INTERNAL RESERVOIR, WITH SPRING

Seal style: Standard

Stroke Length: 25 mm

Piston Diameter: 12 mm

length (A6): 150 mm

Temperature Range: 0 … 80 ˚C

Weight: 0.58 kg
