Franke FDA25K(84363AH) Linear Roller Guide With Clamp Lever
Neu
Auf Lager1 EinheitVersandbereit
149,99$
Linearer Rollenführung mit Spannhebel Präzisionslinearführung FDA25K mit Spannhebel 84363AH. Größe 25, hohe Tragfähigkeiten (Cr: 9000 N, C0r: 10100 N) und 250 N Klemmkraft. Ideal für Automatisierungs- und Maschinenanwendungen.
AutomationbearingClampComponentEquipmentFDA25KFrankeGuideIndustrialLeverLinearLoadMachineMotionPrecisionRollerSystemTool
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

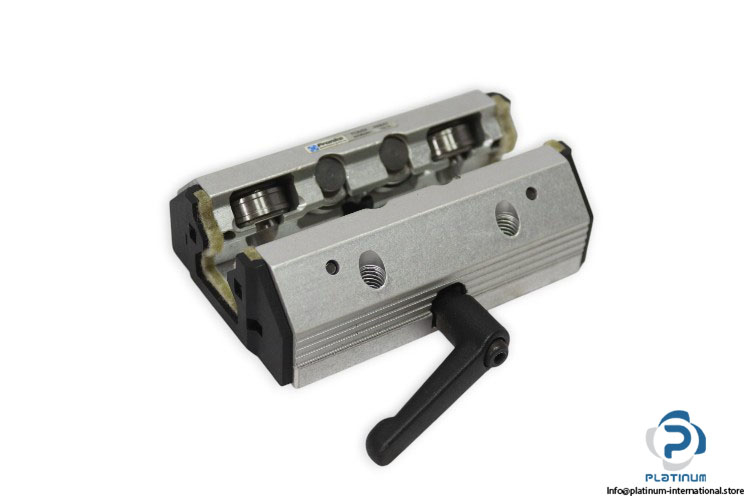

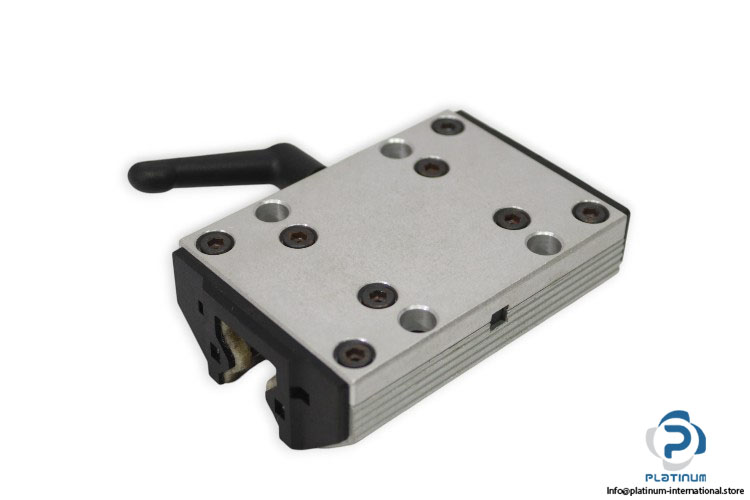

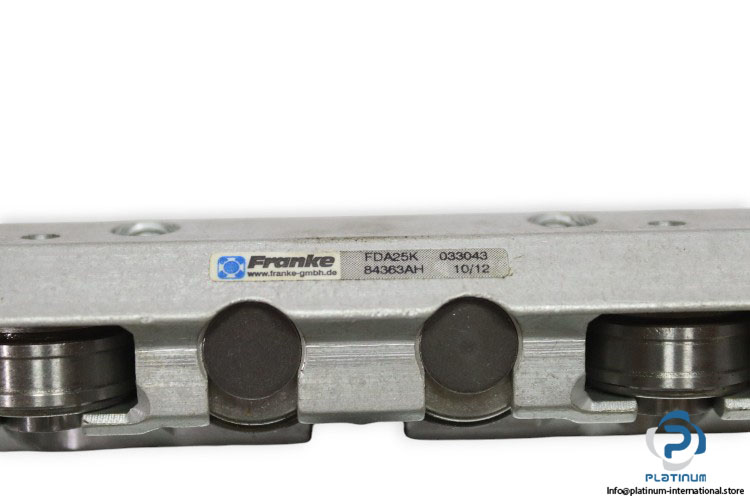

Franke FDA25K Linear Roller Guide with Clamp Lever
The Franke FDA25K Linear Roller Guide with Clamp Lever is a precision motion component designed for high load capacity and smooth linear movement. Ideal for automation, machine tools, and industrial positioning applications.
Manufacturer: Franke
Type: Linear Roller Guide with Clamp Lever
Model: FDA25K
Clamp Lever: 84363AH
Block
Clamp Lever

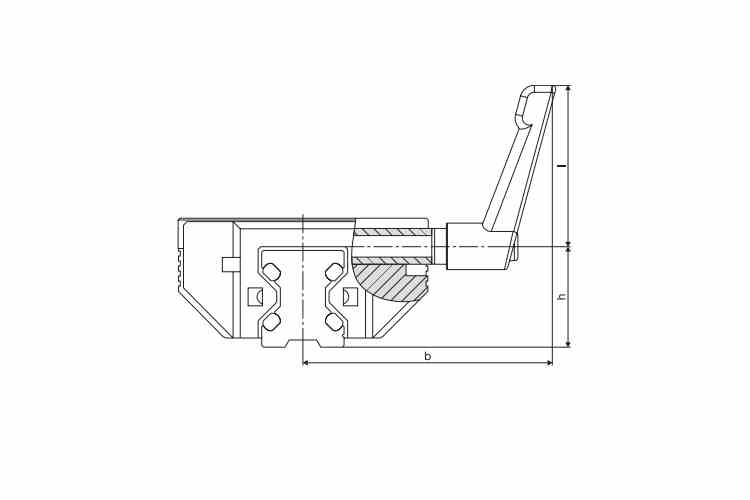

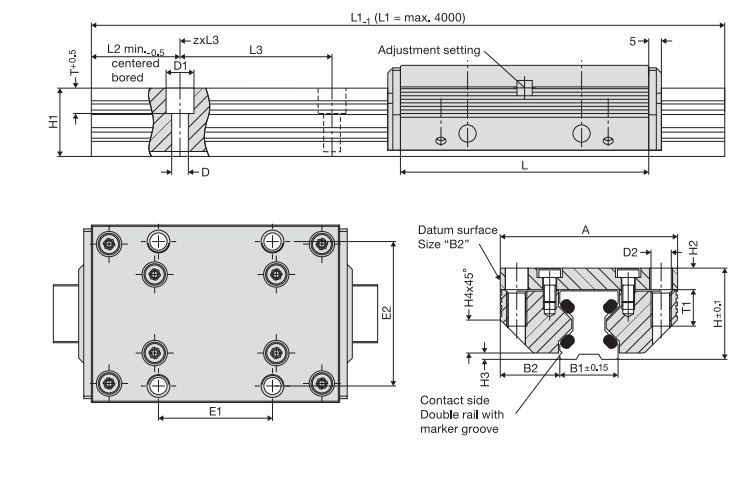

Dimensions:
| Size | 25 |
| Total Height (H) | 36 mm |
| Block Width (A) | 70 mm |
| Block Length (L) | 98 mm |
| Block Height (H-H3) | 33.5 mm |
| E1 | 45 mm |
| E2 | 57 mm |
| Dynamic Load Rating (Cr) | 9000 N |
| Static Load Rating (C0r) | 10100 N |
| Holding Force | 250 N |
| Size | 25 |
| Thread | M6 |
| b | 71 mm |
| h | 28 mm |
| l | 45 mm |
| Note | We also provide the corresponding rails (guideways) in a wide range of lengths”please ask us if you need rails to match your bearing. |
