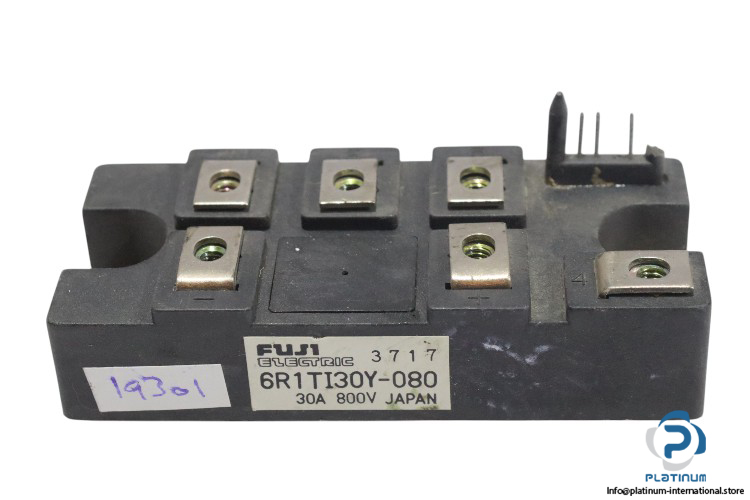

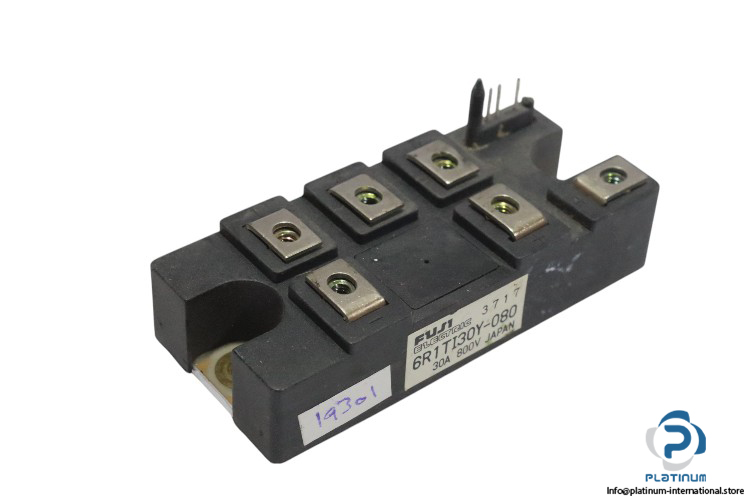

Fuji 6R1TI30Y-080 Diode AND Thyristor Module

FUJI 6R1TI30Y-080 Diode and Thyristor Module

The FUJI 6R1TI30Y-080 is a robust diode and thyristor module designed for dynamic braking applications in AC motor systems. With a high rated voltage of 800V and a current capacity of 30A, it features a glass passivation chip and insulated structure for enhanced reliability and protection. Ideal for high-stress environments, it supports rapid switching and surge resistance, ensuring stable performance under demanding industrial conditions.

• Manufacturer: FUJI
• Type: Diode and Thyristor Module
• Model: 6R1TI30Y-080

Technical Specifications:

• Rated Voltage: 800V
• Rated Current: 30A
• Isolation Voltage: 2000 V
• Frequency: 50/60 Hz
• Screw Torque – Mounting: 3.0 N·m
• Screw Torque – Terminals: 1.7 N·m
• Operating Temperature: -40 to 125 °C

Features:

• Glass Passivation Chip
• Easy Connection
• Insulated Type
• Large di/dt
• Large dv/dt

Applications:

• Dynamic Braking of AC Motors
