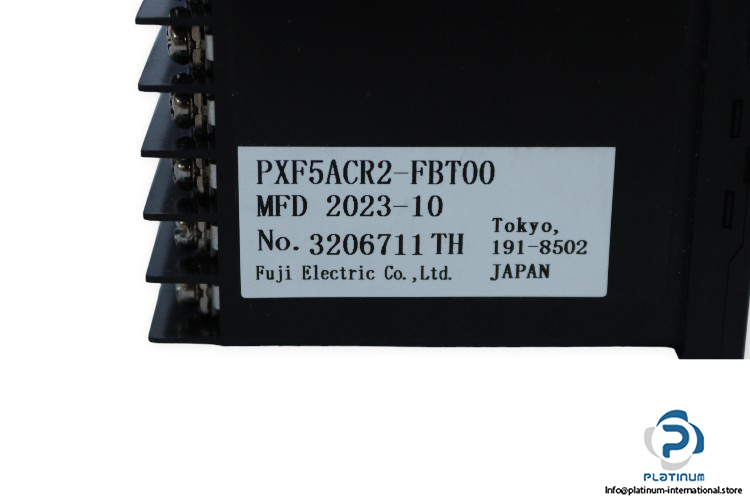

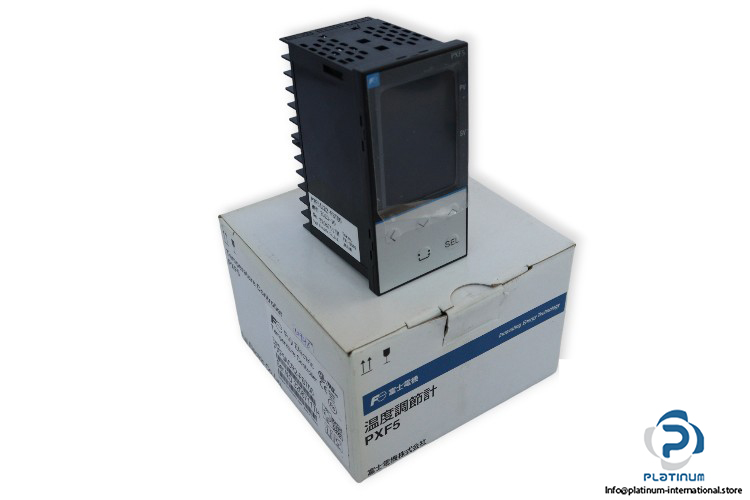

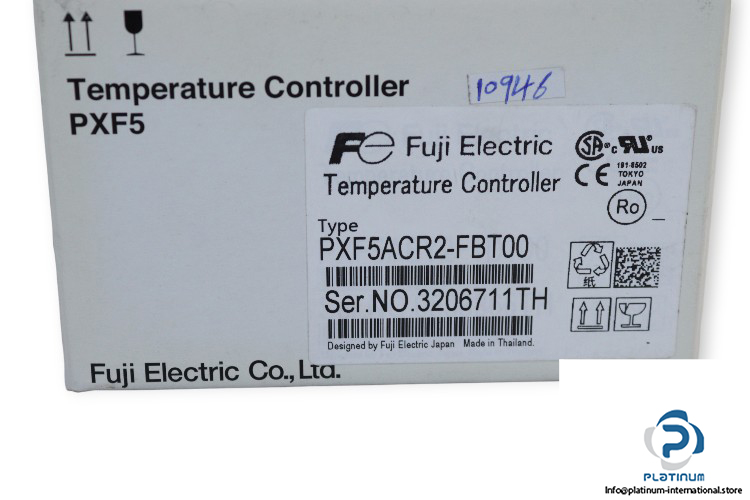

Fuji PXF5ACR2-FBT00 Temperature Controller

Manufacture: Fuji
Type: Temperature Controller
Model: PXF5ACR2-FBT00

Power supply: 24 V AC/DC
Power consumption: 8 VA
Insulation resistance: 20 Mohm
Withstand voltage: 1500 V AC for 1min relay contact output
No. of inputs: 1
Process value input: (Programmable scale) Universal input (RTD, thermocouple, voltage/current)
Indication accuracy (at Ta = 23°C):
• Thermocouple input: either ±1°C ±1 digit or ±0.3% ±1 digit of indicated value, whichever is larger
*except:
Thermocouple B: 0 to 400°C: no accuracy assurance
Thermocouple R: 0 to 500°C: ±3°C ±1 digit
All thermocouples: -200 to -100°C: ±2°C ±1 digit
• RTD input: ±0.8°C ±1 digit or ±0.2% ±1 digit of indicated value, whichever is larger
• mV input, voltage input, current input: ±0.3%FS ±1 digit

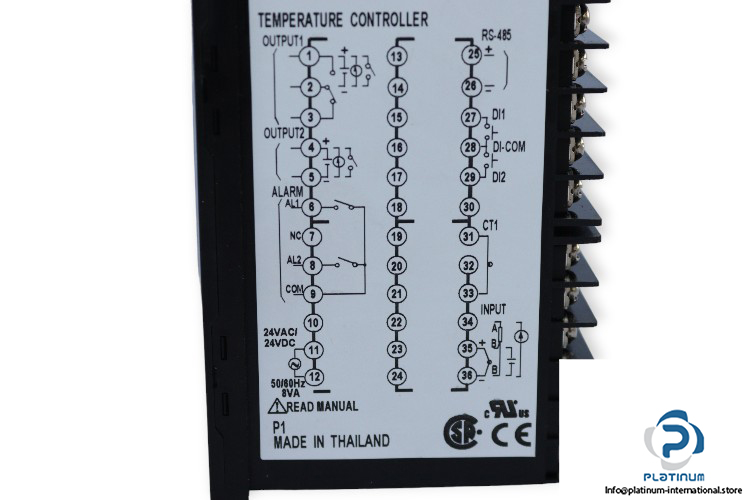

No. of output point: Up to 2
Outputs: 10 relays (8 x 8 A relay and 2 x 5 A relay)
Contact capacity: 5 V DC,2 mA

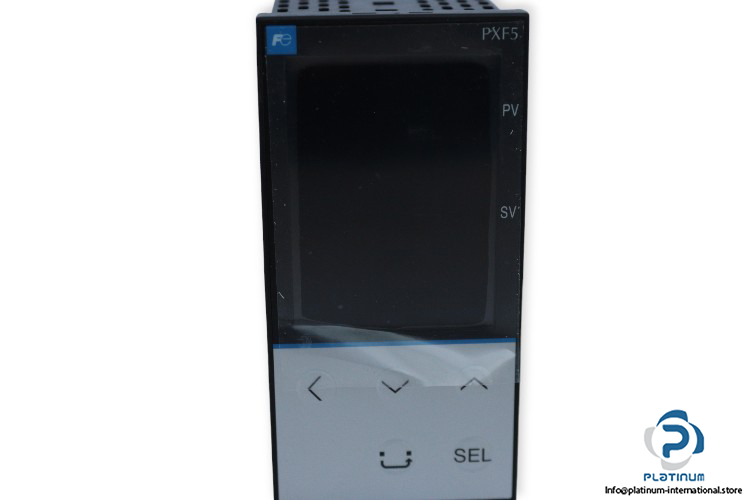

Display digits: 4-digit (PV and SV)
Character height (PV): 18.1 mm
Sampling rate: 50 ms
Front panel size: 48 × 96 mm
Depth: 58 mm
