Ganz Electric MAK 45/14 Current Transformer
Gebraucht
Auf Lager1 EinheitVersandbereit
Current Transformer
Ganz Electric MAK45/14 ring-type current transformer with 75/5 A ratio, 1“1.5 VA burden, and accuracy class 0.5“3. Built to IEC 44-1 standards for reliable industrial current measurement.44-175/5aCTCurrentElectricElectricalGanzIECIndustrialMAK45/14MeasurementPrecisionRing-TypeTransformer
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

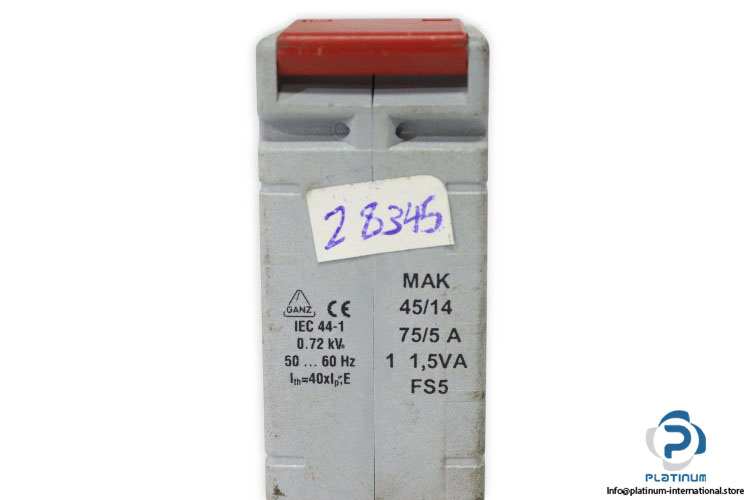

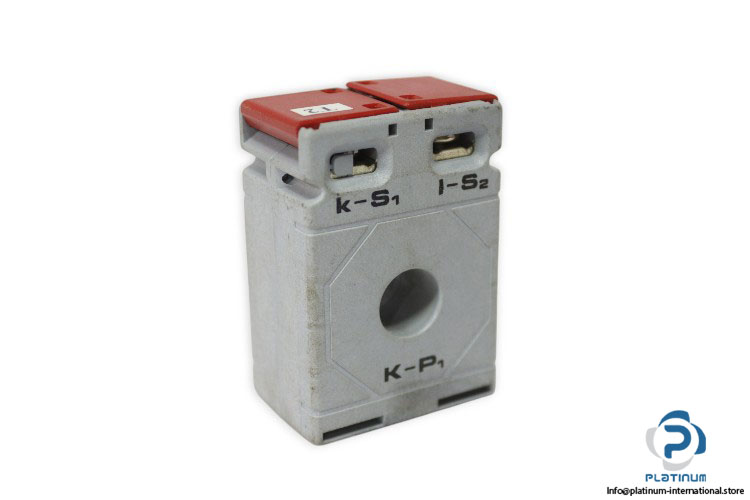

Ganz Electric MAK45/14 Ring-Type Current Transformer
The Ganz Electric MAK45/14 is a precision ring-type current transformer designed for accurate current measurement and reliable performance in electrical systems. Built to IEC 44-1 standards, it delivers dependable operation in industrial environments with excellent thermal and voltage ratings.
Manufacturer: Ganz Electric
Type: Ring-Type Current Transformer
Model: MAK45/14
| Rated Burden | 1 to 1.5 VA |
| Rated Voltage | 0.72 kV |
| Thermal Current Ith | 40×IpE A |
| Rated Frequency | 50 to 60 Hz |
| Rated Secondary Current | 5 A |
| Security Factor | FS5 |
| Current Ratio | 75/5 A |
| Working Temperature Range | -20 to +45°C |
| Insulation Class | E (max. 120°C) |
| High Voltage Test | 4 kVeff, 50 Hz, 1 min |
| Protection Degree | IP00 |
| Accuracy Class | 0.5 to 3 |
| Standard | IEC 44-1 |
| Dimensions | 65 × 45 × 14 mm |
