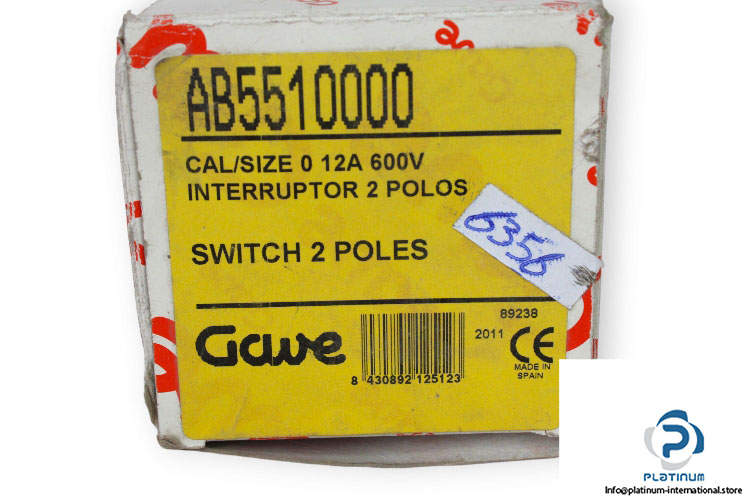

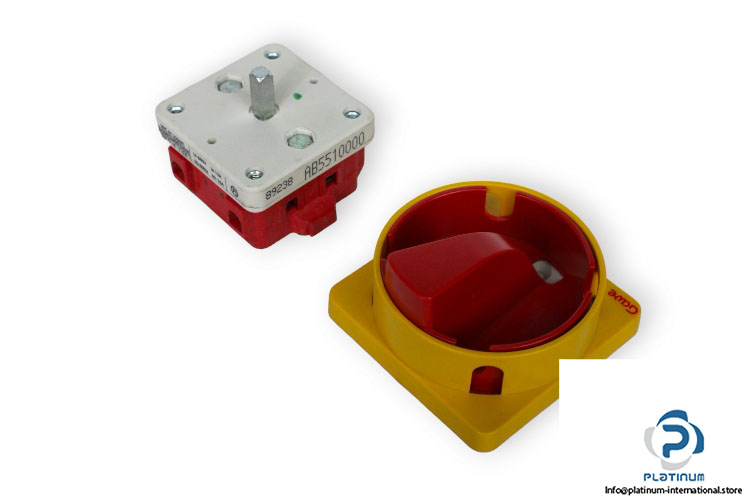

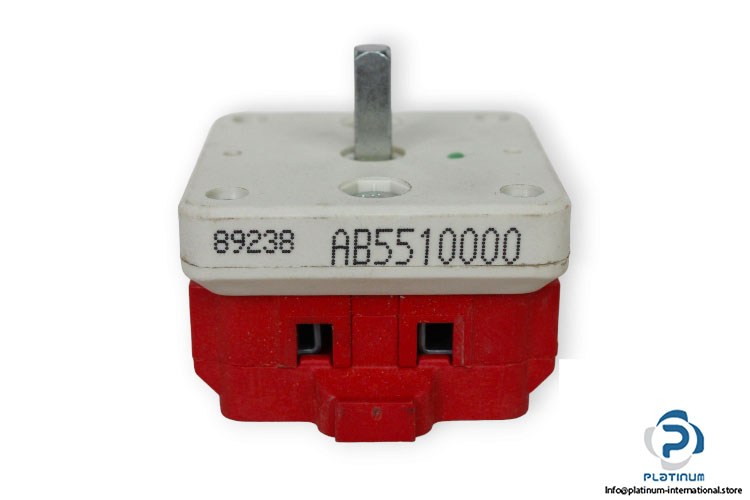

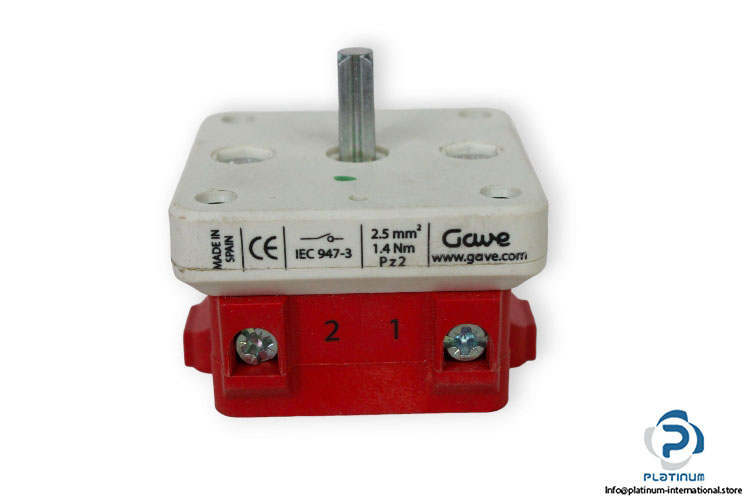

Gave AB5510000 Safety Switch

Manufacture: Gave
Type: Safety Switch
Model: AB5510000
Part No.: 89238

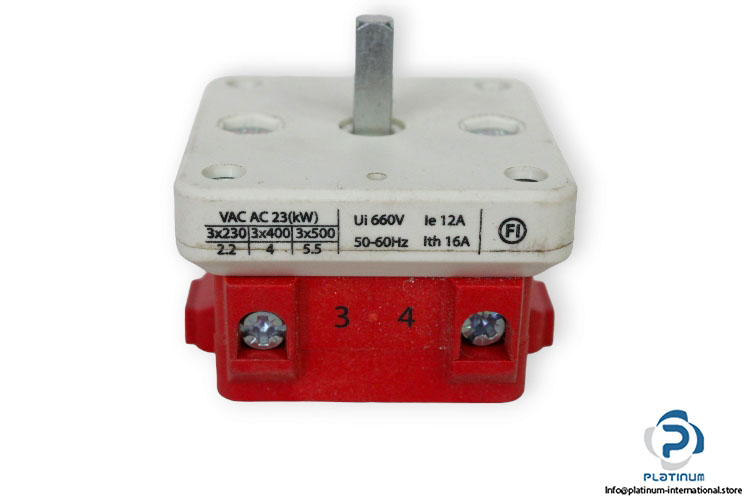

Rated insulation voltage Ui: 660 V
Rated current Ie: 12 A
Thermal current Ith: 16 A
Frequency: 50 … 60 Hz
No. of poles: 2
No. of cells: 1
Wire section: 10 AWG
Rigid wire: 2.5 – 6 mm²
Flexible cable: 2.5 – 6 mm²
Tightening torque: 1.6 Nm
Connection screws: M4
Dimensions: 64 x 48 x 36 mm
