Gefran 1000-R0-1R-0-1 PID Temperature Controller
Neu
Auf Lager1 EinheitVersandbereit
PID Temperature Controller
Gefran 1000R01R01 from the 1000 Series offers reliable process temperature control with PID/autotune, multi-input compatibility, relay and logic outputs, and IP54 protection. Compact 1/8 DIN design with clear LED display.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

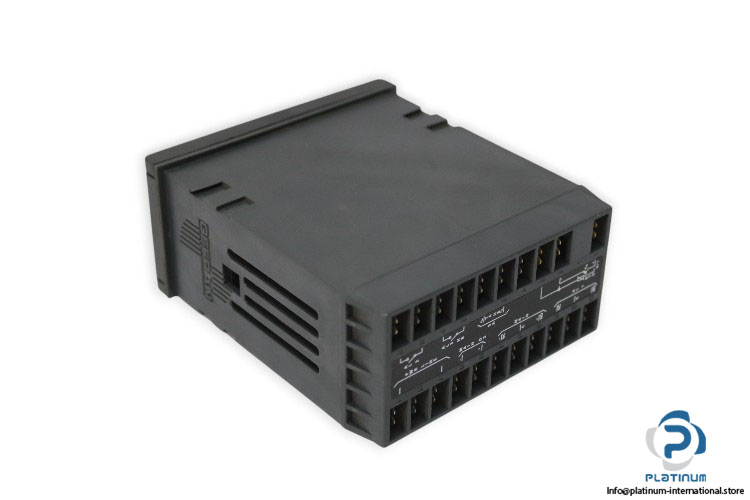

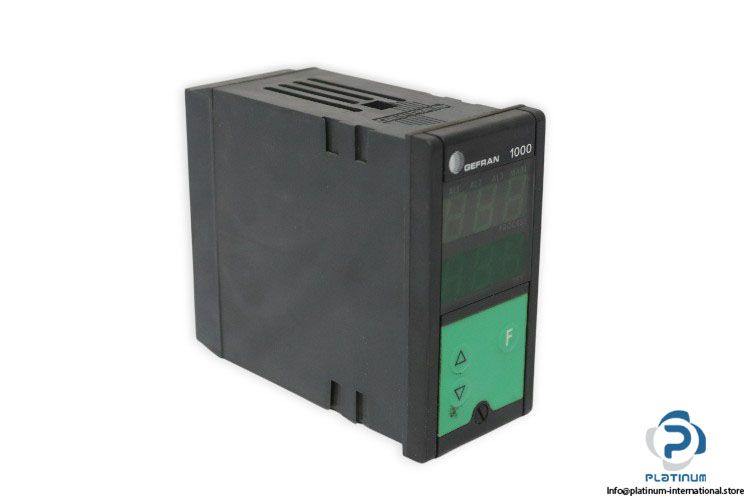

Gefran 1000R01R01 PID Temperature Controller
The Gefran 1000 Series PID Temperature Controller delivers advanced process control with precise regulation and easy configuration. Model 1000R01R01 is built with durable design, clear LED display, and supports multiple input types, making it ideal for industrial temperature management applications.
Manufacturer: Gefran
Type: PID Temperature Controller
Model: 1000R01R01
Series: 1000

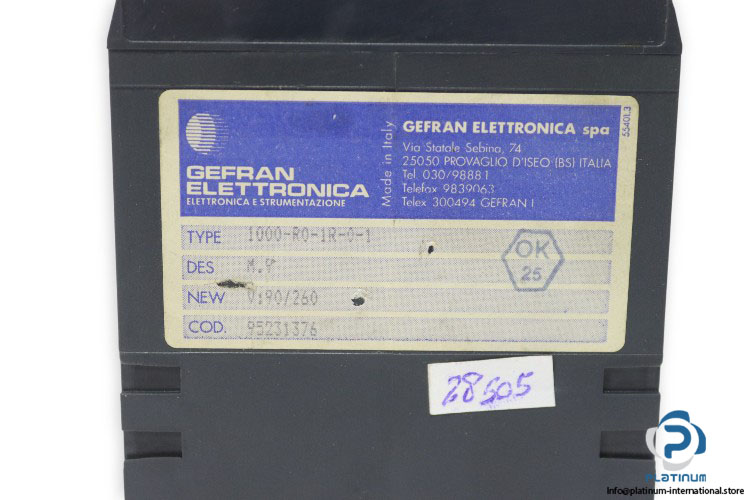

Order Code: 95231376
| Case Size | 1/8 DIN |
| Inputs | Thermocouples (J, K, N, S, R, T), RTD (Pt100, 3-wire), linear (mV, V, mA) |
| Power Supply | 100 to 240 V AC/DC |
| Contact | 2NO |
| Control Output | Relay (5 A, 250 VAC), logic output (24 V DC, max 20 mA); analog output optional (0“20 mA, 4“20 mA) |
| Alarms | One configurable alarm |
| Advanced Control | PID/autotune, soft-start, loop diagnostics |

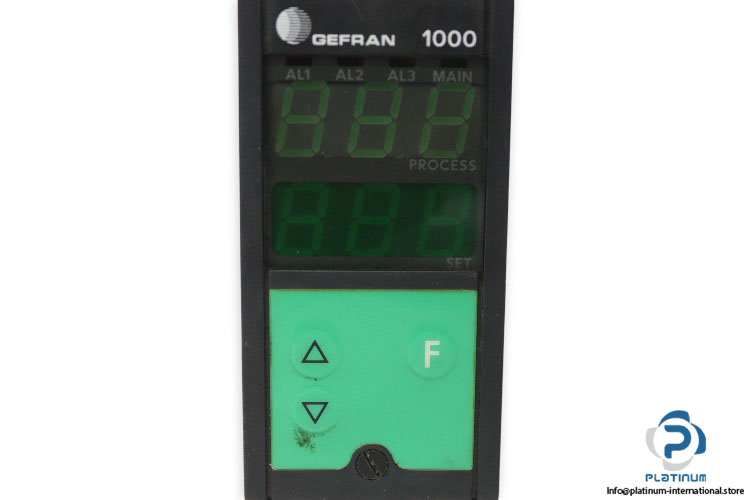

| Display | Green LED display (3 digits) with alarm/output indicators |
| Protection | IP54 front, internal fuse, durable panel design |
| Operating Temperature | 0 to 50 °C |
