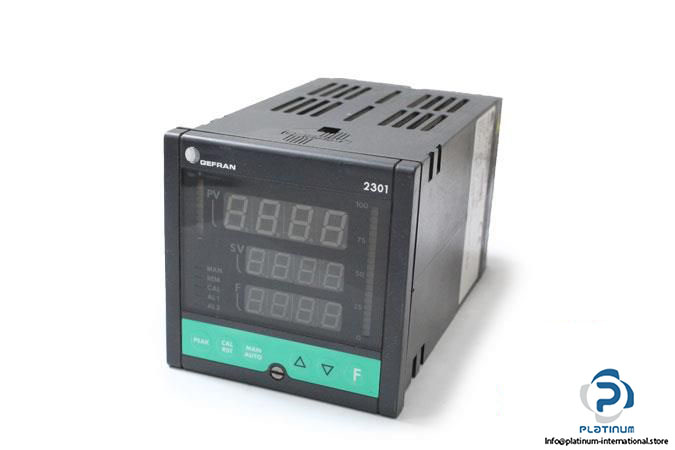

Gefran 2301-SI-0-2R-1 Fast Single Loop Controller

Manufacturer: GEFRAN

Type: Fast Single Loop Controller

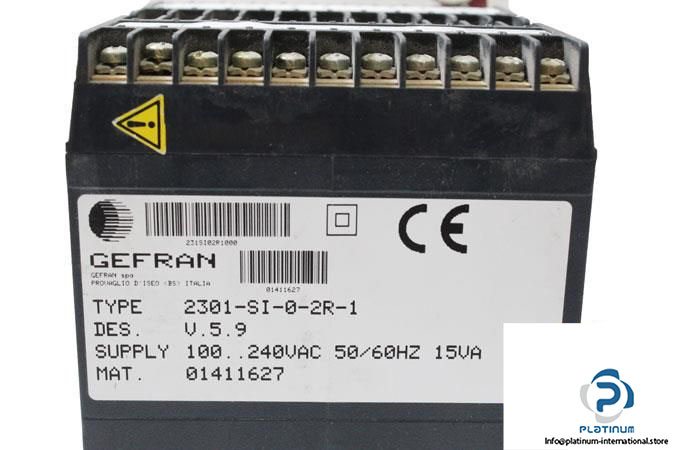

Model: 2301-SI-0-2R-1

Version SI: Controller + 2SPR

Voltage Supply 1: 100 … 240 V AC

Frequency: 50 … 60 Hz

Power: 15 VA

Digital Communication 0: Without Serial

Alarm Outputs 2R: 2 Relay Outputs

Digital Inputs DI: 2

Auxiliary Inputs: 2 Analog

Continuous Outputs: DC Voltage or Current Analog Output

Dimensions: 95 x 96 x 166 mm

Humidity: 20 … 85 %

Ambient Temperature: 0 … 50 °C

Weight: 0.73 kg
