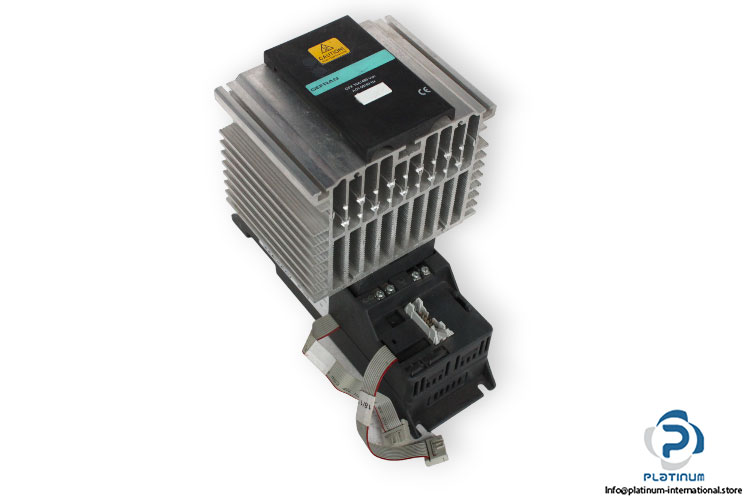

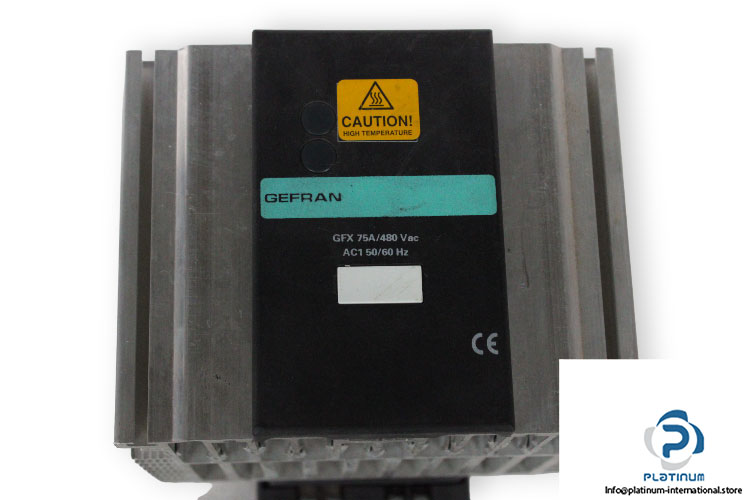

Gefran GFX-E1-75/480-0-0-00-0-C0 Modular Power Controller

Manufacturer: Gefran

Type: Modular Power Controller

Model: GFX-E1-75/480-0-0-00-0-C0

Part No.: F031108



Rated current: 75 A

Rated voltage: 480 V AC

Work Voltage Range: 24 … 530 V AC

Frequency: 50/60 Hz

Alarms: 4 generic alarms, LBA and HB alarms

Output: 2 configurable relay outputs

Protection degree: IP20

Interface Type: Modbus RTU;PROFIBUS DP and CANopen

Working temperature: 0 … 80°C

Dimensions: 225 x 127 x 195 mm

Attachment:

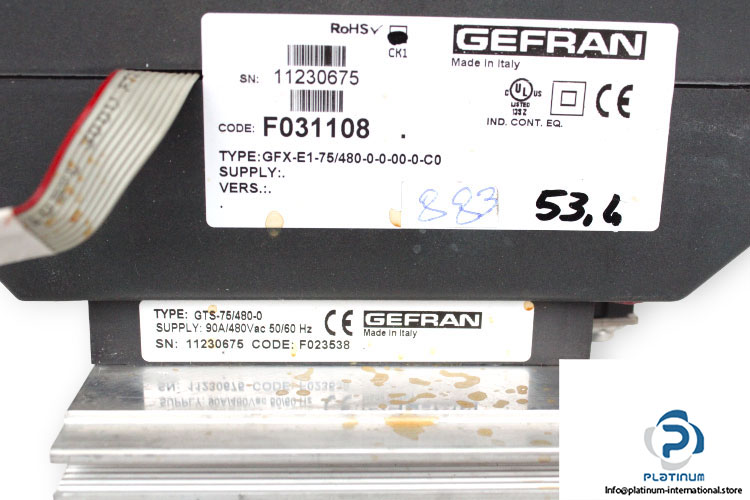

GEFRAN GTS-75/480-0 POWER SOLID STATE RELAYS WITH LOGIC CONTROL

Part No.: F023538

Rated current: 75 A

Rated voltage: 480 V AC

Frequency: 50/60 Hz

Non-repetitive overcurrent t=20 ms: 1300 A

Dimensions: 113 x 112 x 142 mm
