Motion Control Linear Encoders

Gefran MK3AH0200X1 Linear Position Transducer

Name: GEFRAN MK3AH0200X1 LINEAR POSITION TRANSDUCER
SKU: 966692
Price: 450.00 USD
Availability: InStock




Gebraucht

Auf Lager1 EinheitVersandbereit

450,00$

LINEARER POSITIONSSENSOR GEFRAN MK3AH0200X1 magnetostriktiver linearer Sensor mit 200 mm Hub, 0“10Vdc Ausgang und 24Vdc Versorgung. Bietet hohe Genauigkeit und 0,02% Linearität für absolute Wegmessung.

Hersteller

GEFRAN

SKU

966692

Kategorie

Linear Encoders

Zustand

Gebraucht

0-10V 200mm Absolute Displacement Gefran Industrial IP60 Linear Magnetostrictive Measurement MK3AH0200X1 Output Position Sensor Stroke Transducer

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

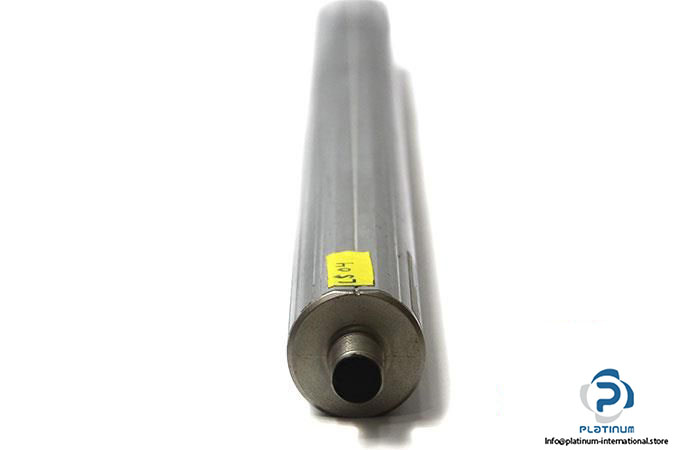

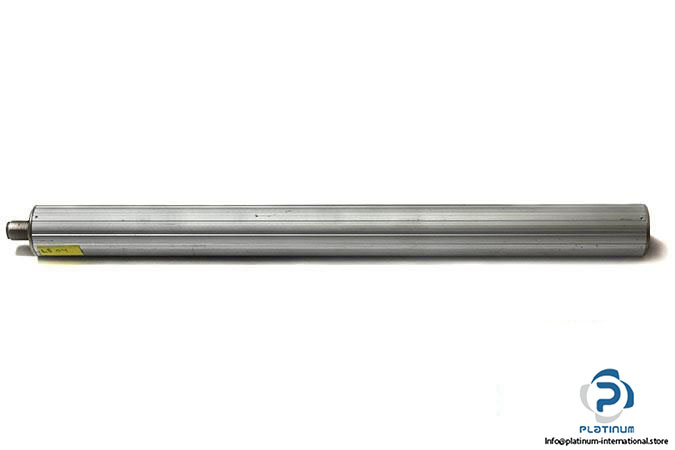

GEFRAN MK3AH0200X1 LINEAR POSITION TRANSDUCER

The GEFRAN MK3AH0200X1 is a high-precision absolute linear position transducer based on magnetostrictive technology. Designed for demanding industrial applications, it provides accurate displacement measurements with fast response and robust design.

Manufacturer: GEFRAN

Type: LINEAR POSITION TRANSDUCER (Magnetostrictive)

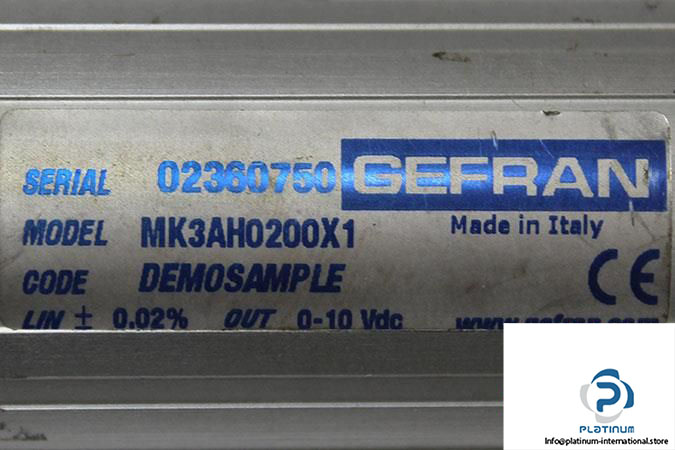

Model: MK3AH0200X1

Code: DEMOSAMPLE

Main Characteristic	Absolute Transducer
Electrical Stroke	200 mm
Power Supply	24Vdc
Output Signal	0 / 10Vdc
Measurement Taken	Displacement
Mounting Type	Plastic Bracket
Sampling Time	1 ms
Resolution	‰¤ 0.1 mV
Electrical Connection	M12 8-pin connector
Linearity	0.02%
Protection Class	IP60
Temperature Range	-30 / 75°C
