Motion Control Linear Encoders

Gefran MK4-A-B-0400-E-LINEAR Position Transducer

Name: GEFRAN MK4-A-B-0400-E-LINEAR POSITION TRANSDUCER
Brand: GEFRAN
SKU: 966697
Availability: LimitedAvailability





Gebraucht

Auf Lager1 EinheitVersandbereit

Linearer Wegaufnehmer GEFRAN MK4-A-B-0400-E mit ONDA-Technologie, 0,02% Linearität, 400 mm Hub und 4“20 mA Ausgang. Für industrielle Anwendungen mit 24 VDC Stromversorgung und IP67 Schutz ausgelegt.

Hersteller

GEFRAN

SKU

966697

Kategorie

Linear Encoders

Zustand

Gebraucht

24VDC 4-20 400 Gefran Industrial IP67 Linear mA MK4-A-B-0400-E mm Onda Output Position Sensor Stroke technology Transducer

Umfangreiches Lager

Weltweiter Versand

Experten-Support

Qualitätsgarantie

GEFRAN MK4-A-B-0400-E LINEAR POSITION TRANSDUCER

The GEFRAN MK4-A-B-0400-E is a high-precision linear position transducer that utilizes ONDA technology for accurate and reliable performance in industrial automation environments. With excellent linearity and IP67 protection, it ensures dependable operation in harsh conditions.

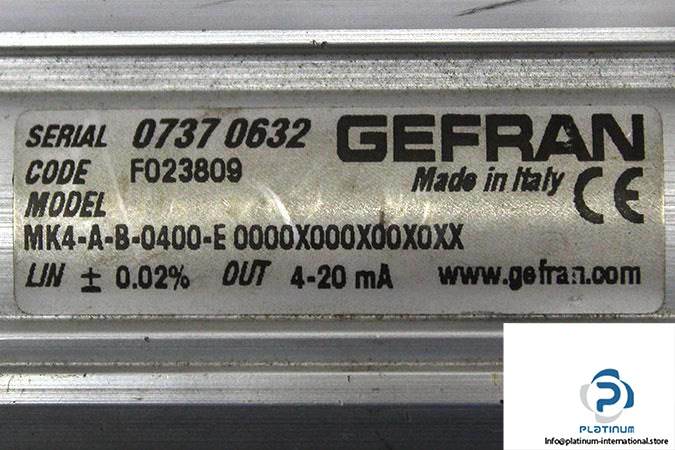

Manufacturer: GEFRAN

Type: Linear Position Transducer

Model: MK4-A-B-0400-E

Code: F023809

S No.: 0737 0632

Main Characteristic	ONDA technology
Linearity	0.02%
Power Supply	24 VDC
Output Signal	4 / 20 mA
Electrical Stroke	400 mm
Sampling Time	1 ms
Maximum Consumption	70 mA
Resolution	16 Bit

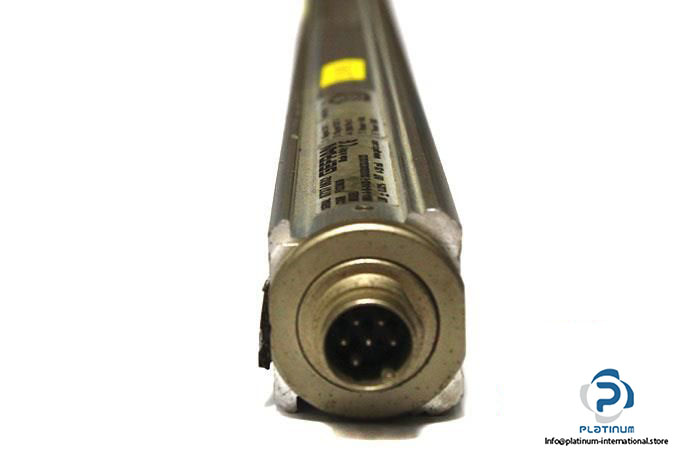

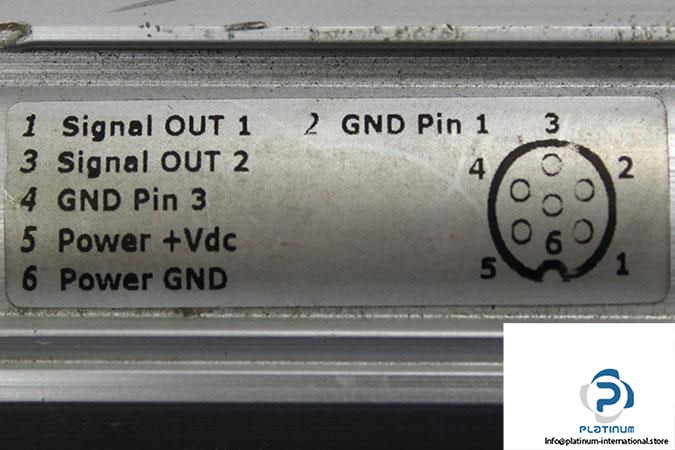

Electrical Connection	DIN45322 6-pin connector output
Protection Class	IP67
Temperature Range	-30 / 75°C
