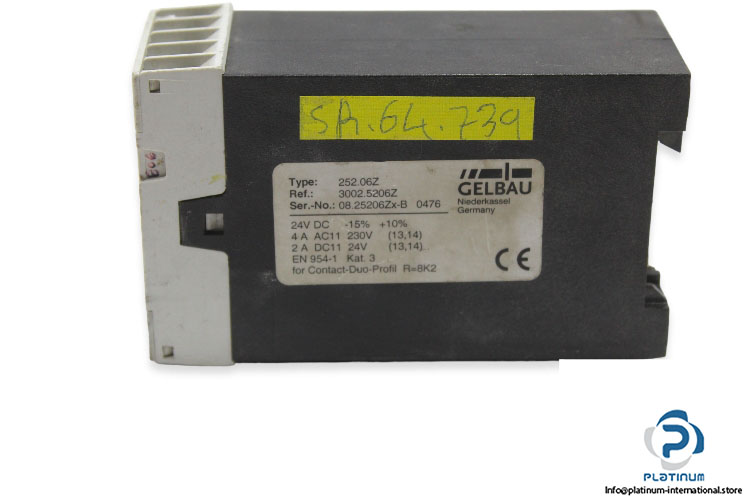

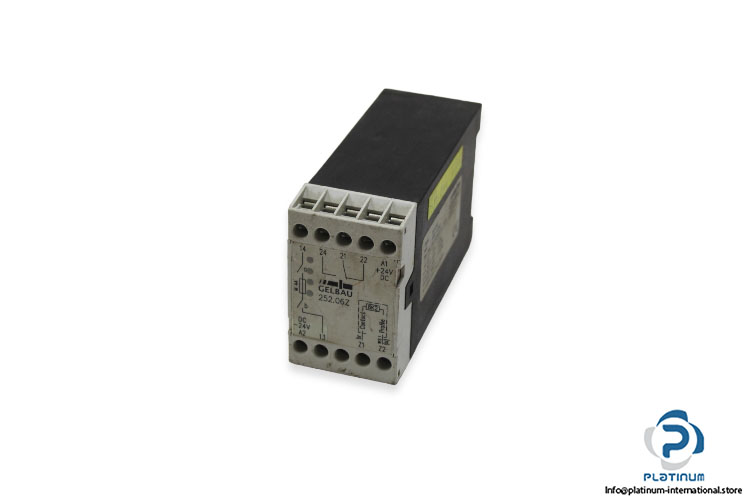

Gelbau 252.06Z Safety Relay

Manufacturer: GELBAU

Type: Safety Relay

Model: 252.06Z

Art No.: 3002.5206Z

Supply voltage: 24 V DC -15% +10%

Rated power: 3 VA

Isolation: Power Pack Potential-Isolated

Functions output: 1 output with 2 relays each with 1 NO contact in series

Additional function: Changeover contact (Single pole double through)

Relay contacts switching voltage: AC11: 230V, 4A / DC11: 24V, 2A

Operating Temperature: -20 … +55 °C

Degree of Protection: Housing IP 40, Contacts IP 20

Dimensions: 45 x 75 x 120 mm
