Gems 1000BGC4001A3UA Pressure Switch
GEMS 1000BGC4001A3UA Druckschalter mit 400 BAR G Bereich, 4 bis 20 mA Ausgang und 12 bis 35 VDC Versorgungsspannung. Verfügt über eine G 1/4 Gewindeverbindung und Kabeleinführung für einfache Installation.

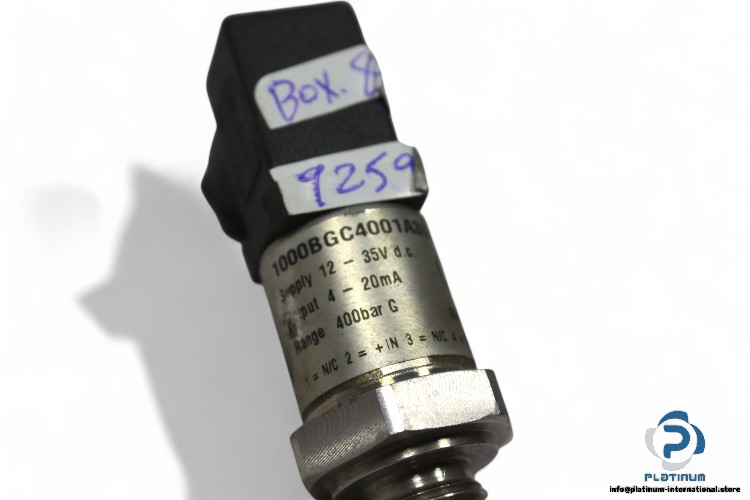

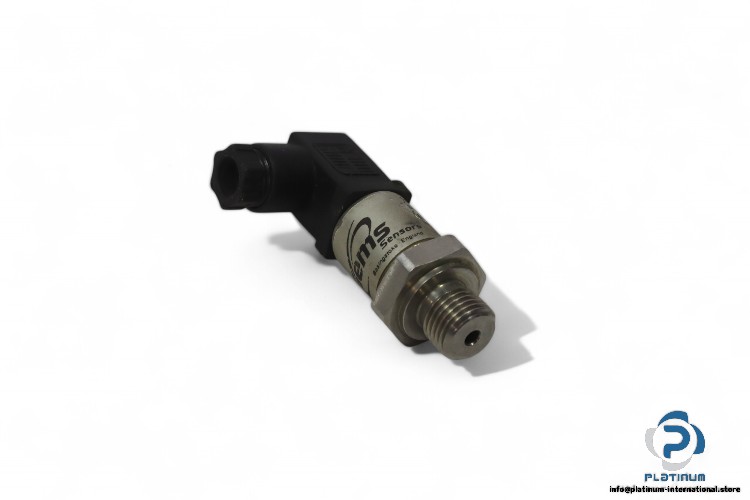

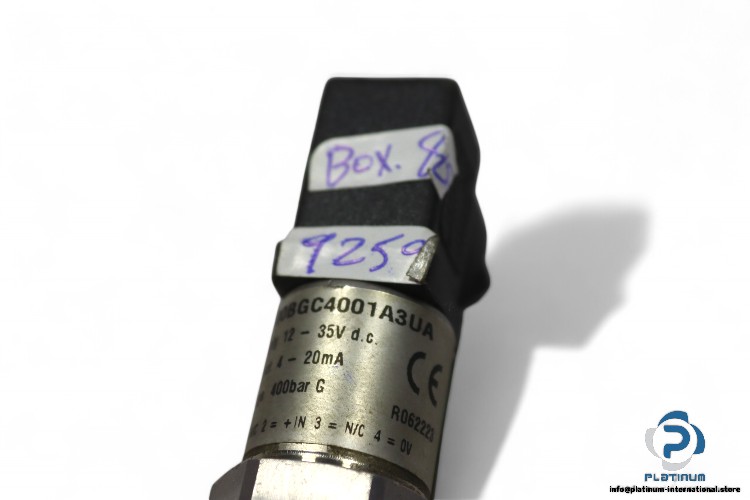

GEMS 1000BGC4001A3UA Pressure Switch
The GEMS 1000BGC4001A3UA Pressure Switch is a highly reliable and efficient pressure monitoring solution for industrial systems. Designed for precision, this switch features a robust build and delivers consistent performance in demanding environments. With a pressure range of 400 BAR G, it™s ideal for high-pressure applications.
🔧 Technical Specifications:
- Manufacturer: GEMS
- Type: Pressure Switch
- Model: 1000BGC4001A3UA
- Reference No.: R062223
- Supply Voltage: 12 to 35 VDC
- Output Signal: 4 to 20 mA
- Pressure: 400 BAR G
- Connection: G 1/4, Threaded
- Electrical Connection: Cable Entry
The 1000BGC4001A3UA offers a standard output signal of 4 to 20 mA for easy integration into control systems. With a supply voltage range of 12 to 35 VDC, this pressure switch is highly adaptable to various power configurations. Its G 1/4 threaded connection ensures secure and efficient installation, while the cable entry design simplifies electrical integration.
