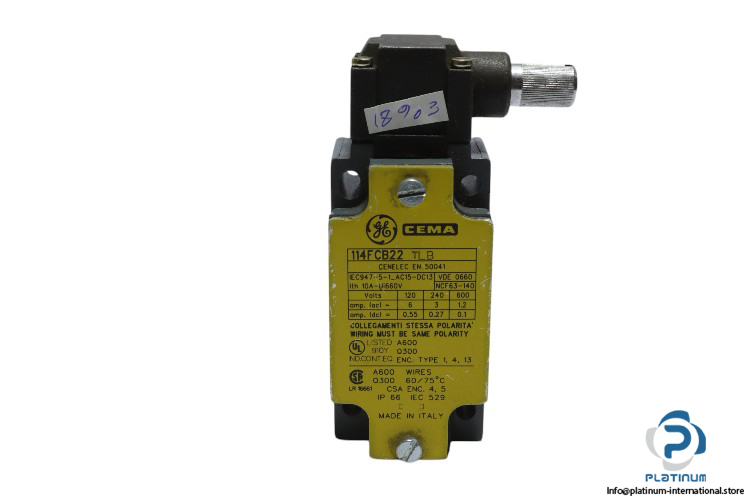

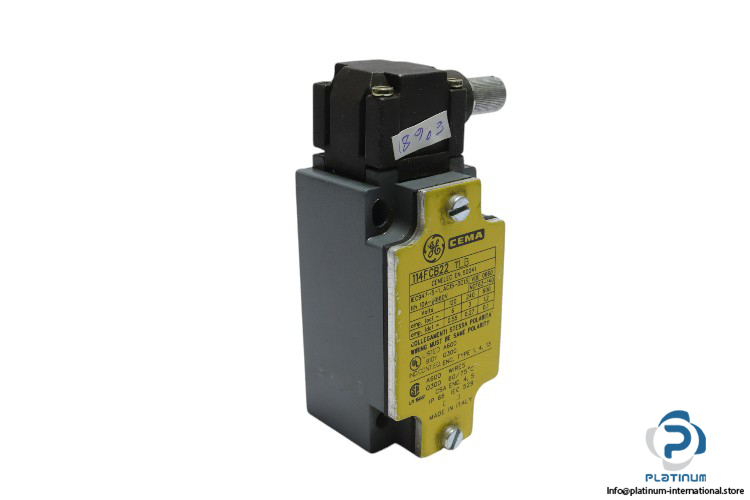

General Electric 114FCB22 TLB Position Switch

General Electric (GE) 114FCB22TLB Position Switch

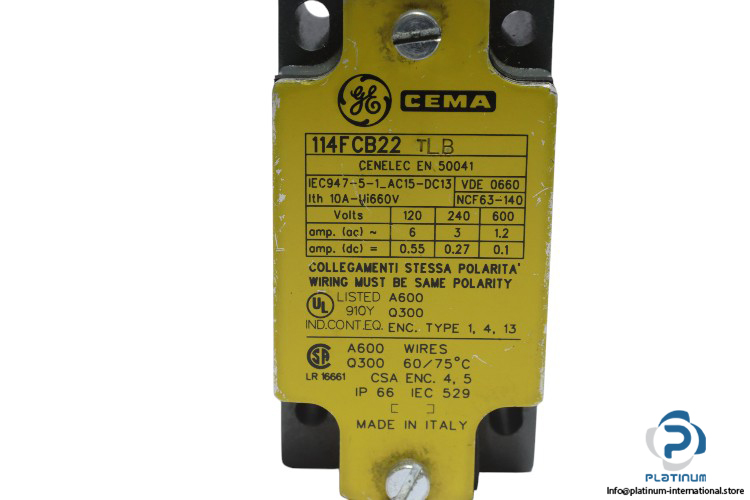

The **General Electric (GE) 114FCB22TLB Position Switch** is a versatile industrial switch designed for high-performance applications. It supports **switching voltages** of **120, 240, and 600 V AC/DC**, with varying **contact current ratings** depending on the voltage. The switch offers a **maximum contact current** of **6 A at 120 V AC**, **3 A at 240 V AC**, and **1.2 A at 600 V AC**, making it adaptable for different systems. For DC applications, it supports **0.55 A at 120 V DC**, **0.27 A at 240 V DC**, and **0.1 A at 600 V DC**. With a **thermal current of 10 A** and a **660 V insulation voltage** rating, it ensures reliable operation under heavy load conditions. Designed for durability, this position switch features an **IP66 protection class**, making it suitable for harsh environments. It operates within an **ambient temperature range** of **60 to 75°C** and complies with key industry standards including **IEC947-5-1**, **EN 50041**, and **VDE 0660**.

Manufacturer: General Electric (GE)

Type: Position Switch

Model: 114FCB22TLB

The **General Electric (GE) 114FCB22TLB Position Switch** ensures robust performance, high durability, and flexibility, making it suitable for a wide range of industrial and commercial applications.
