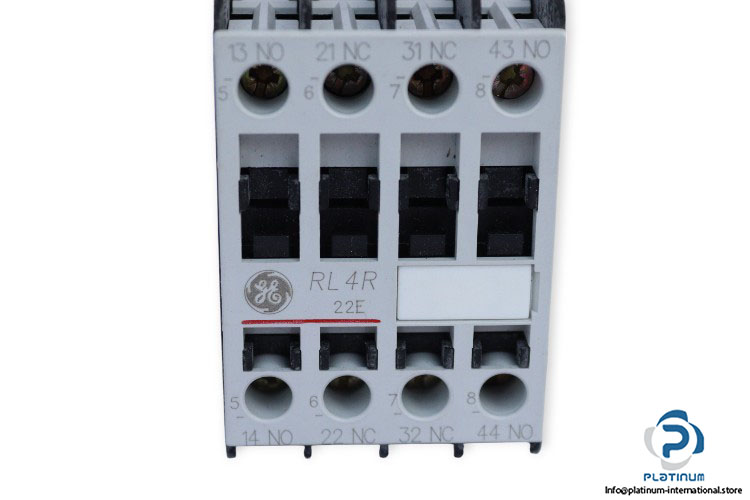

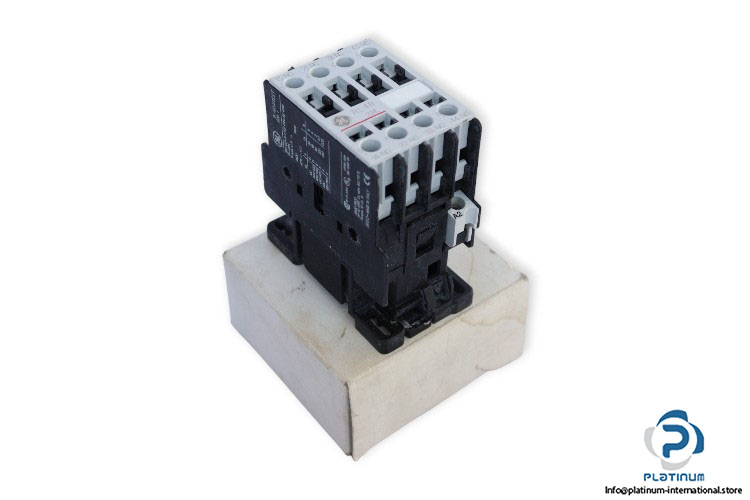

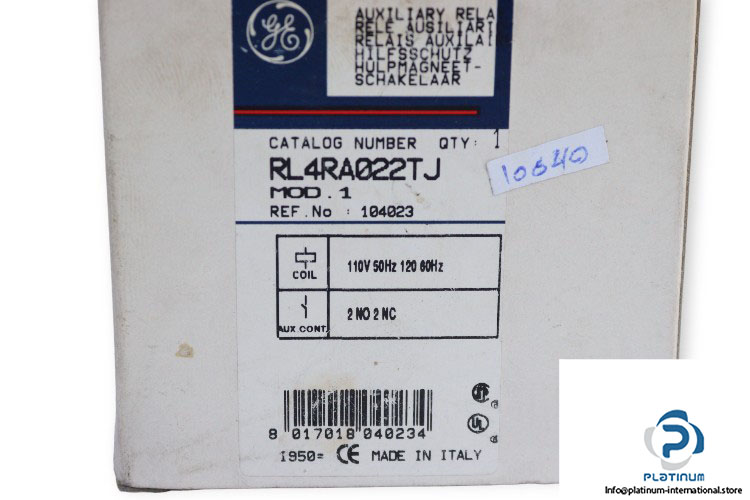

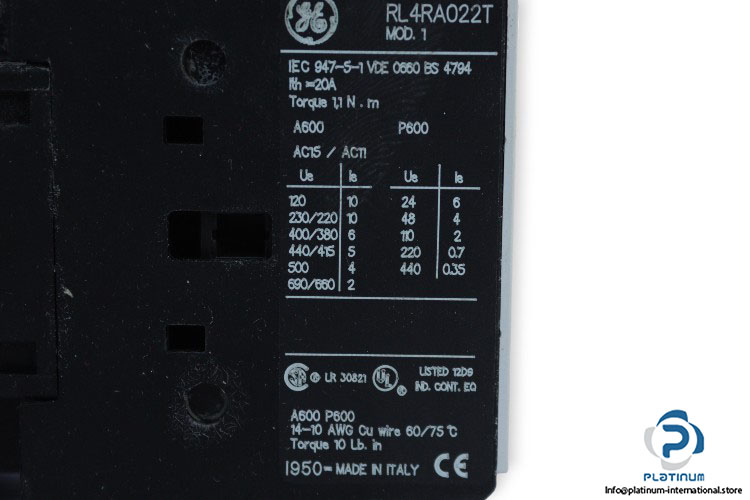

General Electric RL4RA022TJ Control Relay
Neu
Auf Lager7 EinheitenVersandbereit
Typ: Steuerrelais
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie
Manufacture: General Electric
Type: Control Relay
Model: RL4RA022TJ
Series: RL4R
No. of Poles: 4

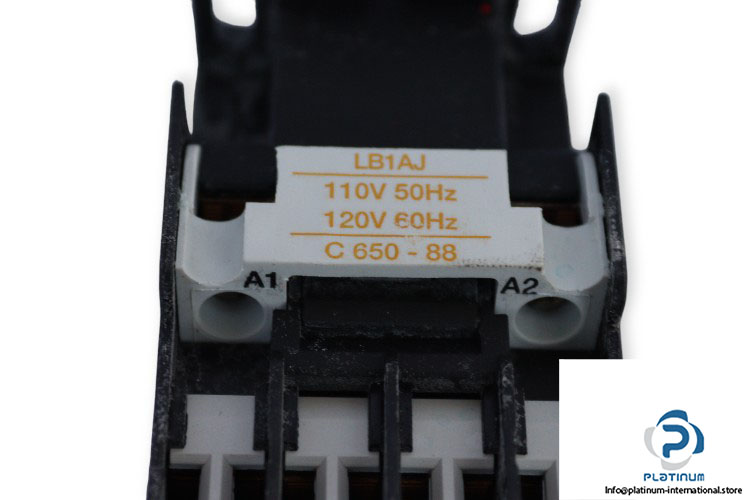

Coil voltage: 110 V AC@50 Hz,120 V AC@60 Hz
Rated voltage Ie: 6 A @380 /400 V AC
Standard: IEC / EN 60947-2
Frequency: 50/60 Hz
Impulse with stand voltage Uimp: 6 kV
Aux. Contact: 2NO,2NC
Operational short-circuit current breaking capacity (Ics) at AC: 400V, 100 kA
Maximum short-circuit current breaking capacity (Icu) at AC: 400V, 100 kA
Thermal current Ith: 20 A
Torque: 1.1 N.m
Coil Suffix: J
Terminal: Screw Terminal
Mounting: DIN Rail
