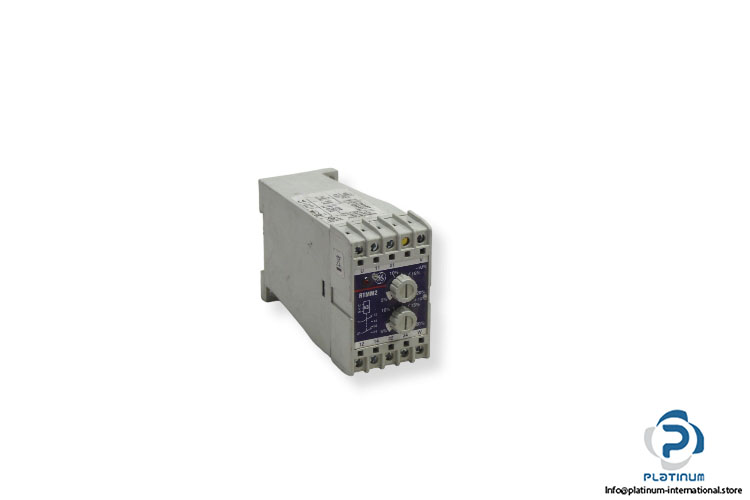

General Electric RTMM2 Voltage Protection Relay

Manufacturer: General Electric

Type: Voltage Protection Relay

Model: RTMM2

Supply voltages: 220 V/ 3-PHASE

Power Consumption: 3 VA

Output

Contact: 2 changeover contact (NO,NC)

Voltage Ui: 380 V AC

Thermal current Ith: 6 A

Utilisation AC-15

Rated voltage Ue: 120/240 V

Rated current Ie: 2.5/1.3 A

Utilisation DC-13/DC-11

Rated voltage Ue: 110/220 V , 24/48 V

Rated current Ie: 0.2/0.1 A, 2/1 A

Frequency: 50 … 60 Hz

Degree of protection: IP 40

Operating temperature: -5 … 50°C

Dimensions: 77 x 114 x 45 mm
