Name: GERWAH AKD30-10-14 BELLOWS COUPLING
SKU: 1002395
Availability: LimitedAvailability

Manufacturer: GERWAH
Type: Bellows Coupling
Model: AKD30-10-14
Art No.: N/A
MNR.: N/A

Size: 30
Material: Aluminum
Bore diameter d1/ d2: 10 mm/ 14 mm
Outer diameter: 55 mm
Total length: 73 mm
Torque: 36 Nm
Torsional stiffness: 25000 Nm/rad
Radial spring stiffness: 220 N/mm
Axial spring stiffness: 30 N/mm
Shaft Fastening Method: Clamping hubs with keyway

Spezifikation	Wert
Weight	0,32 kg
Condition	New
Part No.	N/A
Shelf No.	230308
Size	30
Material	Aluminum
Length [mm]	73
Bore Diameter d1/d2 [mm]	10 / 14
Outer Diameter [mm]	55
Total length	73 mm
Torque [Nm]	36
Torsional Stiffness [Nm/rad]	25000
Radial Spring Stiffness [N/mm]	220
Axial Spring Stiffness [N/mm]	30
Shaft Fastening Method	Clamping Hubs with Keyway

Preis	Auf Anfrage
Lager	1 Auf Lager
Kategorie	Couplings
Zustand	Neu
SKU	1002395

Weight	0,32 kg
Condition	New
Part No.	N/A
Shelf No.	230308
Size	30
Material	Aluminum
Length [mm]	73
Bore Diameter d1/d2 [mm]	10 / 14
Outer Diameter [mm]	55
Total length	73 mm
Torque [Nm]	36
Torsional Stiffness [Nm/rad]	25000
Radial Spring Stiffness [N/mm]	220
Axial Spring Stiffness [N/mm]	30
Shaft Fastening Method	Clamping Hubs with Keyway

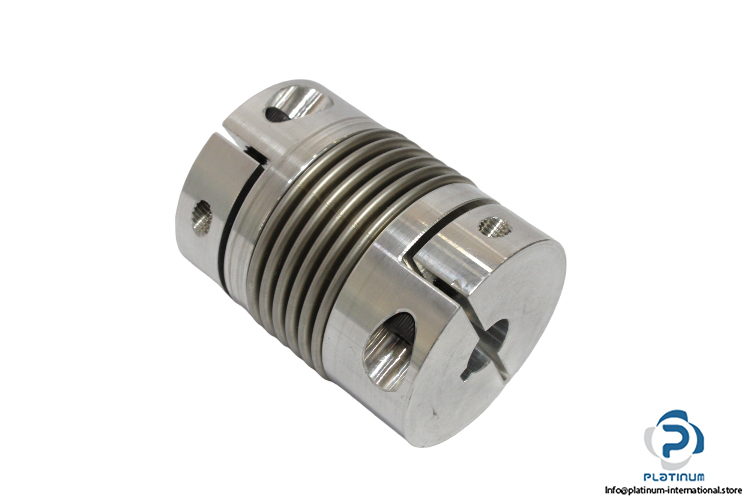

Gerwah AKD30-10-14 Bellows Coupling
