+GF+ 024 199024343 Diaphragm Valve
Neu
Auf Lager1 EinheitVersandbereit

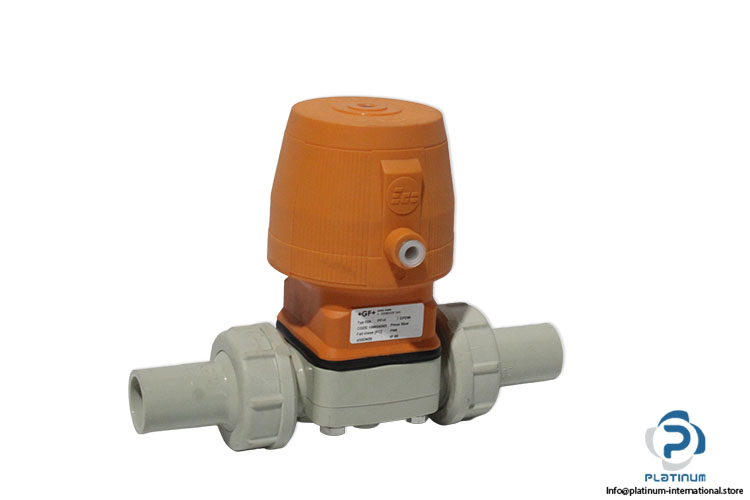

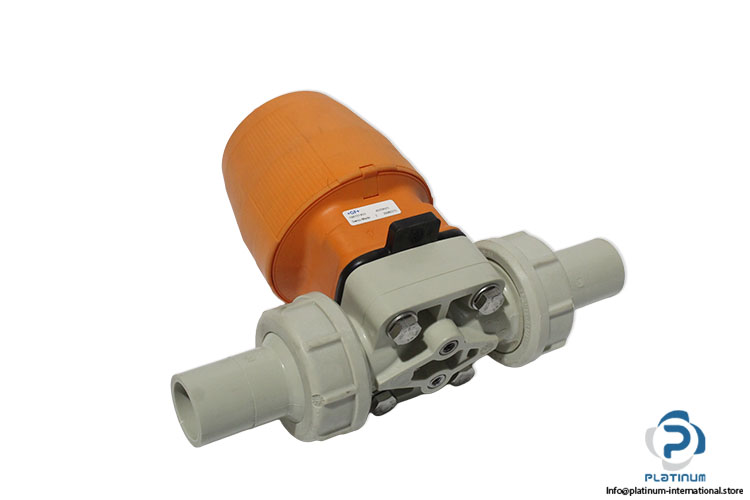

Diaphragm Valve with Position Indicator GF Georg Fischer 024 pneumatic diaphragm valve with fail-safe close operation, PP-H construction, EPDM seals, and pneumatic actuator for industrial flow control.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

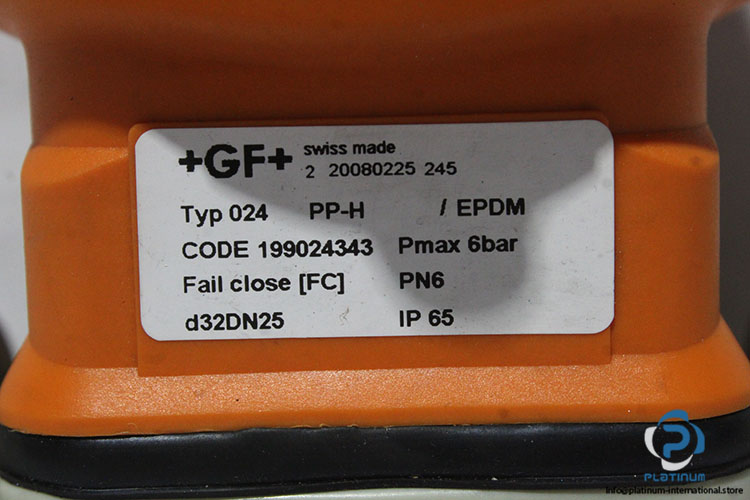

| Part No. | 199 024 343 |
| Actuation Mode | Pneumatic - FC (Fail Safe to Close) |
| Nominal Pressure | 6 bar |
| Pressure Max. | 6 bar |
| Diameter | 32 - 25 mm |
| Material | PP-H |
| Seals | EPDM |
| Protection Class | IP65 |
| Attachment | GF+ 028 198151453 PNEUMATIC ACTUATOR |
| Pneumatic Actuator Manufacturer | +GF+ GEORG FISCHER |
| Attachment Type | Pneumatic Actuator |
| Pneumatic Actuator Model | 024 |

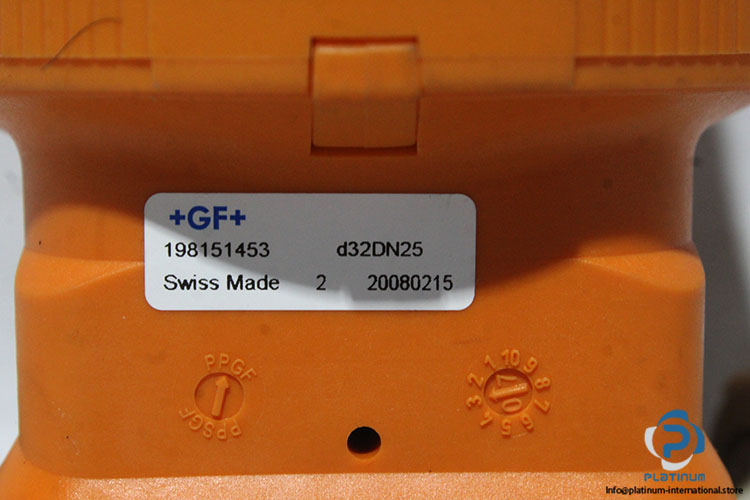

| Pneumatic Actuator Part No. | 198 151 453 |
| Pneumatic Actuator Ref. No. | 2 20080215 |
| Pneumatic Actuator Diameter | 32 - 25 mm |
| Pneumatic Actuator Material | PP-H |
| Pneumatic Actuator Seals | EPDM |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103624 |
| Weight | 1,57 |
