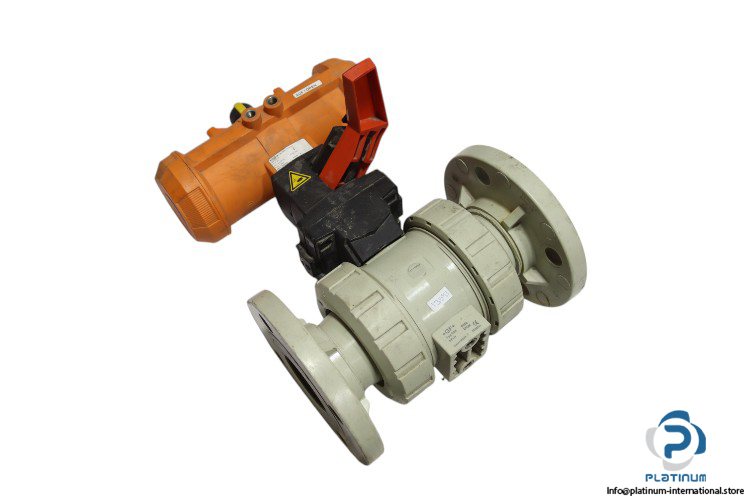

+GF+ 546 DN50 Ball Valve
Gebraucht
Auf Lager1 EinheitVersandbereit
Ball Valve and Pneumatic Actuator
Georg Fischer +GF+ 546 DN50 Ball Valve with a 50 mm nominal diameter and 10 bar pressure rating. Includes a PA21 Pneumatic Actuator, designed for fail-close operation, with a pressure range of 5.6 to 7 bar.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

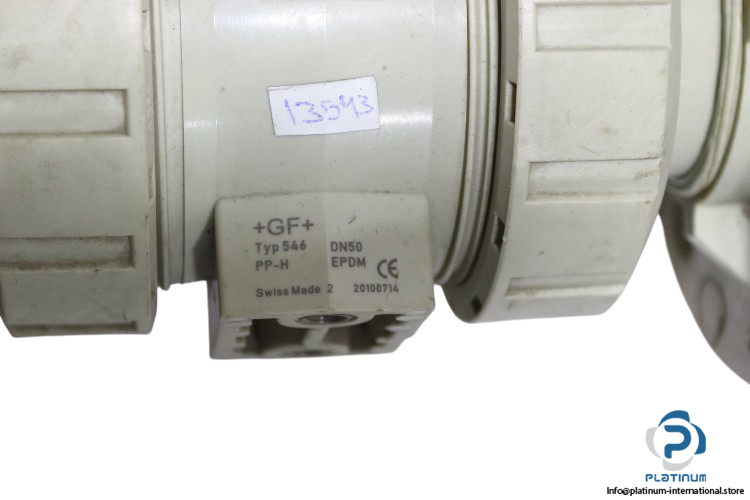

Georg Fischer +GF+ Ball Valve 546 DN50
The Georg Fischer +GF+ Ball Valve 546 DN50 is a high-quality valve designed for precise control in industrial applications. It offers durable construction and reliable operation under various pressure conditions.
Manufacturer: Georg Fischer +GF+
Type: Ball Valve
Model: 546 DN50
Part No.: 20100714

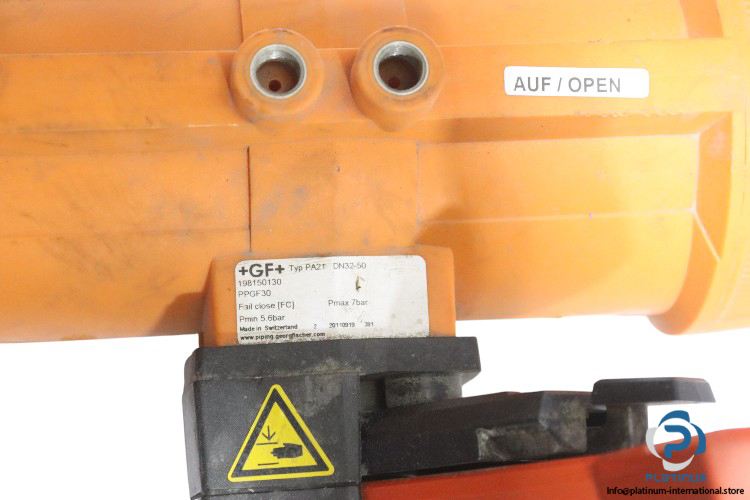

Georg Fischer +GF+ Pneumatic Actuator PA21
Technical Information:
| Size | 2 inch |
| Actuation Variant | Manually operated (lockable hand lever) |
| Nominal Diameter | 50 mm |
| Nominal Pressure | 10 bar |
| Valve Body | PP-H |
| Gasket Materials (O-rings) | EPDM |
| Attachment | Georg Fischer +GF+ PA21 Pneumatic Actuator |
| Part No. | 198150130 / 20110119 |
| Design | Fail close [FC], valve or system will automatically close |
| Nominal Diameter | 32 to 50 mm, 1 1ˆ•4 to 2 inch |
| Pressure | 5.6 to 7 bar |
| Material | PPGF30 |
