Ghisalba GH15GN-04-00 Contactor
Neu
Auf Lager3 EinheitenVersandbereit
129,99$
Schütz GHISALBA GH15GN0400 mit 110/115 V Spule, 43 kW bei 400 V Nennleistung, 63 A thermischer Strom, 4 NC-Kontakte und Schutzart IP20.
Umfangreiches Lager
Weltweiter Versand
Experten-Support
Qualitätsgarantie

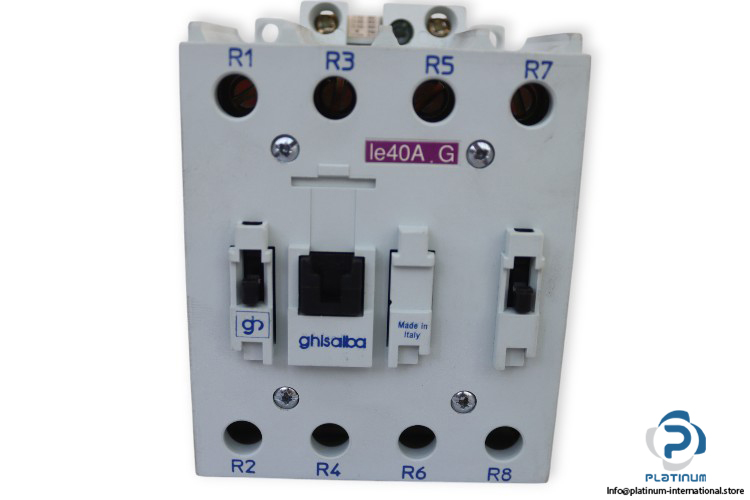

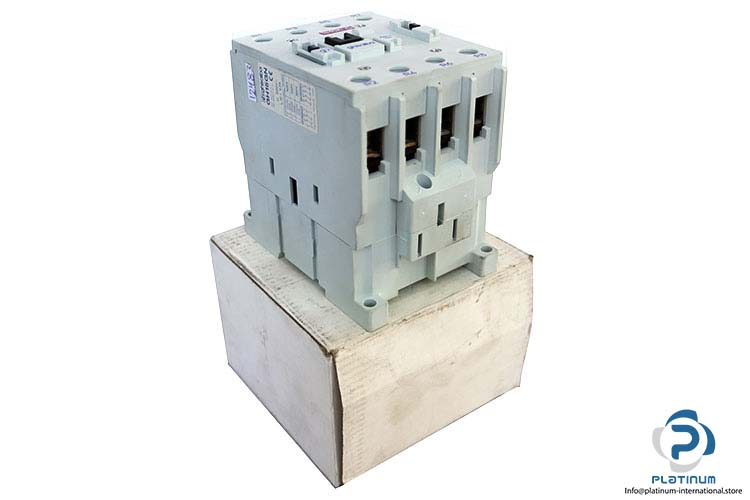

GHISALBA GH15GN0400 Contactor
The GHISALBA GH15GN0400 is a robust industrial contactor engineered for reliable switching and control of electrical loads. Designed for high thermal and operational currents, it complies with international standards, offering durability and consistent performance for 3-phase applications.
Manufacturer: GHISALBA
Type: Contactor
Model: GH15GN0400
Part No.: 8409427

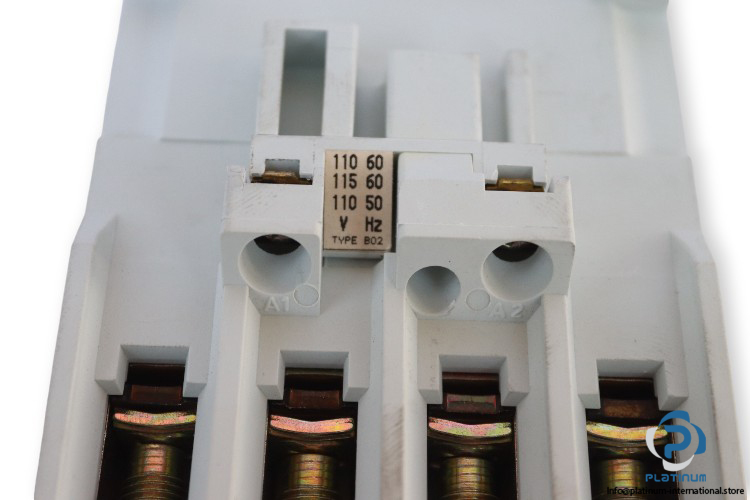

| Control Supply Voltage | 110 V, 50/60 Hz “ 115 V, 60 Hz |
| Max Operating Power for 3-Phase Loads | 43 kW @ 400 V |
| Thermal Current (Ith) | 63 A |
| Rated Current AC-1 (Ie) | 63 A |
| Rated Current AC-3 (Ie) | 40 A |
| Rated Insulation Voltage (Ui) | 500 V AC |
| Rated Impulse Withstand (Uimp) | 6 kV |
| Breaking Capacity | 100 A @ 500 V |

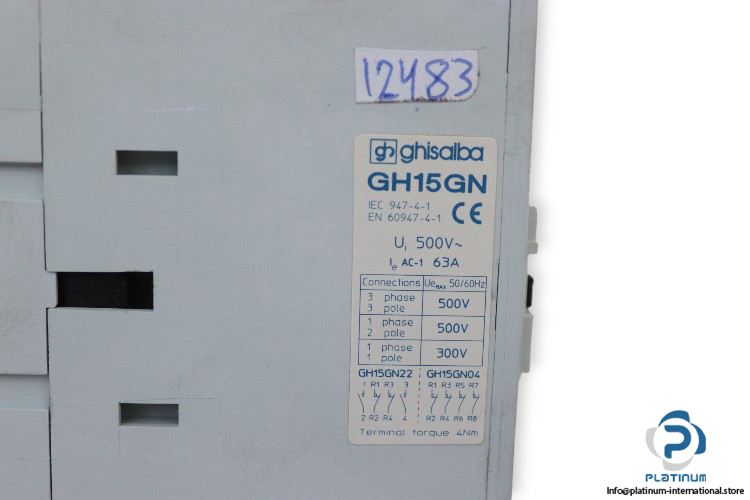

| Standard | IEC 947-4-1, EN 60947-4-1 |
| Contact | 4 Normally Closed |
| Nominal Torque | 4 Nm |
| No. of Poles | 4 |
| Fixing | Screws fixing or rail mounting (DIN 35 mm) |
| Protection Degree | IP20 |
