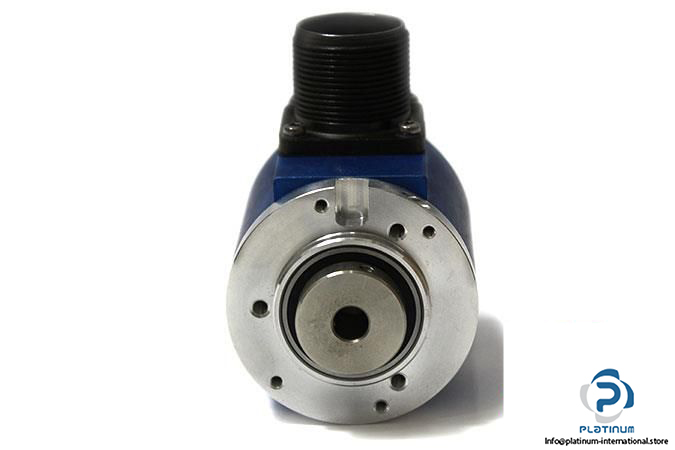

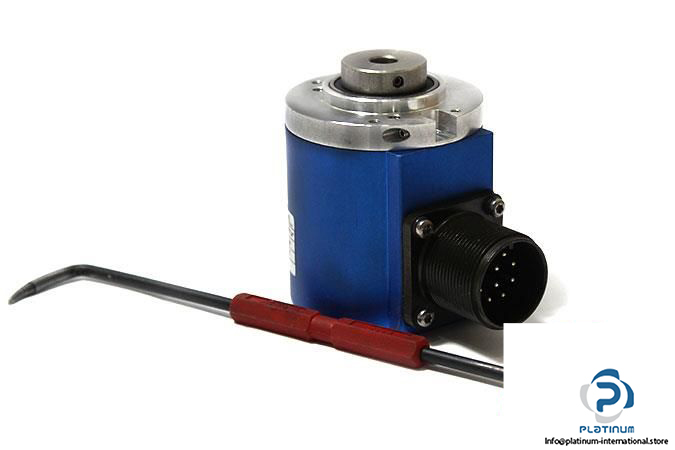

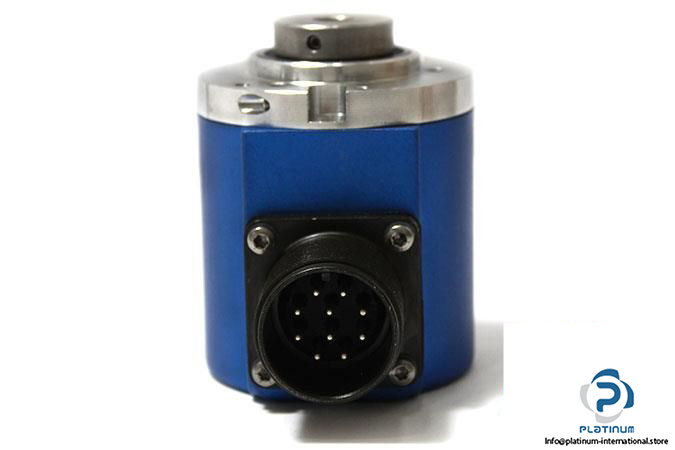

Givi Misure EN58SC Optical Encoder
199,99$
Optischer Encoder GIVI MISURE HR 02000 0528 D08CF LD4 ist ein hochauflösender optischer Encoder mit 2000 PPR, TTL-Ausgang und IP65-Schutz. Entwickelt mit einem Hohlwelle und 5"28 VDC Versorgung für zuverlässige industrielle Leistung.

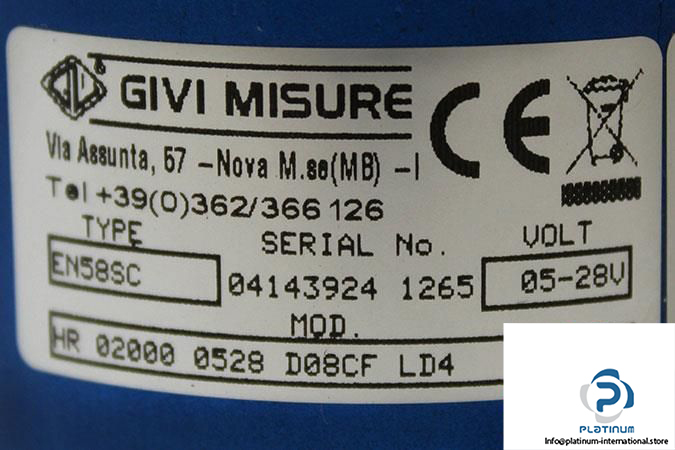

GIVI MISURE HR 02000 0528 D08CF LD4 OPTICAL ENCODER
This high-resolution optical encoder by GIVI MISURE is engineered for accurate positioning and speed feedback in industrial automation systems. Featuring a hollow shaft design, robust protection, and high pulse frequency, it is ideal for applications requiring precision and durability.
Manufacturer: GIVI MISURE
Type: Optical Encoder
Model: HR 02000 0528 D08CF LD4
MNR: EN58SC
S No.: 04143924 1265
| Shaft Design | Hollow shaft |
| Hole Diameter & Depth | 15 mm |
| Shaft Diameter | 8 mm |
| Voltage Supply | 5 / 28 VDC |
| Resolution | 2000 pulses per revolution (PPR) |
| Max. Current Consumption | 30 mA |
| Output Circuit | Line driver (TTL) |
| Pulse Frequency | Max. 300 kHz |
| Protection Class | IP65 |
| Operating Temperature | -20 / 80 °C |
