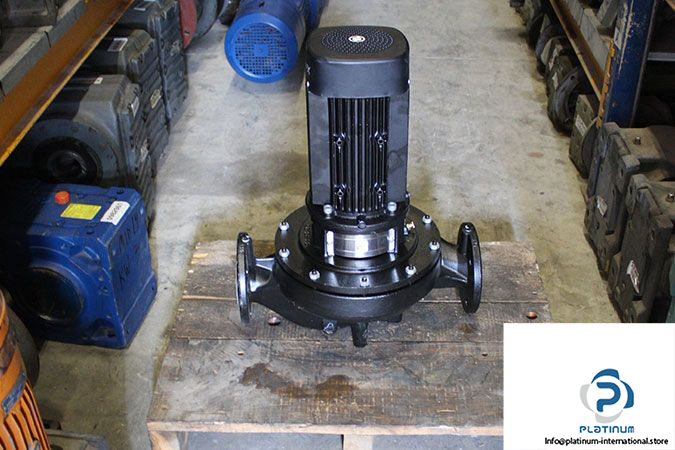

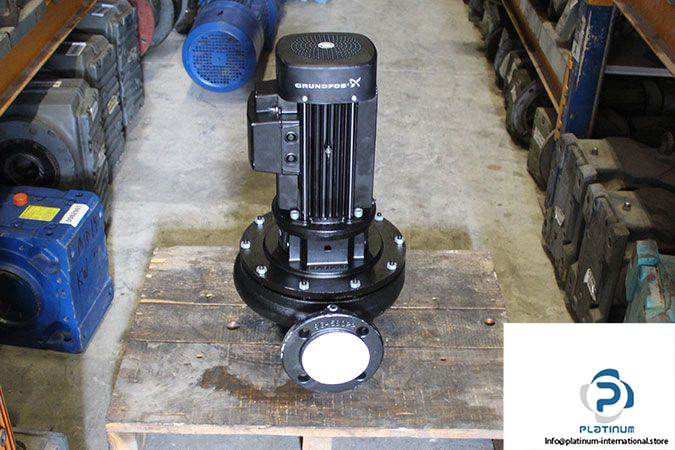

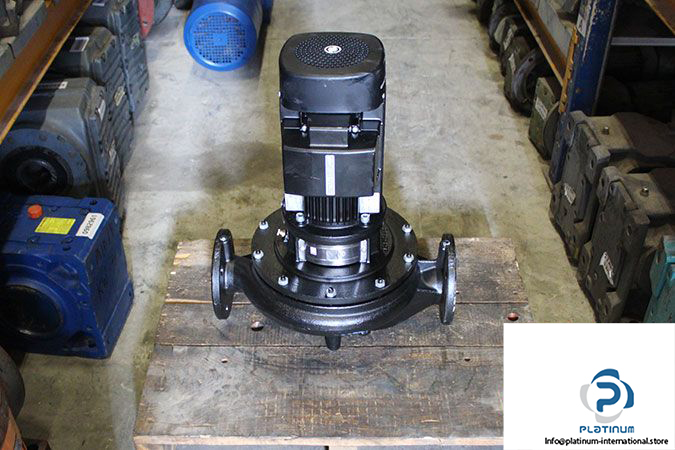

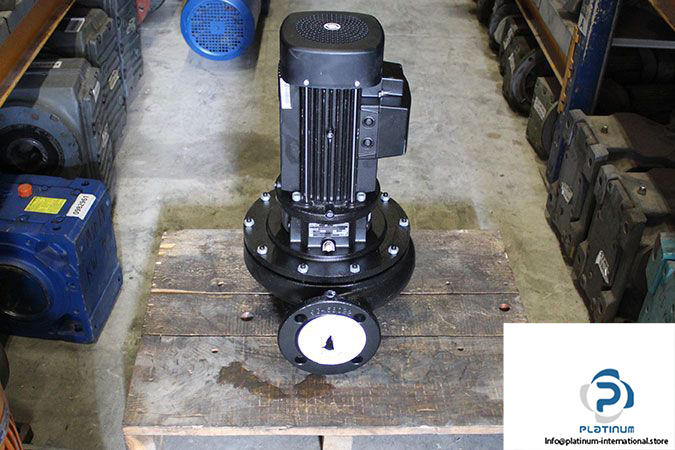

Grundfos TP 65-110/4 A-F-A-BQQE-GX3 Inline Single Stage Pump
INLINE EINSTUFIGE PUMPE Grundfos TP65-110/4A-F-A-BQQE-GX3 liefert 26,8 m³/h bei 9,5 m Förderhöhe für gewerbliche Heiz- und Kühlsysteme. Angetrieben von einem 1,1 kW IE3-Motor bietet sie hohe Effizienz und Langlebigkeit mit Gusseisenkonstruktion.
GRUNDFOS TP65-110/4A-F-A-BQQE-GX3 INLINE SINGLE STAGE PUMP
The Grundfos TP65-110/4A-F-A-BQQE-GX3 is a robust and energy-efficient inline single stage pump designed for high-demand commercial applications such as air conditioning and heating systems. With superior hydraulic performance and durable construction, this unit ensures long-term operational reliability.
Manufacturer: Grundfos
Type: Inline Single Stage Pump

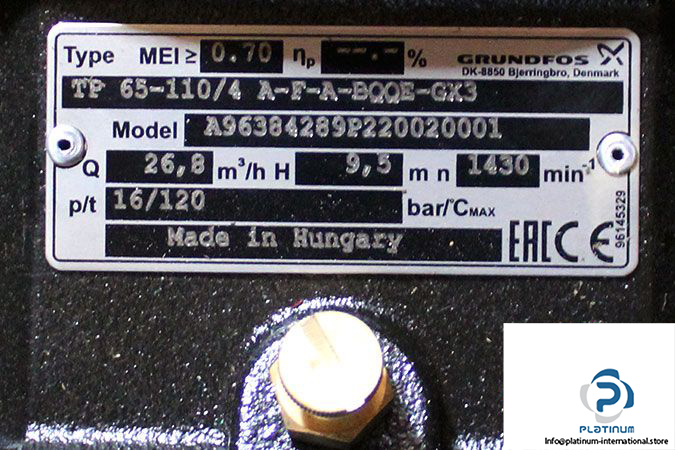

Model: A96384289P220020001
MNR: TP65-110/4A-F-A-BQQE-GX3
Applications
Commercial Air Conditioning
Commercial Heating

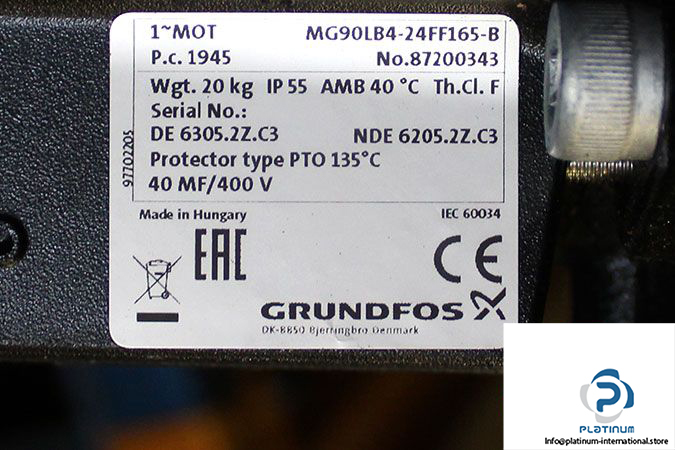

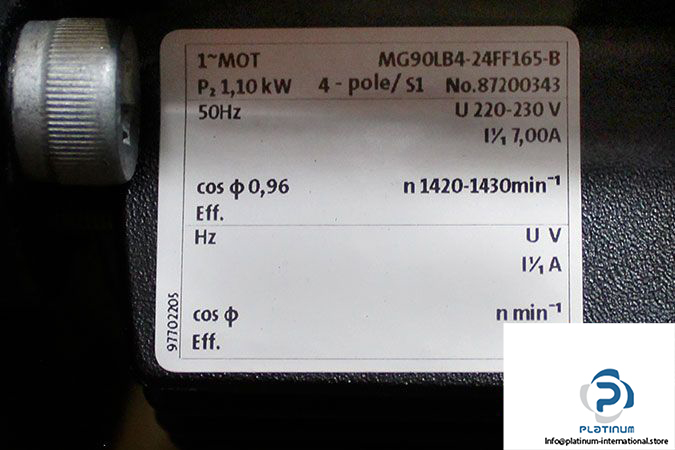

Attached AC Motor (GRUNDFOS MG90LB4-24FF165-B)
| Pumped Liquid | Water |
| Liquid Temperature Range | -25 / 120 °C |
| Selected Liquid Temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Pump Speed | 1430 rpm |
| Rated Flow | 26.8 m³/h |
| Rated Head | 9.5 m |
| Impeller Diameter | 180 mm |
| Pump Material | Cast Iron (EN-GJL-250, ASTM Class 35) |
| Ambient Temperature Range | -20 / 55 °C |
| Max Operating Pressure | 16 bar |
| Max Pressure at 120 °C | 16 bar |
| Port-To-Port Length | 475 mm |
| Connection Size | DN 65 |
| Flange Size (Motor) | FF165 |
| Part No. | 87200343 |
| Ref No. | 97702205 |
| Bearings | DE 6305.2Z.C3 / NDE 6205.2Z.C3 |
| Motor Size | 90 |
| Rated Power | 1.1 kW |
| Frequency | 50 Hz |
| Voltage | 220 / 230 V |
| Current | 4.2D / 2.4Y A |
| Power Factor | 0.96 |
| Speed | 1420 / 1430 rpm |
| Efficiency | IE3, 84.1% |
| Poles | 4 |
| Enclosure Class | IP55 |
| Duty | S1 |
| Insulation Class | F |
| Shipping Volume | 0.39 m³ |
